Model
Kenmore 110.92293110
Washer (Kenmore 11092293110)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.92293110Washer (Kenmore 11092293110)
11 diagrams233 parts
Parts Sections (11)
Diagram

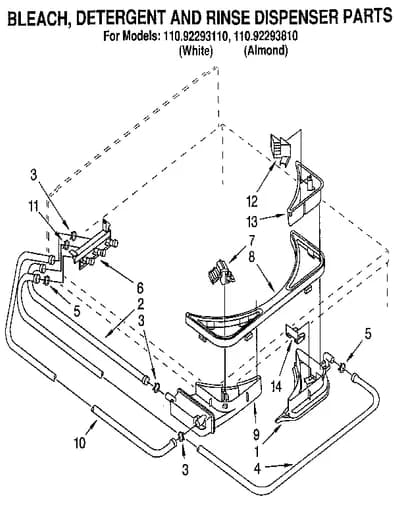

BLEACH, DETERGENT AND RINSE DISPENSER
Parts in BLEACH, DETERGENT AND RINSE DISPENSER
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Washer Detergent Dispenser Reservoir | - |
| 2 | | 64169NLA Washer Dispenser Hose | Discontinued |
| 3 |  | WP596669replaces 370451 Hose Clamp | $2.30 Part Advantage |
| 4 | | 64168NLA Washer Detergent Dispenser Hose | Discontinued |
| 5 | | WP596669replaces 370450 Clamp | $2.30 Part Advantage |
| 6 | | 3348818NLA Connector | Discontinued |
| 7 | | 64147NLA Insert | Discontinued |
| 8 | – | N/P (338471) (ALT.) | - |
| 8A | | 64153NLA Bezel W | Discontinued |
| 8B | – | 64154 Bezel Al | - |
| 9 | – | 3348812 Reservoir | - |
| 10 | | Washer Fabric Softener Dispenser Hose | - |
| 12 | – | 3350127 Insert | - |
| 13 | – | 3350126 Reservoir | - |
| 14 | | 387691NLA Diverter | Discontinued |
