Model
Kenmore 110.92595200
Washer (Kenmore 11092595200)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.92595200Washer (Kenmore 11092595200)
11 diagrams259 parts
Parts Sections (11)
Diagram

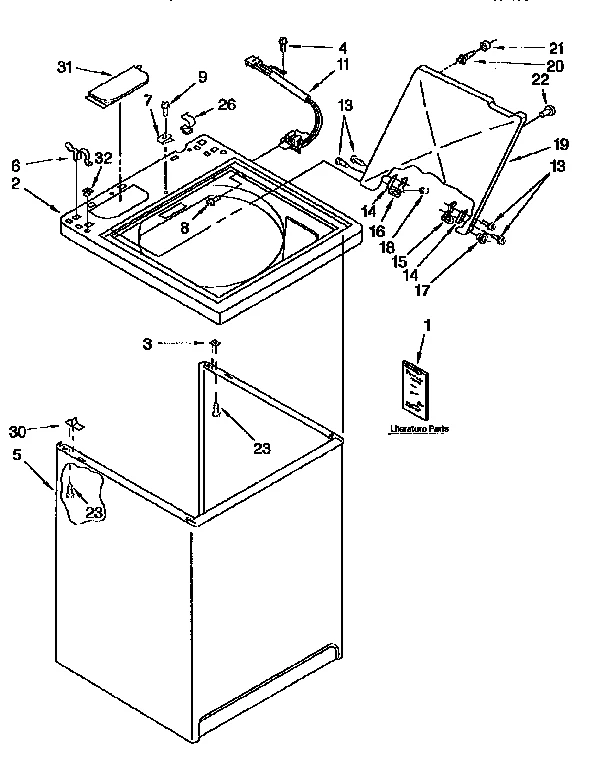

TOP AND CABINET
Parts in TOP AND CABINET
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | LIT3349103 Laundry Guide | - |
| 1A | – | LIT3361038 Installation Instructions | - |
| 1B | – | LIT3360601 Operating Instructions | - |
| 1C | – | LIT3363893 Installation Instructions | - |
| 1D | – | LIT3948520 Energy Guide | - |
| 1E | – | LIT3361275 Parts List | - |
| 1F |  | LIT4314044NLA Repair Manual | Discontinued |
| 2 | – | 3360681 Top W P | - |
| 2A | – | 3360682 Top Al P | - |
| 2B | – | 64187 Top Bl P | - |
| 3 |  | WP62750replaces 62750 Washer Cabinet Spacer | $3.38 Part Advantage |
| 4 |  | WP681414replaces 343641 SCREW | $2.30 Part Advantage |
| 5 |  | Washer Cabinet (White) | - |
| 5A | | Cabnt Al | - |
| 5B | – | 388127 Cabnt Bl | - |
| 6 |  | WP62780replaces 62780 Washer Cabinet Clip | $3.55 Part Advantage |
| 7 | | Clip | - |
| 8 |  | WP3356311replaces 3356311 Laundry Appliance Screw | $2.30 Part Advantage |
| 9 |  | WP355214replaces 3393918 Screw | $2.30 Part Advantage |
| 11 |  | 285671replaces 3352630 Switch | $21.66 Part Advantage |
| 13 |  | WPW10119828replaces 3351355 Screw | $2.41 Part Advantage |
| 14 |  | WP21097replaces 21097 Washer Lid Hinge Bracket | $3.38 Part Advantage |
| 15 |  | WP54583replaces 54583 Washer Lid Hinge, Rear | $8.57 Part Advantage |
| 16 |  | WP54584replaces 54584 Hinge | $11.20 Parts Dr |
| 17 |  | WP21258replaces 21258 Washer Lid Hinge Bearing | $3.18 Part Advantage |
| 18 | | 19119NLA Bumper, Lid Hinge | Discontinued |
| 19 | – | 3360672 Lid W P | - |
| 19A | – | 3360673 Lid Al P | - |
| 19B | – | 3360674 Lid Eby P | - |
| 20 | – | 357141 Strike | - |
| 21 |  | WP354255replaces 354255 Bumper | $2.30 Part Advantage |
| 22 |  | WP9724509replaces 354241 Bumper | $2.41 Part Advantage |
| 23 | | WP681414replaces 384435 Screw | $2.30 Part Advantage |
| 26 |  | WP90016replaces 90016 Clip | $7.43 RepairClinic |
| 30 | – | 388252 Spacer | - |
| 31 | – | 64172 Hose Cover | - |
| 32 |  | WP357213replaces 357213 Nut | $5.95 ApplianceParts Pro |
