Model
Kenmore 110.92599200
Washer (Kenmore 11092599200)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
110.92599200Washer (Kenmore 11092599200)
11 diagrams262 parts
Parts Sections (11)
Diagram

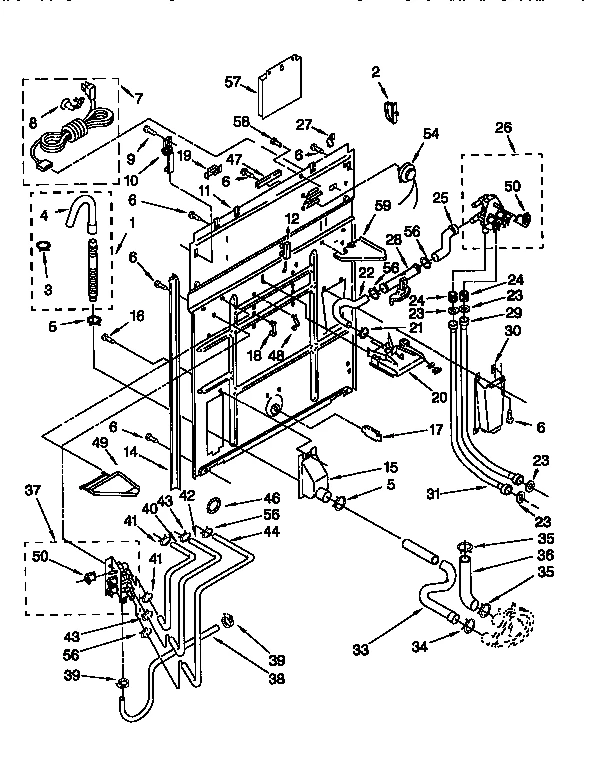

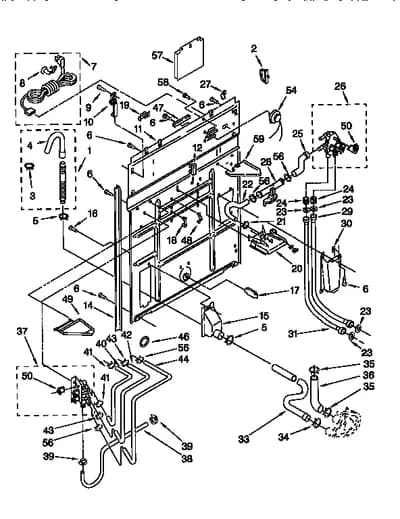

REAR PANEL
Parts in REAR PANEL
58 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 285664replaces 661575 Drain Hose | $16.76 Part Advantage |
| 1A |  | 285666replaces 661577 Drain Hose | $31.25 Parts Dr |
| 1B |  | 285702replaces 3357090 Drain Hose | $35.09 RepairClinic |
| 2 | – | 3352944 Harness Clip | - |
| 3 |  | WP3357331replaces 3357331 Hose Clamp | $9.57 ApplianceParts Pro |
| 4 |  | WP3357027replaces 3357027 Washer Drain Hose Nozzle | $29.33 Part Advantage |
| 5 |  | WP356138replaces 356138 Hose Clamp | $3.38 Part Advantage |
| 6 |  | WP3351614replaces 90864 Screw | $3.62 Parts Dr |
| 7 |  | W10820044replaces 3948063 Power Cord | $63.13 Parts Dr |
| 8 |  | W11733005replaces 63848 Washer Power Cord Strain Relief | - |
| 9 |  | WP308685replaces 3357011 Screw | $2.30 Part Advantage |
| 10 | | 387402NLA Hinge Panel | Discontinued |
| 11 | – | 3354585 Rear Panel | - |
| 12 |  | WP389379replaces 389379 Washer Harness Retainer Clip | $5.00 RepairClinic |
| 14 |  | WP62747replaces 62747 Pad Panel | - |
| 15 |  | WPW10358149replaces 3355497 Connector | $13.44 Part Advantage |
| 16 |  | WP3390631replaces 62863 Screw | $2.30 Part Advantage |
| 17 |  | WP8519200replaces 63290 Support | $12.39 RepairClinic |
| 18 | | Washer Wire Harness Retainer | - |
| 19 | | Clip | - |
| 20 |  | WP3360977replaces 387606 Break | $22.28 Part Advantage |
| 21 |  | WP596669replaces 371503 Clamp | $2.30 Part Advantage |
| 22 | | Hose-etc | - |
| 23 |  | WP16123replaces 16123 Washing Machine Washer | $2.30 Part Advantage |
| 24 |  | WP96160replaces 96160 Filter Screen | $4.36 Part Advantage |
| 25 |  | WP3349365replaces 3349365 Washer Temperature Sensor Hose | $6.57 Part Advantage |
| 26 | | 3357901NLA Washer Water Inlet Valve | Discontinued |
| 27 |  | 8528351replaces 3347812 Harness Clip | - |
| 28 | | Washer Water Temperature Sensor | - |
| 29 |  | WP76314replaces 387871 Hose | $34.75 ApplianceParts Pro |
| 30 | – | 64219 Bracket | - |
| 31 |  | WP89503replaces 3354858 Inlet Hose | $4.59 Part Advantage |
| 33 |  | WP3352515replaces 3359816 Pump Hose | - |
| 34 |  | WP285655replaces 660628 Hose Clamp | $3.38 Part Advantage |
| 34A | | WP285655replaces 272858 Hose Clamp | $3.38 Part Advantage |
| 34B | | WP285655replaces 370447 Clamp | $3.38 Part Advantage |
| 34C | | WP285655replaces 353097 Clamp | $3.38 Part Advantage |
| 35 | | WP371502replaces 371502 Hose Clamp | - |
| 36 |  | 285871replaces 62731 Hose | $7.56 Amazon |
| 37 | | 64164NLA Washer Inlet Valve | Discontinued |
| 38 | | 64171NLA Dispenser Hose | Discontinued |
| 39 | | WP596669replaces 388000 Hose Clamp | $2.30 Part Advantage |
| 40 | | 64165NLA Dispenser Hose | Discontinued |
| 42 | | 64166NLA Dispenser Hose | Discontinued |
| 43 | | WP596669replaces 371506 Hose Clamp | $2.30 Part Advantage |
| 44 | | 64167NLA Dispenser Hose | Discontinued |
| 46 | – | 387999 O-Ring | - |
| 47 | | Protector | Discontinued |
| 48 | – | 64162 Retainer | - |
| 49 | | 64173NLA Shield Valve | Discontinued |
| 50 | – | 389252 Valve Coil | - |
| 54 | – | 387973 Speaker | - |
| 56 | | WP596669replaces 370451 Hose Clamp | $2.30 Part Advantage |
| 56A | | WP596669replaces 272846 Hose Clamp | $2.30 Part Advantage |
| 56B | | WP596669replaces 353367 Hose Clamp | $2.30 Part Advantage |
| 57 | – | 3352312 Rack | - |
| 58 | – | 3389802 Fastener | - |
| 59 |  | 8539874replaces 3348424 Shield Valve | - |
