Kenmore 596.50003100
Refrigerator (Kenmore 59650003100)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.50003100Refrigerator (Kenmore 59650003100)
12 diagrams318 parts

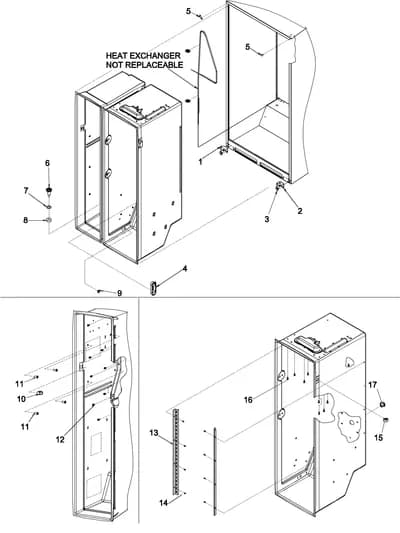

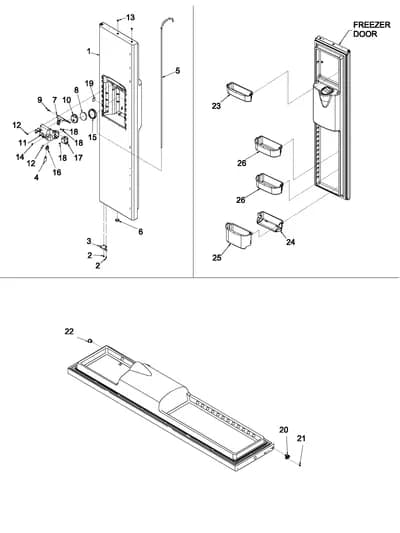

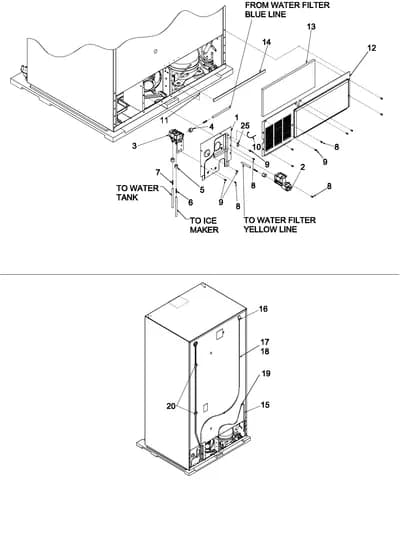

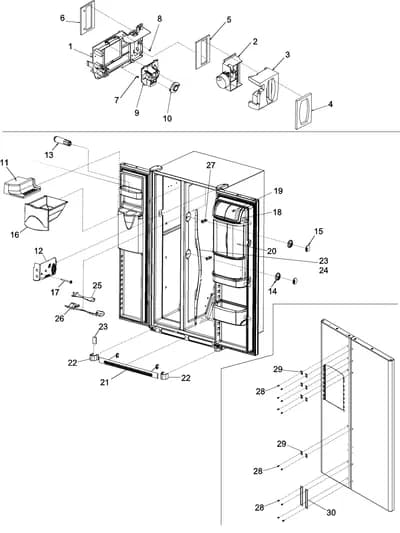

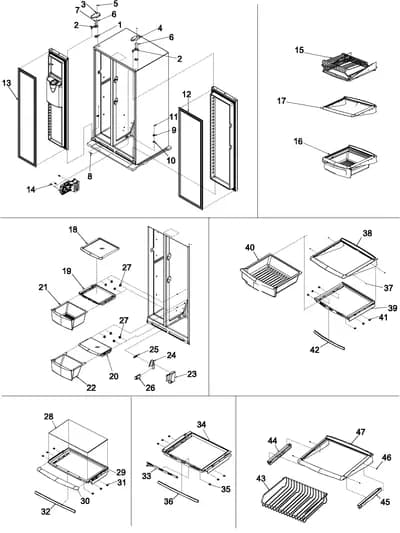

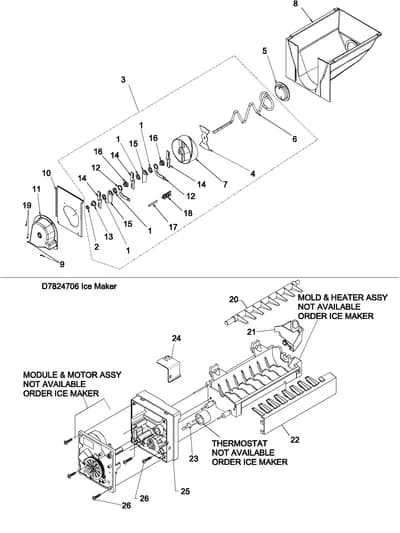

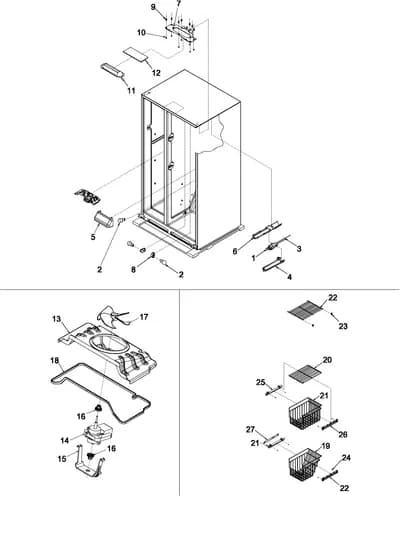

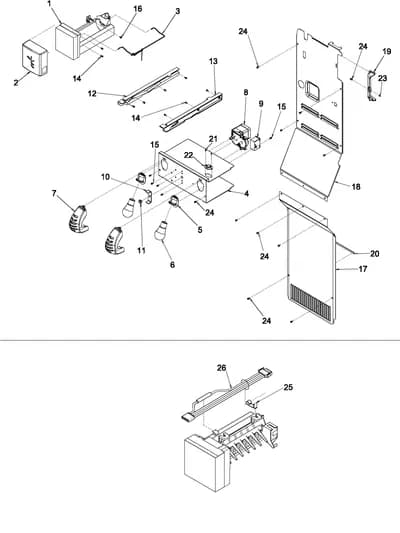

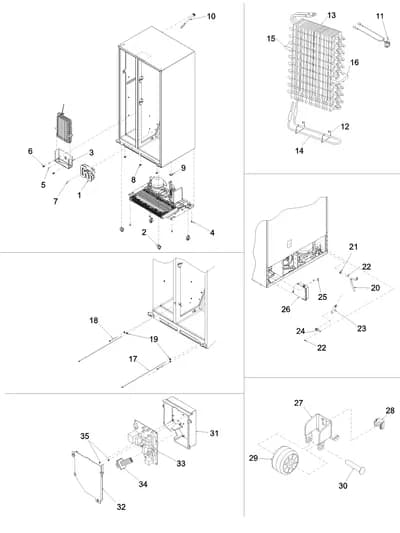

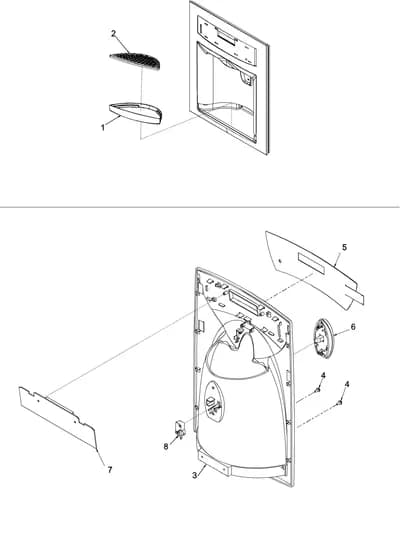

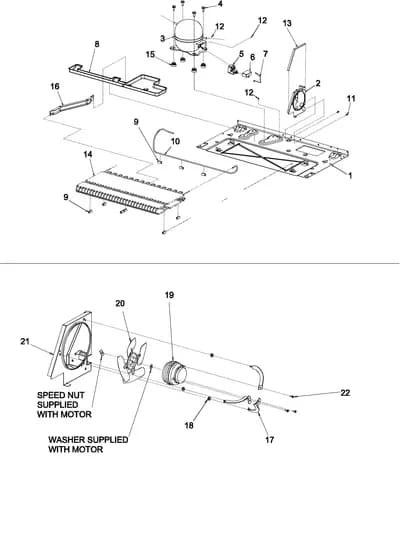

Parts Sections (12)
Diagram

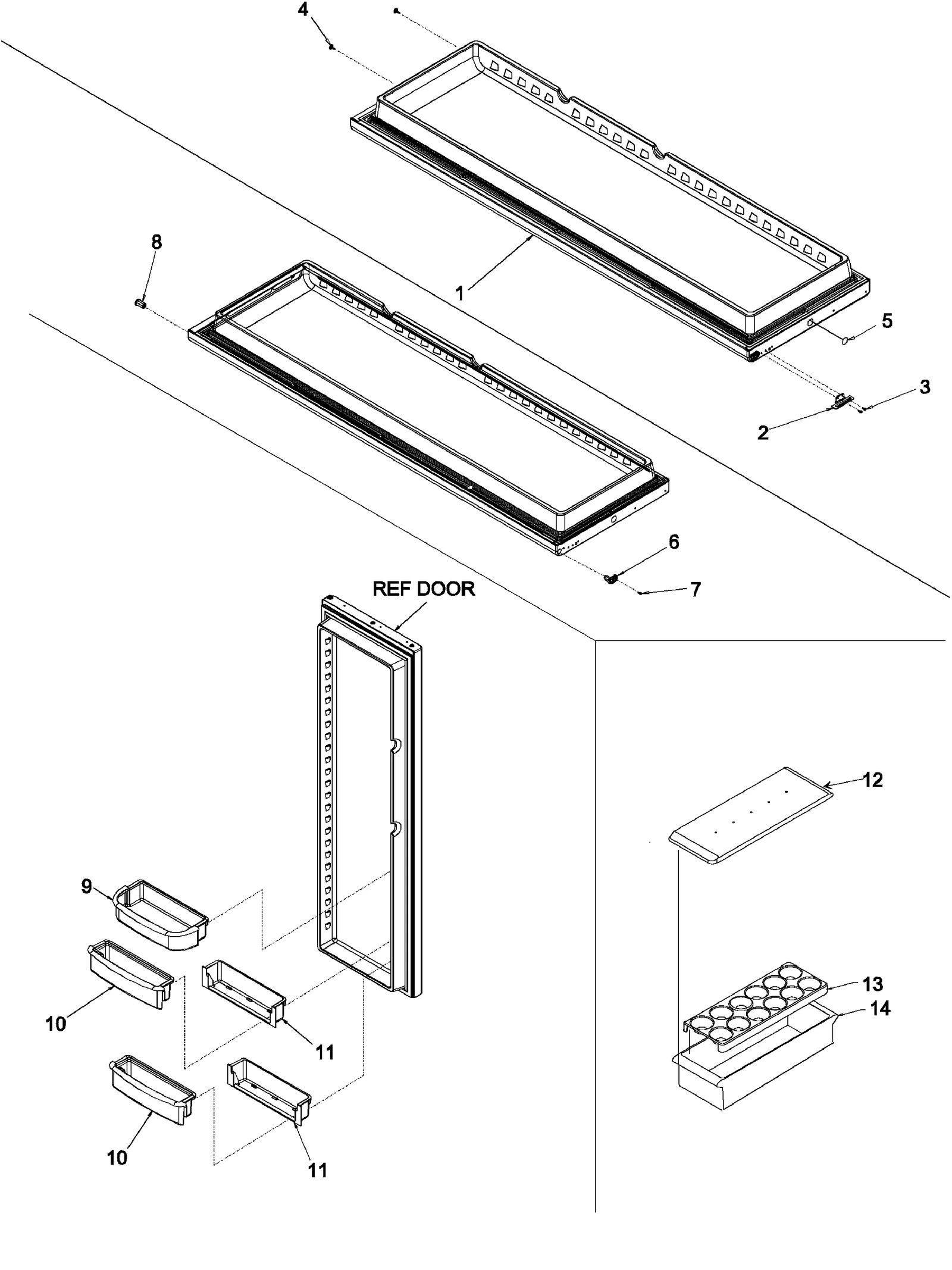

REFRIGERATOR DOOR
Parts in REFRIGERATOR DOOR
29 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 12584701BQ Refrigerator Door | - |
| 1A | – | 12584701CQ Refrigerator Door | - |
| 1B | – | 12584701WQ Ff Wht Door | - |
| 1C | – | 12584706SQ Stainless Door | - |
| 2 |  | Refrigerator Door Stop | - |
| 2A | – | 12636401C Refrigerator Door Stop | - |
| 2B | – | 12636401W Refrigerator Door Stop | - |
| 3 |  | WP98165replaces M0211018 Screw | $7.47 PartSelect |
| 4 | – | M0311604 Refrigerator Plug | - |
| 4A | – | M0311605 Refrigerator Plug | - |
| 4B | – | M0311606 Refrigerator Button Plug | - |
| 4C | – | M0311607 Refrigerator Button Plug | - |
| 5 | – | A3080001 Button Plug | - |
| 6 |  | R0181181replaces 12113202 Closure-w | $2.76 Part Advantage |
| 6A | | R0181181replaces 12113204 Closure | $2.76 Part Advantage |
| 7 |  | WP8281227replaces M0220432 Refrigerator Screw | $4.19 Part Advantage |
| 8 | – | 10961001 Refrigerator Door Bushing | - |
| 8A | | 10961002NLA Bushing Do | Discontinued |
| 9 |  | WP12556602replaces 12556602 Refrigerator Bin | $63.64 PartSelect |
| 10 | – | 12569702 Refrigerator Bucket | - |
| 11 | – | 12557801 Tilt Frame | - |
| 12 | | Refrigerator Lid | - |
| 13 | | 10436506NLA Refrigerator Tray | Discontinued |
| 14 | – | 10423131 Eggbin | - |
| 15 |  | W11033771replaces 10244904 Refrigerator Coupling | - |
| 16 |  | 8003RPreplaces R0131235 Refrigerator Installation Kit | $21.11 Part Advantage |
| 17 | – | 12575017 Refrigerator Technical Sheet | - |
| 18 | – | 12653821 Tag, 5000* E | - |
| 19 | – | 67003291 Refrigerator Owner's Manual | - |
