Kenmore 596.50004100
Refrigerator (Kenmore 59650004100)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.50004100Refrigerator (Kenmore 59650004100)
12 diagrams318 parts

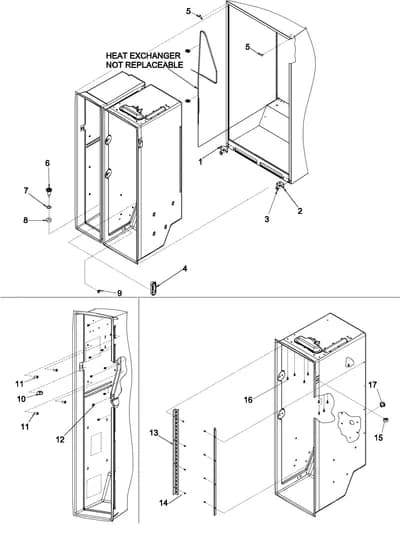

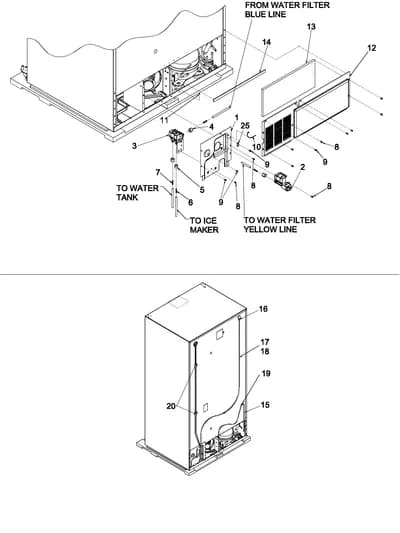

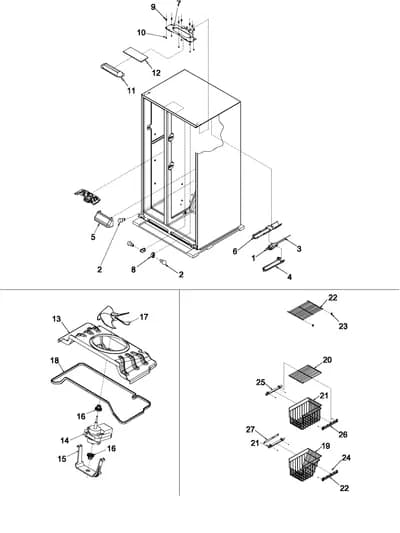

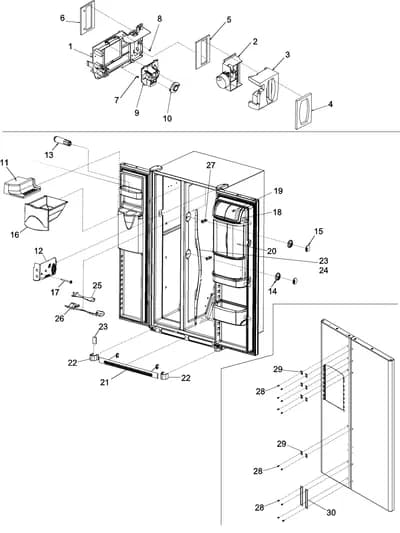

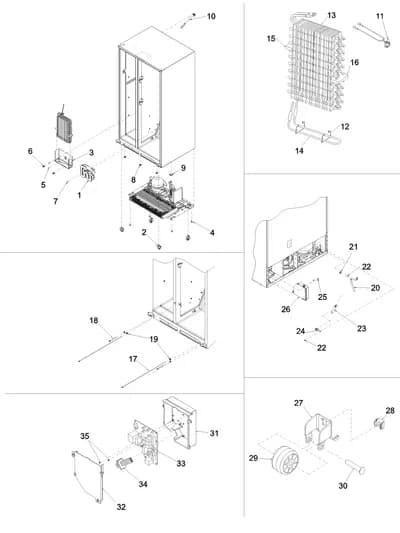

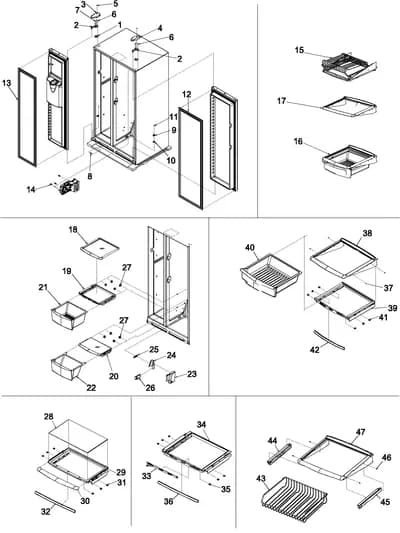

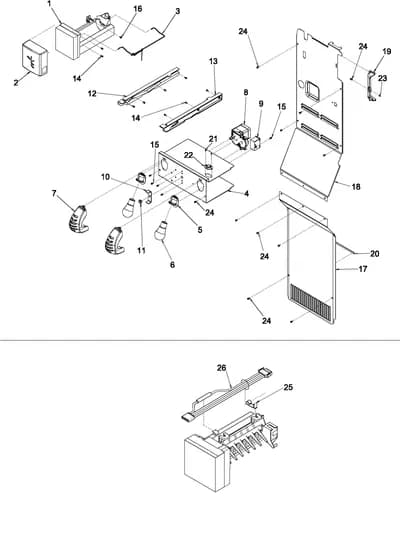

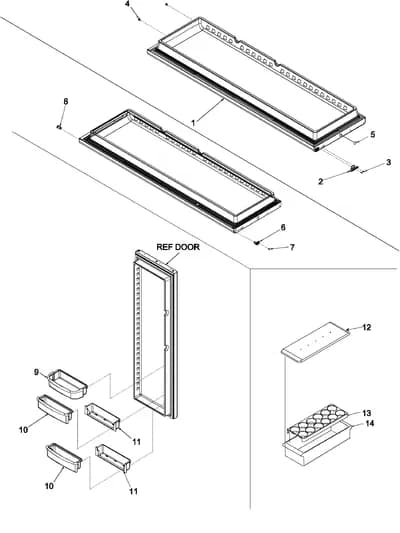

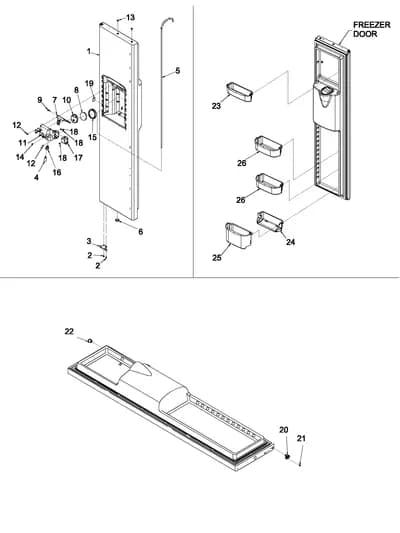

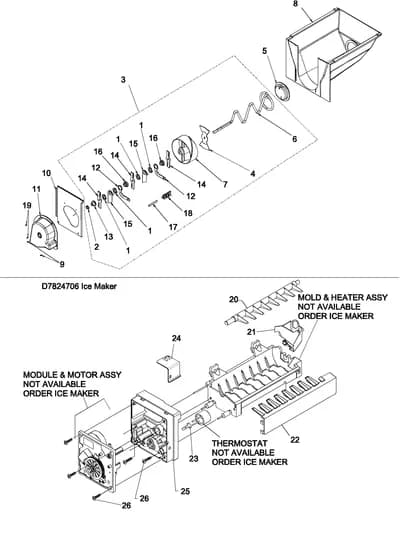

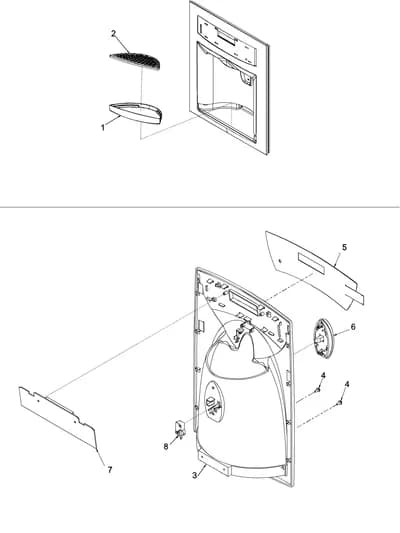

Parts Sections (12)
Diagram

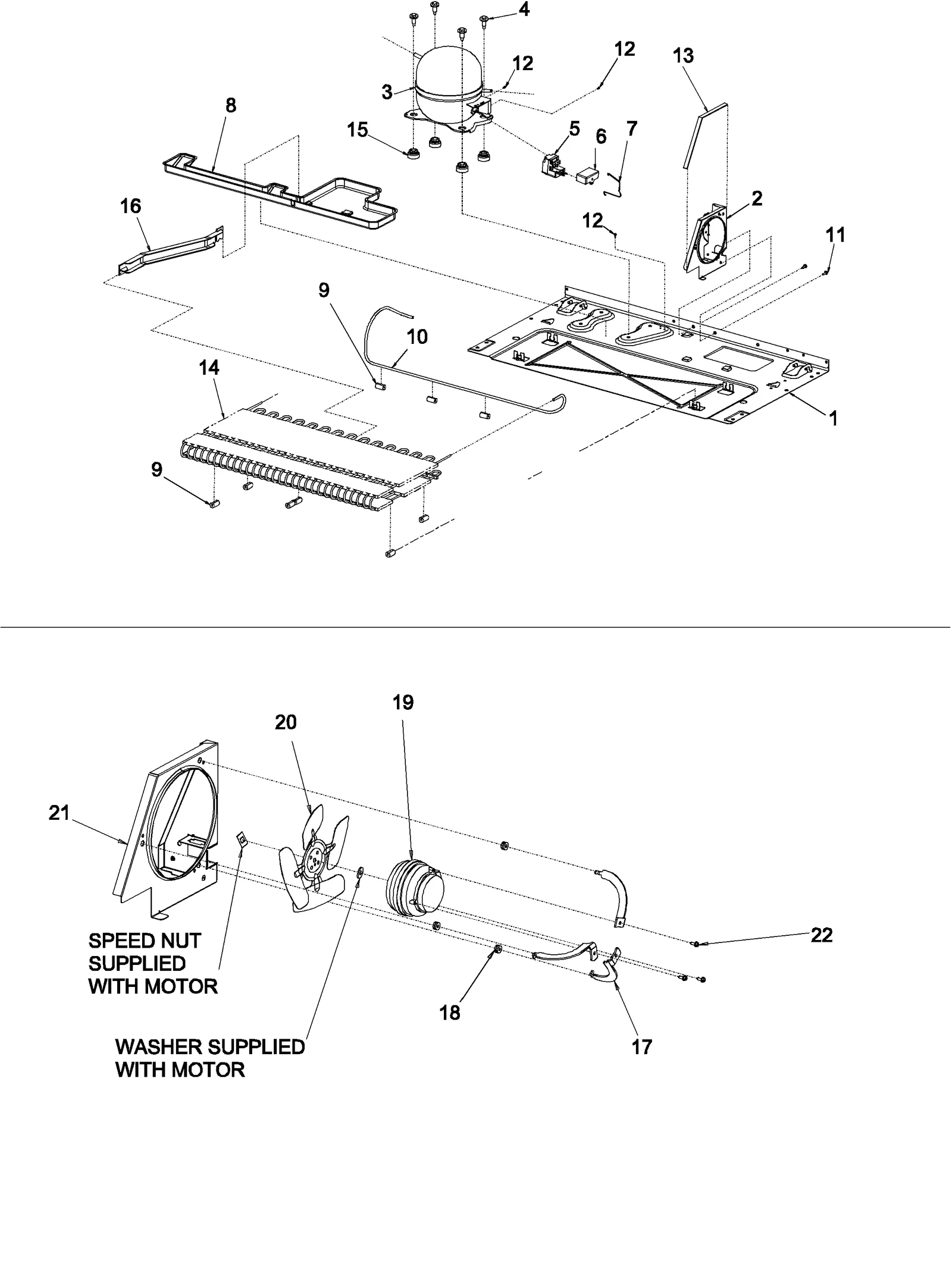

MACHINE COMPARTMENT
Parts in MACHINE COMPARTMENT
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 12457103 Basepan, Mc | - |
| 2 | – | 12687101 Two Way Shroud | - |

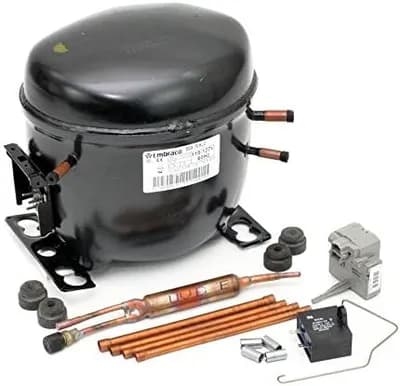

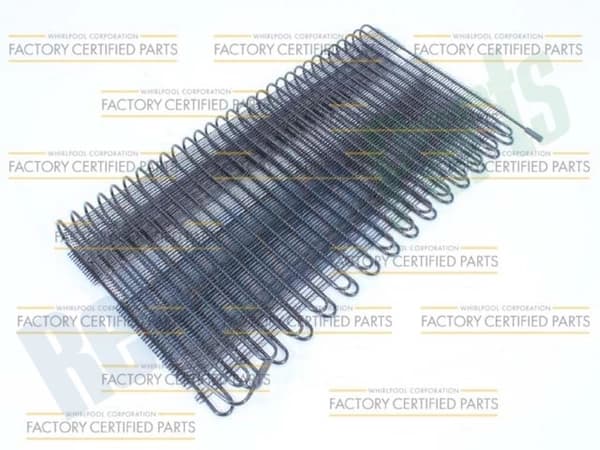

| 3 |  | W10160407replaces 12049717 Refrigerator Compressor | $295.75 Part Advantage |
| 4 | – | M0221523 Refrigerator Compressor Mounting Screw | - |
| 5 |  | WP12555902replaces 12555902 Refrigerator Overload | $76.39 Part Advantage |
| 6 |  | WP65889-4replaces C8931612 Refrigerator Capacitor | $37.26 Part Advantage |
| 7 | – | 12576801 Refrigerator Strap | - |
| 8 | – | 12619101 Refrigerator Drain Pan | - |
| 9 |  | 67005680replaces 12578601 Grommet Control | $14.56 ApplianceParts Pro |
| 10 |  | 12588701QNLA Refrigerator Discharge Tube | Discontinued |
| 11 |  | 67006425replaces M0238616 Refrigerator Screw | $2.30 Part Advantage |
| 12 | | 12992301replaces M0231604 Refrigerator Screw | - |
| 13 |  | WP854334replaces A3189388 Gasket Condenser | - |
| 14 |  | WP67006131replaces 12560503ED Refrigerator Condenser | $149.58 Parts Dr |
| 15 |  | WPW10169124replaces 10835901 Refrigerator Grommet | $3.38 Part Advantage |
| 16 | – | 12625501 Divider, 2 W | - |
| 17 | – | 12578801 Refrigerator Control Bracket | - |
| 18 | – | 12578701 Refrigerator Grommet Fan | - |
| 19 |  | 833697replaces 10884507 Condenser Motor | $37.06 Part Advantage |
| 20 |  | WP12587601replaces 12587601 Refrigerator Fan Blade | $58.54 Parts Dr |
| 23 | – | 12669101 Harness, Mc | - |
