Model
Kenmore 596.51679100
26" Side-By-Side Refrigerator (Kenmore 59651679100)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.5167910026" Side-By-Side Refrigerator (Kenmore 59651679100)
12 diagrams296 parts
Parts Sections (12)
Diagram

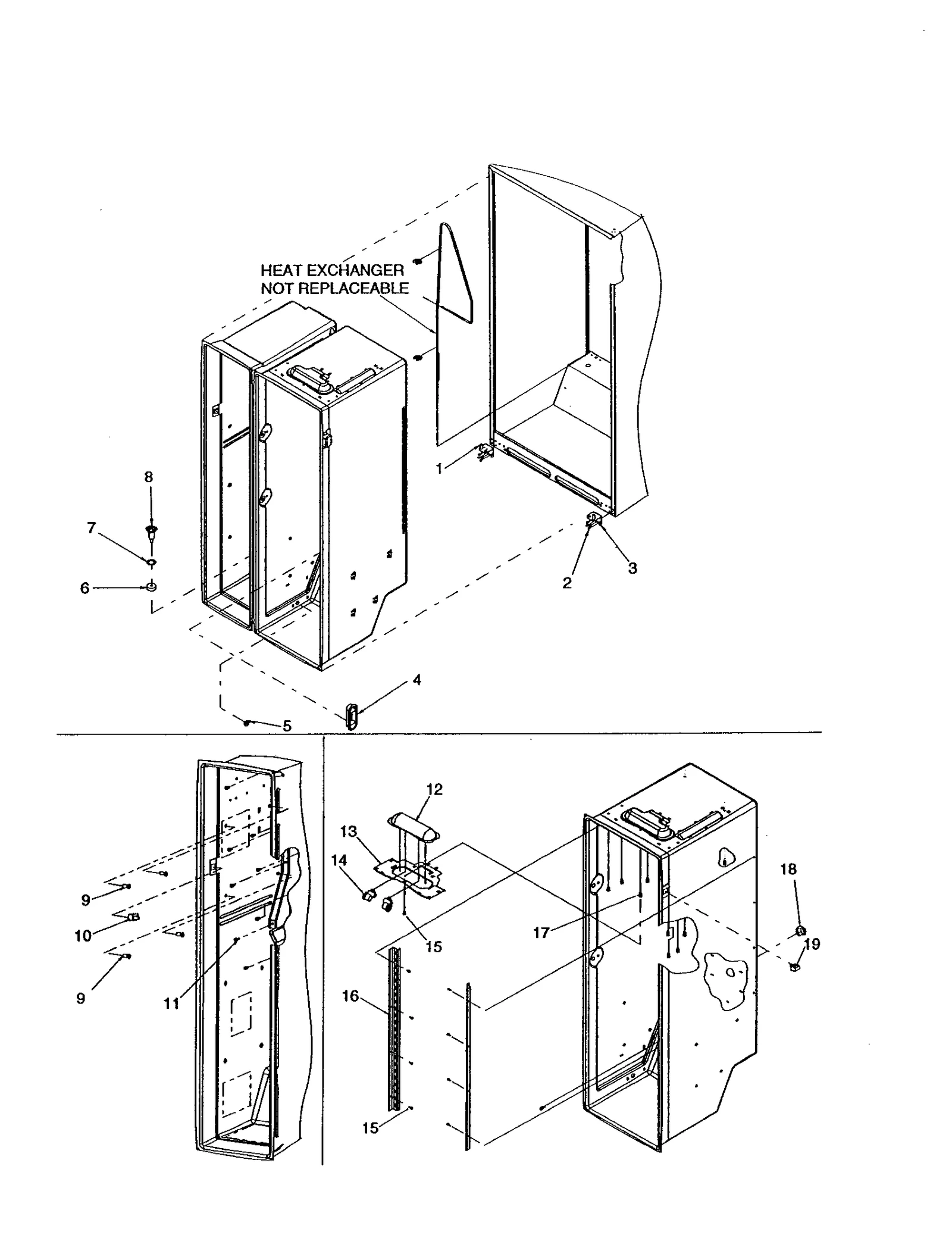

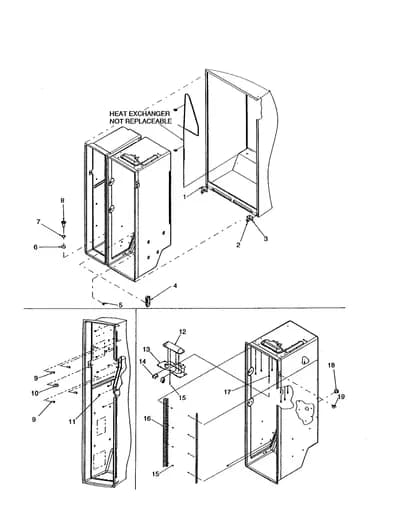

CABINET
Parts in CABINET
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 12570905ED Hinge, Lh Bo | - |
| 1A |  | Hinge, Lh Bo | - |
| 2 | – | 12567101 Plug, Air Tu | - |
| 2A |  | WP67006715replaces M0241608 Refrigerator Hinge | - |
| 3 | – | 12570906ED Refrigerator Hinge | - |
| 3A | – | 12570906WD Right Bottom Hinge | - |
| 4 | – | 12634801 Return Grille | - |
| 6 |  | WPB8381501replaces B8381501 Gasket Drain Tube | $3.38 Part Advantage |
| 7 |  | WPM0500703replaces M0500703 Refrigerator O-Ring Seal | $6.15 Parts Dr |
| 8 | | Funnel, Drai | - |
| 9 | – | C8973701 Refrigerator Freezer Shelf Plug | - |
| 10 |  | W11396033replaces 12466103 Refrigerator Light Switch | $14.41 Part Advantage |
| 11 | – | M0580003 Grommet | - |
| 12 | – | 12570003 Housing | - |
| 13 | – | 12666201 PLATE, LIGHT BACKING | - |
| 14 | – | C8973407 SOCKET-LIGHT (QTY 2) | - |
| 15 |  | 67006425replaces M0238616 Refrigerator Screw | $2.30 Part Advantage |
| 16 | – | 12614211 Support Ladder | - |
| 17 | | M0580007NLA Grommet | Discontinued |
| 18 |  | W11447232replaces 12570701 Bulb Replcmt | $10.11 Parts Dr |
| 19 |  | W11291138replaces 12466104 Refrigerator Rocker Switch | $12.94 Part Advantage |
