Model
Kenmore 596.58637890
Side-By-Side Refrigerator (Kenmore 59658637890)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.58637890Side-By-Side Refrigerator (Kenmore 59658637890)
12 diagrams282 parts
Parts Sections (12)
Diagram

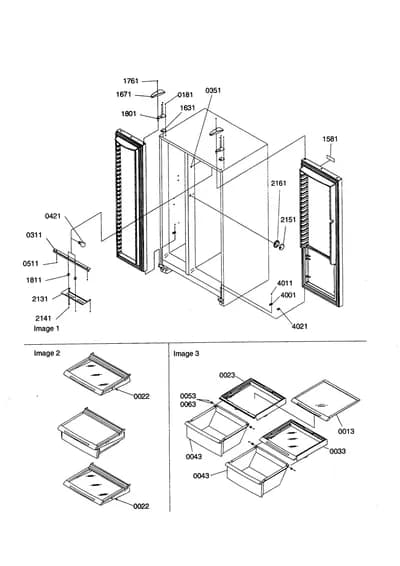

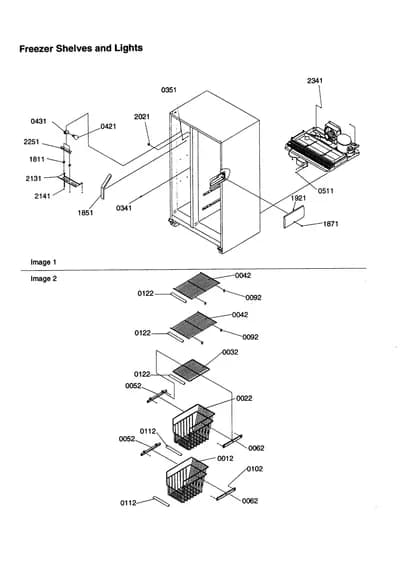

LIGHTS/HINGES/SHELVING
Parts in LIGHTS/HINGES/SHELVING
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 13 | – | 10783118 Refrigerator Crisper Shelf | - |
| 22 | – | 10883323 Refrigerator Shelf | - |
| 23 | – | 10882801 Refrigerator Crisper Frame | - |
| 33 | – | 10882814 Refrigerator Crisper Frame | - |
| 43 | – | 10783201 Refrigerator Pan | - |
| 53 | – | 10481001 Refrigerator Roller | - |
| 63 |  | 67006692replaces M0238105 Refrigerator Screw | $3.06 RepairClinic |
| 181 |  | R9800670replaces M0238731 Refrigerator Screw | $2.55 Part Advantage |
| 311 | – | 10014716 Shield Lig | - |
| 351 |  | M0580007NLA Grommet | Discontinued |
| 421 |  | 8009replaces A0282803 Refrigerator Lamp, 40-watt, 115 to 125-volt | $7.53 Part Advantage |
| 511 |  | 67006425replaces M0238616 Refrigerator Screw | $2.30 Part Advantage |
| 1581 | – | 12329501 Refrigerator Tag | - |
| 1631 | – | 12428101 Refrigerator Shim | - |
| 1671 | – | 10504011 Refrigerator Hinge | - |
| 1761 |  | WP8281196replaces M0202327 Refrigerator Screw | $9.62 PartSelect |
| 1801 | | Refrigerator Hinge | - |
| 1811 | – | M0270508 Washer | - |
| 2131 | – | 10493302 Cover-fz L | - |
| 2141 | – | M0238846 Refrigerator Screw | - |
| 2151 | – | 10164813 Refrigerator Grille | - |
| 2161 | – | 10164702 Refrigerator Control | - |
| 4001 |  | R0181181replaces 12431302 Refrigerator Closure | $2.76 Part Advantage |
| 4011 |  | W11227370replaces M0220431 Refrigerator Screw | $10.70 Parts Dr |
| 4021 |  | WP67005716replaces 10361806 Refrigerator Shim | $5.00 RepairClinic |
