Model
Kenmore 596.61803100
Bottom-Mount Refrigerator (Kenmore 59661803100)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.61803100Bottom-Mount Refrigerator (Kenmore 59661803100)
12 diagrams287 parts
Parts Sections (12)
Diagram

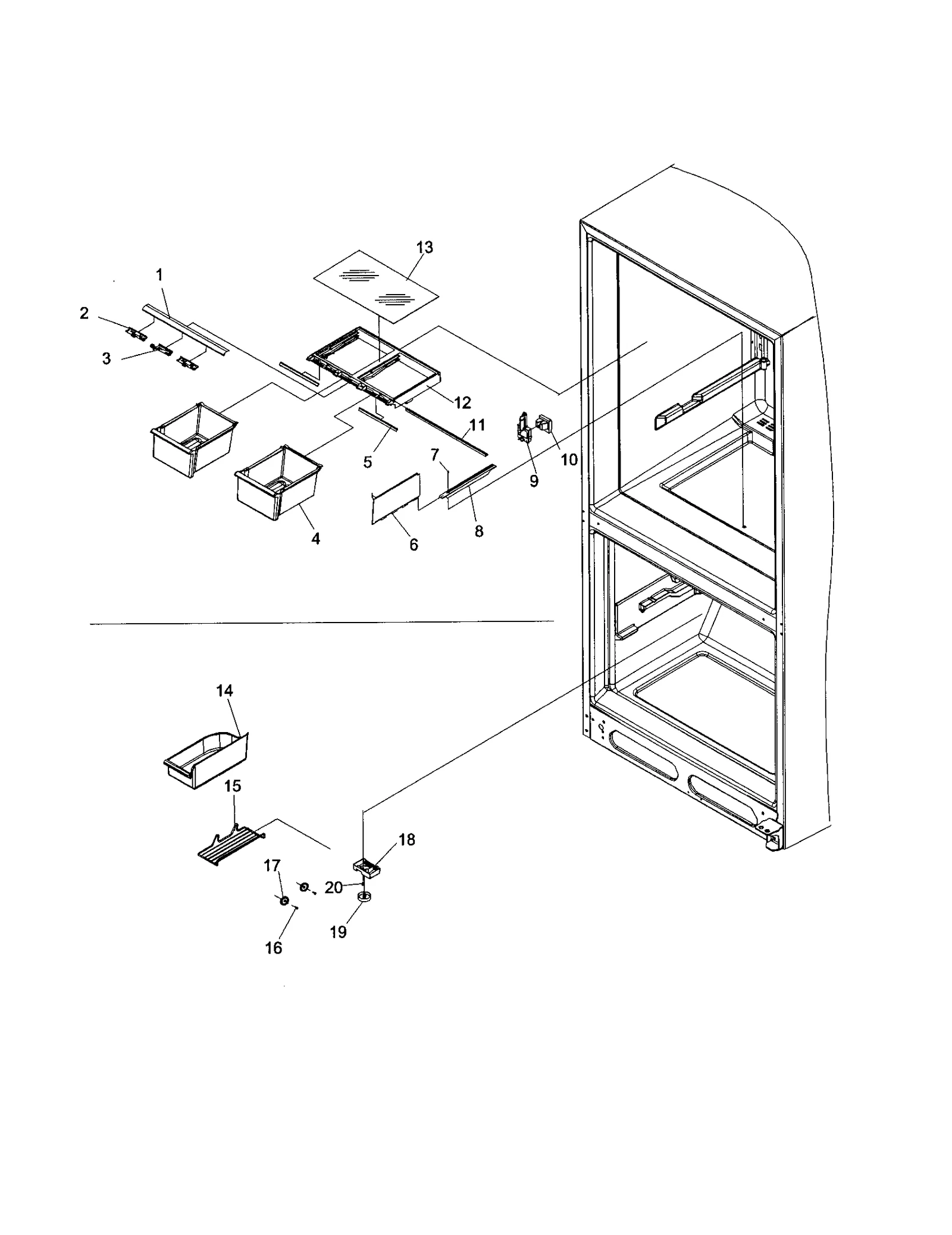

CRISPER ASSEMBLY/FREEZER CONTROL
Parts in CRISPER ASSEMBLY/FREEZER CONTROL
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPM0104106replaces M0104106 Cord Clip | $3.59 Parts Dr |
| 2 |  | Refrigerator Control Knob | - |
| 3 | – | 12227401 Refrigerator Control Knob | - |
| 4 | – | 12226703 Refrigerator Crisper Pan | - |
| 5 | | Refrigerator Seal | - |
| 6 | – | 12226901 Refrigerator Divider | - |
| 7 |  | 67006425replaces M0238616 Refrigerator Screw | $2.30 Part Advantage |
| 8 | | Refrigerator Glide | - |
| 9 | – | 12226601 Refrigerator Cover | - |
| 10 | – | 12227001 Refrigerator Tunnel | - |
| 11 |  | WP12227302WDreplaces 12227301WD Refrigerator Brace | $51.62 ApplianceParts Pro |
| 12 | – | 12227201 Refrigerator Crisper Frame | - |
| 13 | – | 12204804 Refrigerator Glass Shelf | - |
| 14 | – | 12045503 Refrigerator Pan | - |
| 14A | – | 12190801 Refrigerator Pan | - |
| 15 | – | 12228201 Refrigerator Rack | - |
| 16 |  | WP67006908replaces M0230919 Refrigerator Screw | $2.30 Part Advantage |
| 17 |  | WP10972101replaces 10972101 Refrigerator Spacer | - |
| 18 | – | D7878824 Refrigerator Cover | - |
| 19 | – | D7689905 Refrigerator Knob | - |
| 20 | – | M0216531 Refrigerator Screw | - |
