Kenmore 596.61842100
Bottom-Mount Refrigerator (Kenmore 59661842100)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.61842100Bottom-Mount Refrigerator (Kenmore 59661842100)
12 diagrams248 parts

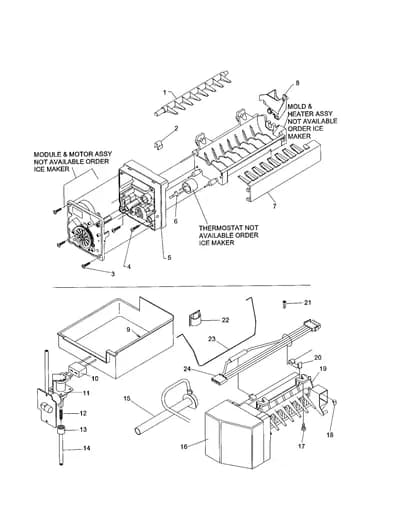

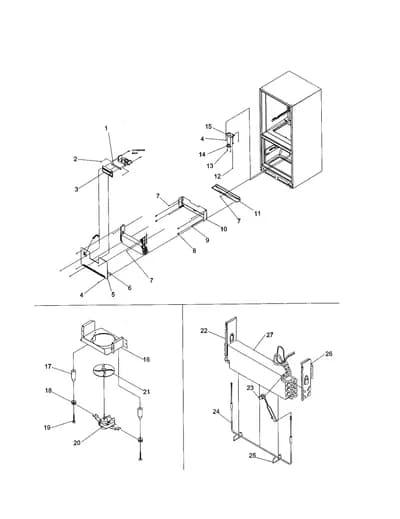

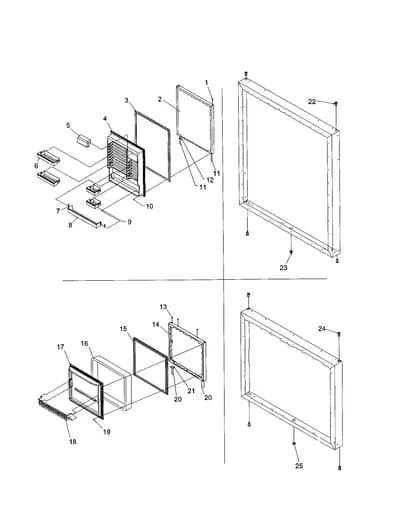

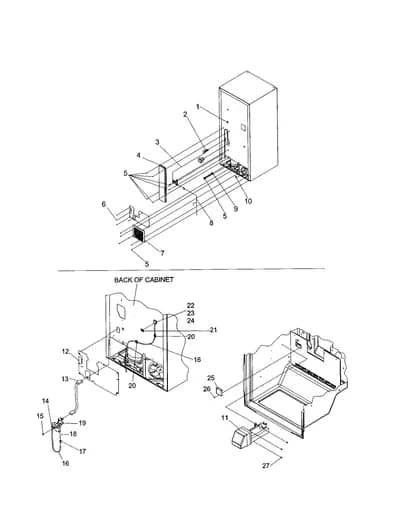

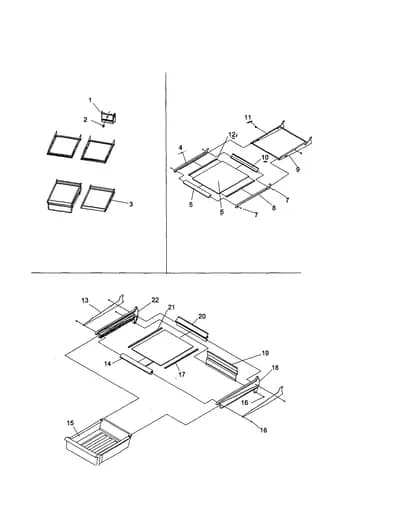

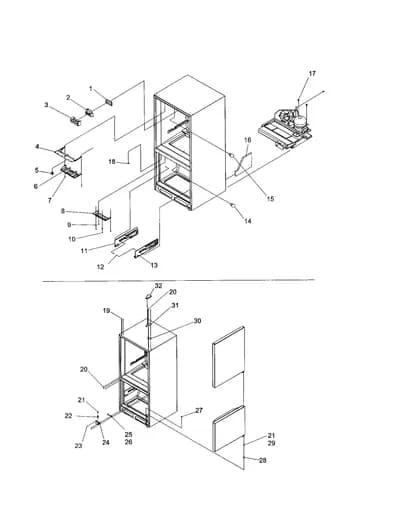

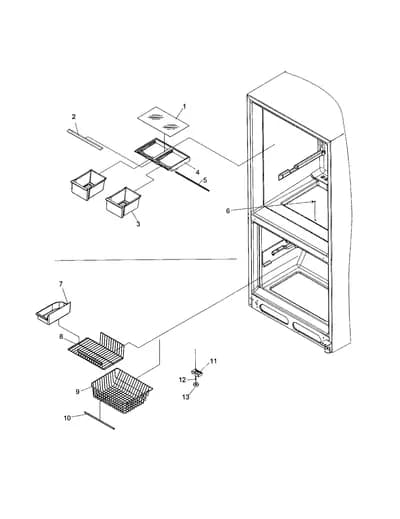

Parts Sections (12)
Diagram

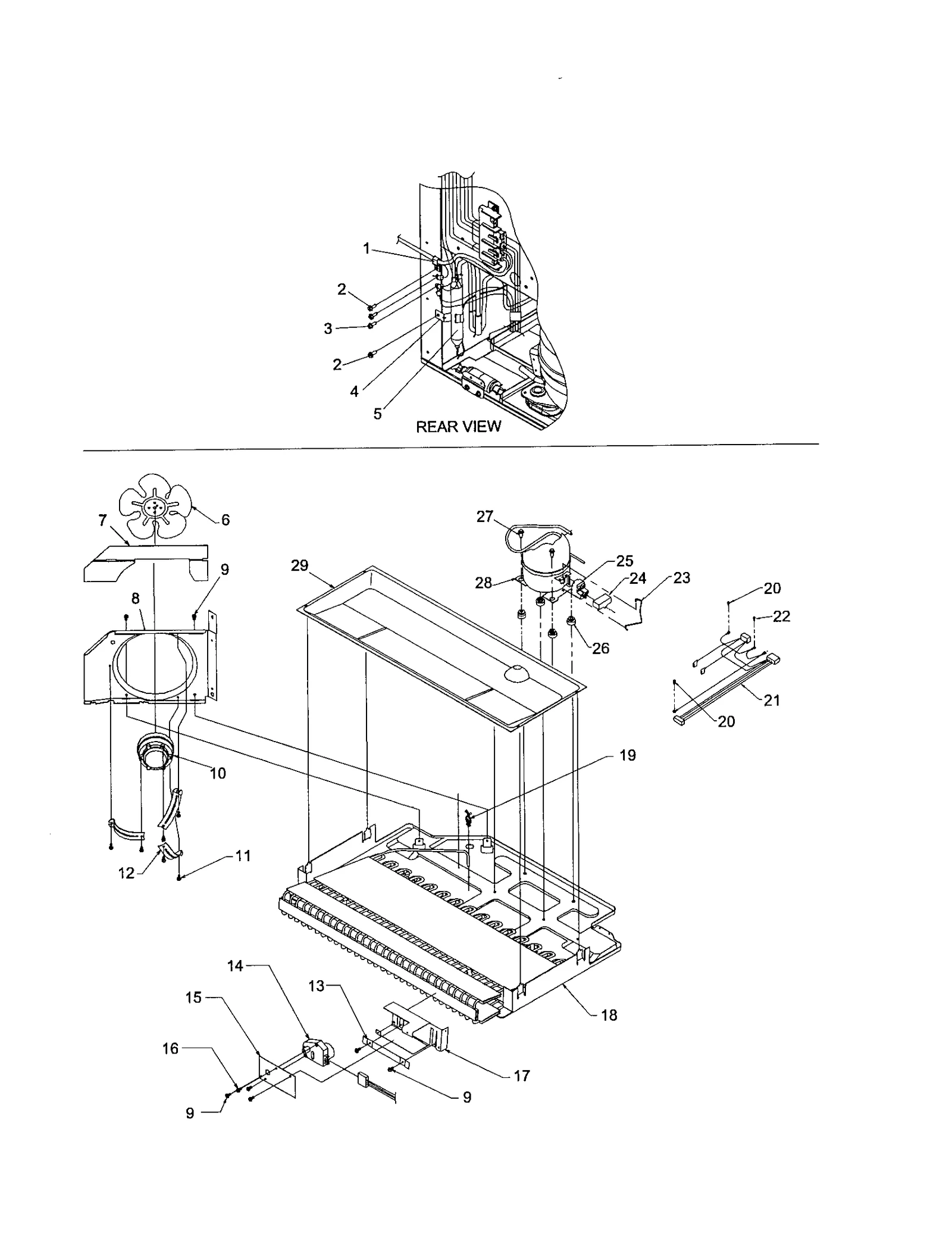

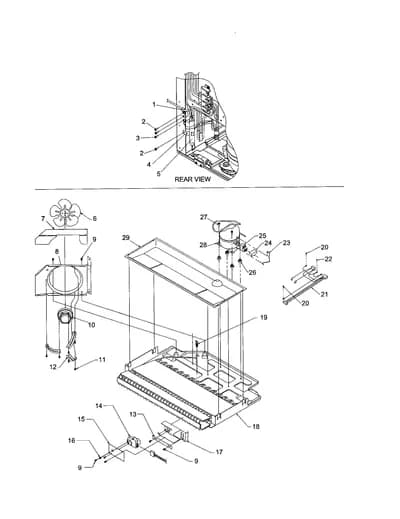

MACHINE COMPARTMENT
Parts in MACHINE COMPARTMENT
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Speed Clamp | - |
| 2 |  | WP489069replaces M0220617 Refrigerator Screw | $2.30 Part Advantage |
| 3 |  | WP489399replaces M0239216 Refrigerator Screw | $2.30 Part Advantage |
| 4 | – | 10547001 Refrigerator Clip | - |
| 5 |  | WPB2150504replaces B2150504 Drier | $81.95 ApplianceParts Pro |
| 6 | – | B5742604 Refrigerator Fan Blade | - |
| 7 | – | 10442702 Refrigerator Gasket | - |
| 8 | – | 10426911 Refrigerator Shroud | - |
| 9 |  | WP90767replaces M0224416 Refrigerator Screw | $2.30 Part Advantage |
| 10 |  | 833697replaces 10884507 Condenser Motor | $37.06 Part Advantage |
| 11 | | M0223816NLA Refrigerator Screw | Discontinued |
| 12 | – | 10582501 Refrigerator Bracket | - |
| 13 | | Washer | - |
| 14 |  | R0131577replaces 10530703 Refrigerator Defrost Timer | $28.52 Parts Dr |
| 15 | – | 12515801 Refrigerator Cover | - |
| 16 | – | M0216705 Refrigerator Screw | - |
| 17 | – | 10503201 Refrigerator Bracket | - |
| 18 | – | 10481224 Pan Condenser | - |
| 19 | – | B5667304 Refrigerator Clip | - |
| 20 | – | M0253916 Screw | - |
| 21 | | 12556101NLA Refrigerator Harness | Discontinued |
| 22 | | WP489399replaces M0232903 Screw | $2.30 Part Advantage |
| 23 | – | 12576801 Refrigerator Strap | - |
| 23A | – | 12583801 Refrigerator Strap | - |
| 24 |  | WP65889-4replaces C8931612 Refrigerator Capacitor | $37.26 Part Advantage |
| 25 | | 12555901NLA Refrigerator Overload | Discontinued |
| 25A |  | WP12555902replaces 12555902 Refrigerator Overload | $76.39 Part Advantage |
| 26 |  | WPW10169124replaces 10835901 Refrigerator Grommet | $3.38 Part Advantage |
| 27 | – | M0221523 Refrigerator Compressor Mounting Screw | - |
| 28 |  | W10309990replaces 12555802 Refrigerator Compressor | $281.51 Part Advantage |
| 28A |  | W10160407replaces 12049717 Refrigerator Compressor | $295.75 Part Advantage |
| 29 | – | 10427404 Refrigerator Drain Pan | - |
