Model
Kenmore 596.61874101
Refrigerator (Kenmore 59661874101)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.61874101Refrigerator (Kenmore 59661874101)
12 diagrams283 parts
Parts Sections (12)
Diagram

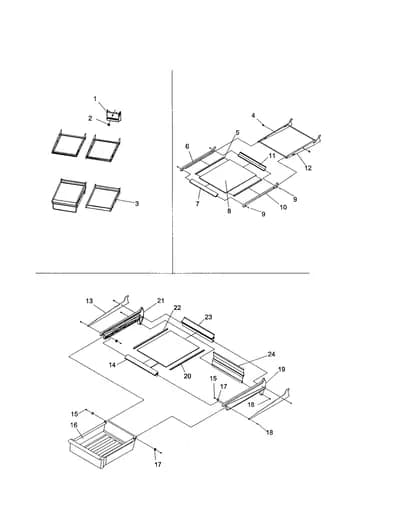

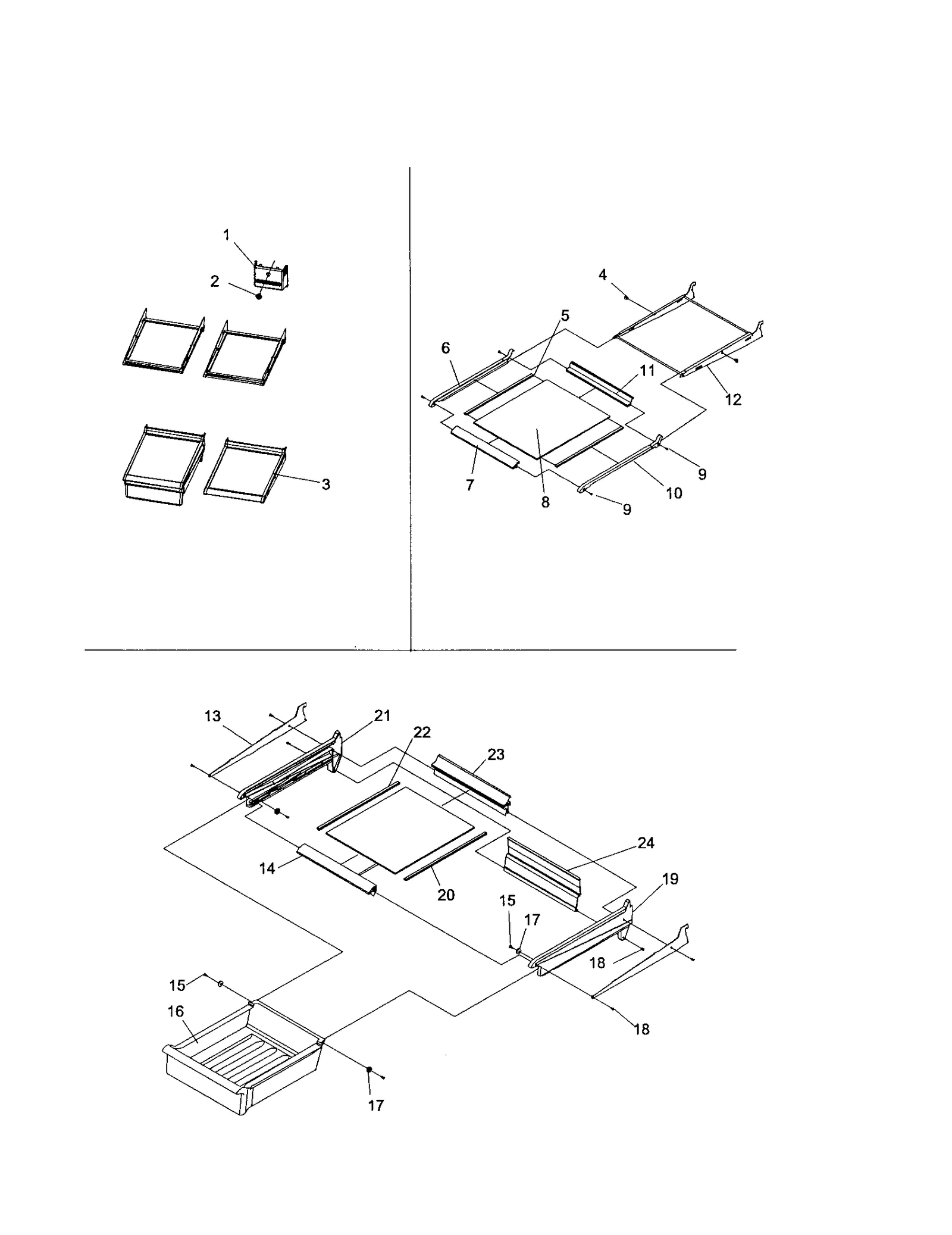

REFRIG. FEATURE, SHELF AND DELI
Parts in REFRIG. FEATURE, SHELF AND DELI
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 12219301 Refrigerator Cover | - |
| 2 | – | D7795826 Knob, White | - |
| 3 | – | 12204901Q Refrigerator Shelf | - |
| 4 | – | 10875101 Shelf Stop | - |
| 5 | – | 10562503 Slide Glide | - |
| 6 | – | 12325201 Refrigerator Glide | - |
| 7 | – | 10436821 Refrigerator Extrusion | - |
| 8 | – | 12204802 Refrigerator Glass | - |
| 9 |  | WPW10348409replaces M0211533 Refrigerator Screw | $2.30 Part Advantage |
| 10 | – | 12325202 Refrigerator Glide | - |
| 11 | – | 12120304 Refrigerator Extrusion | - |
| 12 | – | 12120205 Refrigerator Frame | - |
| 13 | – | 10681401 Refrigerator Rail | - |
| 14 | – | 10436822 Refrigerator Extrusion | - |
| 15 |  | 67006692replaces M0238105 Refrigerator Screw | $3.06 RepairClinic |
| 16 | – | 10417115 Meat Kpr P | - |
| 17 | – | 10481001 Refrigerator Roller | - |
| 20A | – | 10485501 Refrigerator Glide | - |
| 21 | – | 10485601 Refrigerator Glide | - |
| 22 | – | 12204803 Refrigerator Glass Shelf | - |
| 23 | – | 10502203 Refrigerator Extrusion | - |
| 24 | – | 10502504 Refrigerator Extrusion | - |
