Model
Kenmore 596.69142992
21" Bottom-Mount Refrigerator (Kenmore 59669142992)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.6914299221" Bottom-Mount Refrigerator (Kenmore 59669142992)
11 diagrams261 parts
Parts Sections (11)
Diagram

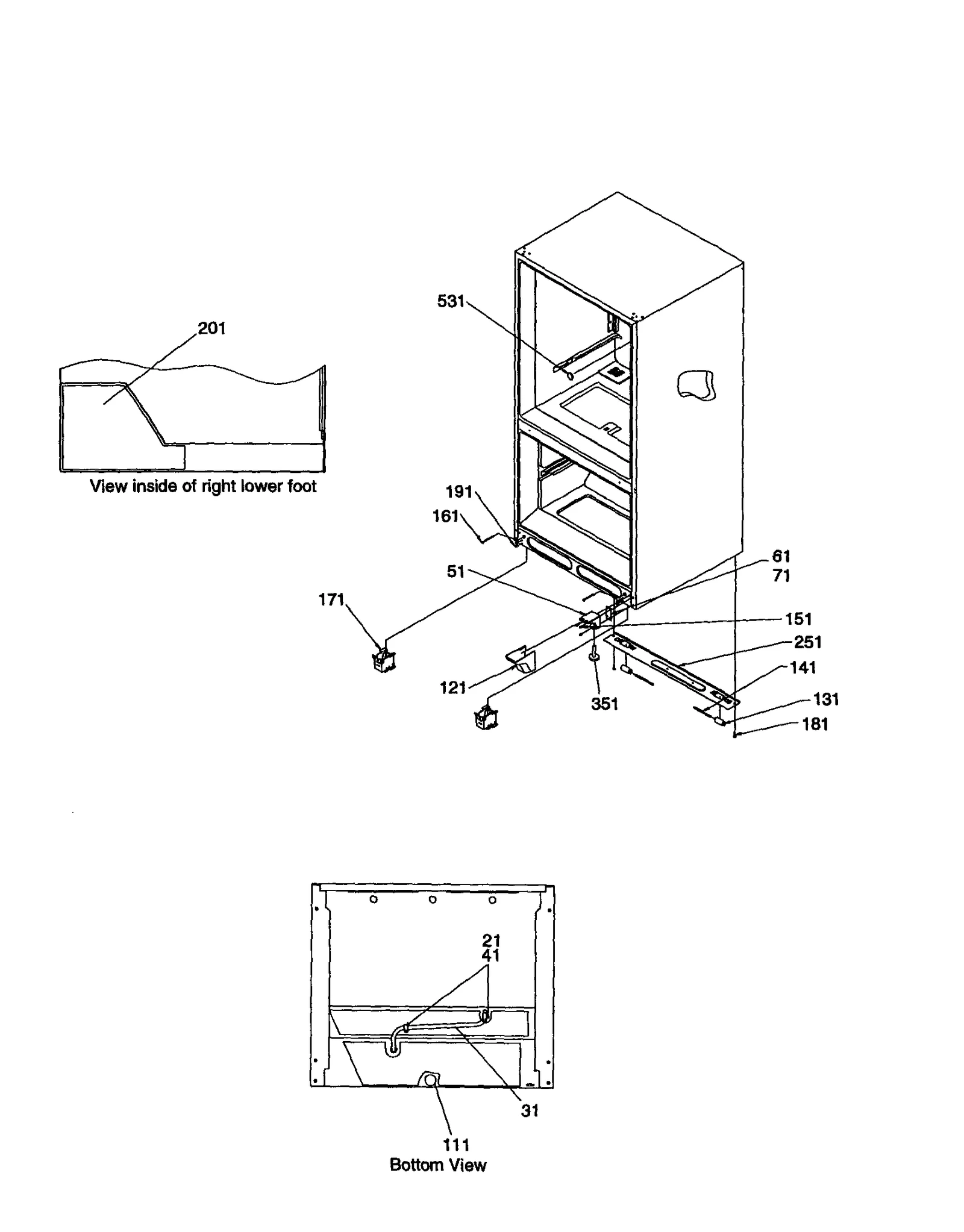

INSULATION AND ROLLER ASSEMBLY
Parts in INSULATION AND ROLLER ASSEMBLY
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 21 |  | W10709801replaces M0227217 Refrigerator Screw | - |
| 31 | | 10513302NLA Refrigerator Drain Tube | Discontinued |
| 41 | – | M0102303 Clamp | - |
| 51 | – | 10585508 Refrigerator Hinge | - |
| 61 | – | 10447903 Refrigerator Shim | - |
| 71 | – | 10447904 Refrigerator Shim | - |
| 111 |  | Imperial Refrigerator Insulation Fill Hole Plug | - |
| 121 | – | 10584806 Refrigerator Hinge Cover | - |
| 121A | – | 10584802 Refrigerator Hinge Cover | - |
| 131 | | 10450701NLA Refrigerator Roller | Discontinued |
| 141 | – | 10450901 Refrigerator Axle | - |
| 151 |  | WP67006715replaces M0241508 Refrigerator Screw | - |
| 161 | – | M0204336 Refrigerator Screw | - |
| 171 | – | 12452601Q Refrigerator Roller Bracket | - |
| 181 | – | M0260242 Refrigerator Screw | - |
| 191 |  | W11573574replaces M0211031 Screw-sm | $8.78 Part Advantage |
| 201 | – | 10663001 Refrigerator Insulation | - |
| 251 | – | 10427112 Refrigerator Cabinet | - |
| 351 |  | W11177593replaces 10354001 Brake Foot | $6.48 Part Advantage |
| 531 | – | M0310342 Refrigerator Plug | - |
