Model
Kenmore 596.69894001
Refrigerator (Kenmore 59669894001)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.69894001Refrigerator (Kenmore 59669894001)
12 diagrams297 parts
Parts Sections (12)
Diagram

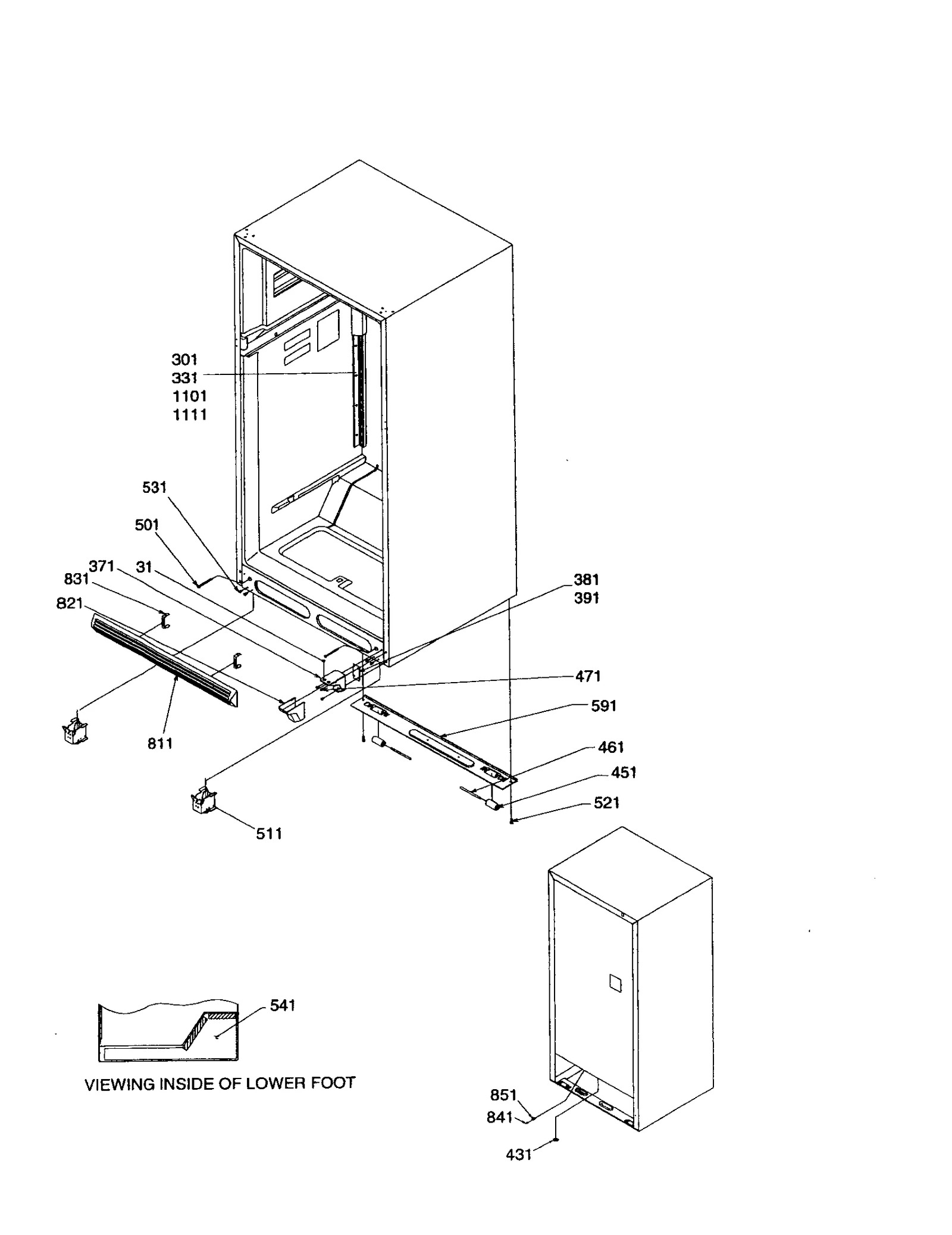

LADDERS AND LOWER COMPARTMENT
Parts in LADDERS AND LOWER COMPARTMENT
28 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 31 | – | M0310330 Refrigerator Button Plug | - |
| 301 |  | 67006425replaces M0238642 Refrigerator Screw | $2.30 Part Advantage |
| 331 | – | 14235701 LADDER-L/R SIDE (QTY 2) | - |
| 371 | – | 10585509 Refrigerator Hinge | - |
| 371A | – | 10585508 Refrigerator Hinge | - |
| 381 | – | 10447904 Refrigerator Shim | - |
| 391 | – | 10447903 Refrigerator Shim | - |
| 431 |  | Imperial Refrigerator Insulation Fill Hole Plug | - |
| 451 |  | 10450701NLA Refrigerator Roller | Discontinued |
| 461 | – | 10450901 Refrigerator Axle | - |
| 471 |  | WP67006715replaces M0241508 Refrigerator Screw | - |
| 501 | – | M0204336 Refrigerator Screw | - |
| 511 | – | 12452601Q Refrigerator Roller Bracket | - |
| 521 | – | M0260242 Refrigerator Screw | - |
| 531 |  | W11573574replaces M0211031 Screw-sm | $8.78 Part Advantage |
| 541 | – | 10663001 Refrigerator Insulation | - |
| 591 | – | 10427110 Refrigerator Brace | - |
| 811 | – | 10474906 Toe Grll/bis | - |
| 811A | – | 10474901 Refrigerator Grille | - |
| 811B | – | 10474902 Refrigerator Grille (White) | - |
| 821 | – | 10584806 Refrigerator Hinge Cover | - |
| 821A | – | 10584801 Refrigerator Hinge Cover | - |
| 821B | – | 10584802 Refrigerator Hinge Cover | - |
| 831 | | 10551502NLA Clip Grill | Discontinued |
| 841 | | W10709801replaces M0227217 Refrigerator Screw | - |
| 851 | – | 10547101 Refrigerator Clip | - |
| 1101 | – | 12435801 Refrigerator Ladder | - |
| 1111 | – | M0238636 Refrigerator Screw | - |
