Model
Kenmore 596.69899001
Refrigerator (Kenmore 59669899001)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.69899001Refrigerator (Kenmore 59669899001)
12 diagrams297 parts
Parts Sections (12)
Diagram

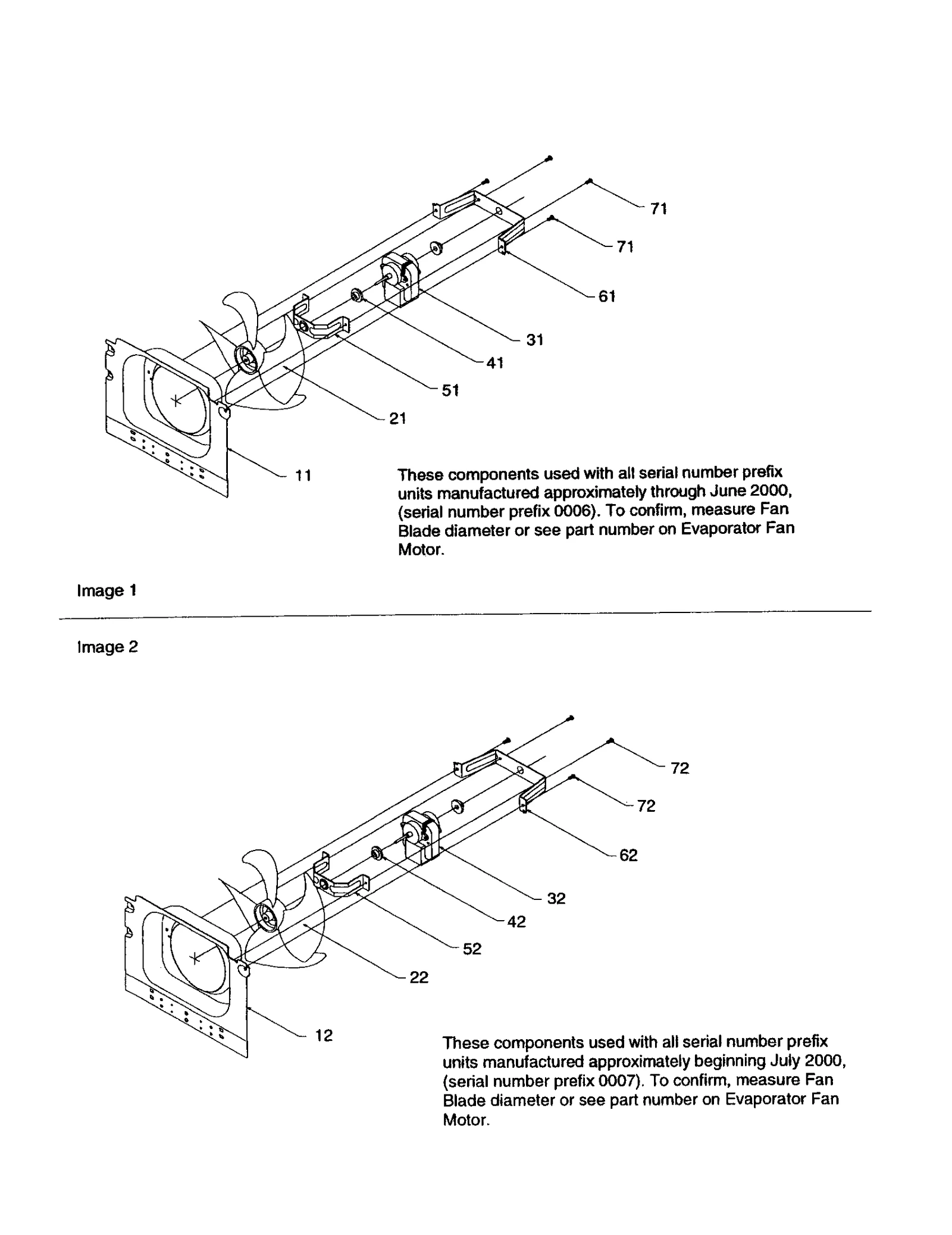

EVAP FAN MOTOR ASSEMBLY
Parts in EVAP FAN MOTOR ASSEMBLY
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 11 | – | 10422304 Refrigerator Shroud | - |
| 12 | – | 10422306 Evaporator Fan Shroud | - |
| 21 |  | W10116797replaces 10855401 Refrigerator Blade | $5.00 RepairClinic |
| 22 |  | WP2169142replaces 12217201 Refrigerator Blade | $12.49 Part Advantage |
| 31 |  | WP10449501replaces 10449501 Refrigerator Evaporator Fan Motor | $147.95 ApplianceParts Pro |
| 32 |  | WPW10189703replaces 10449506 Refrigerator Fan Motor | $36.85 Part Advantage |
| 41 |  | WP2264462replaces A1017202 Refrigerator Grommet | $16.54 Part Advantage |
| 51 |  | 10492801NLA Refrigerator Bracket | Discontinued |
| 61 | | 10492701NLA Refrigerator Bracket | Discontinued |
| 71 |  | WP90767replaces M0224416 Refrigerator Screw | $2.30 Part Advantage |
