Diagram

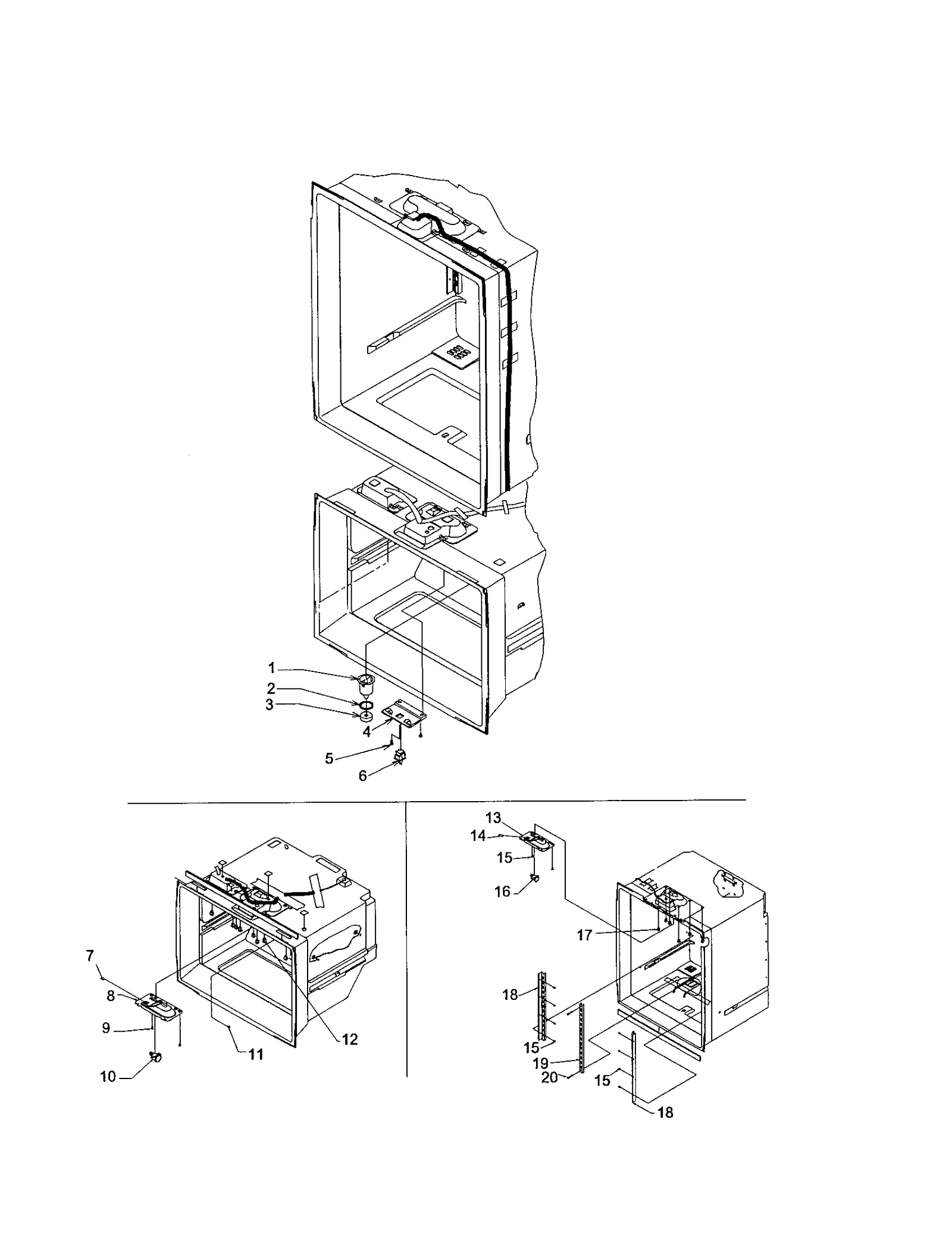

LIGHT SWITCHES/DRAIN FUNNEL
Parts in LIGHT SWITCHES/DRAIN FUNNEL
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10815413replaces D7753903 Refrigerator Funnel | $30.83 Parts Dr |
| 2 |  | WPM0500703replaces M0500703 Refrigerator O-Ring Seal | $6.15 Parts Dr |
| 3 |  | WPB8381501replaces B8381501 Gasket Drain Tube | $3.38 Part Advantage |
| 4 | – | D7297604 Refrigerator Cover | - |
| 5 |  | 67006425replaces M0238616 Refrigerator Screw | $2.30 Part Advantage |
| 6 |  | W11396033replaces 12466101 Refrigerator Switch | $14.41 Part Advantage |
| 7 | – | B5733302 Ground Clip | - |
| 8 | – | 12427502 Refrigerator Housing | - |
| 9 | | 67006425replaces M0238642 Refrigerator Screw | $2.30 Part Advantage |
| 10 |  | Refrigerator Socket | - |
| 11 | – | M0231426 Refrigerator Screw | - |
| 12 | – | M0581001 Refrigerator Grommet Screw | - |
| 18 | – | 12435701 Refrigerator Ladder | - |
| 19 | – | 12435801 Refrigerator Ladder | - |
