Model
Kenmore 596.71879100
Bottom-Mount Refrigerator (Kenmore 59671879100)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.71879100Bottom-Mount Refrigerator (Kenmore 59671879100)
12 diagrams283 parts
Parts Sections (12)
Diagram

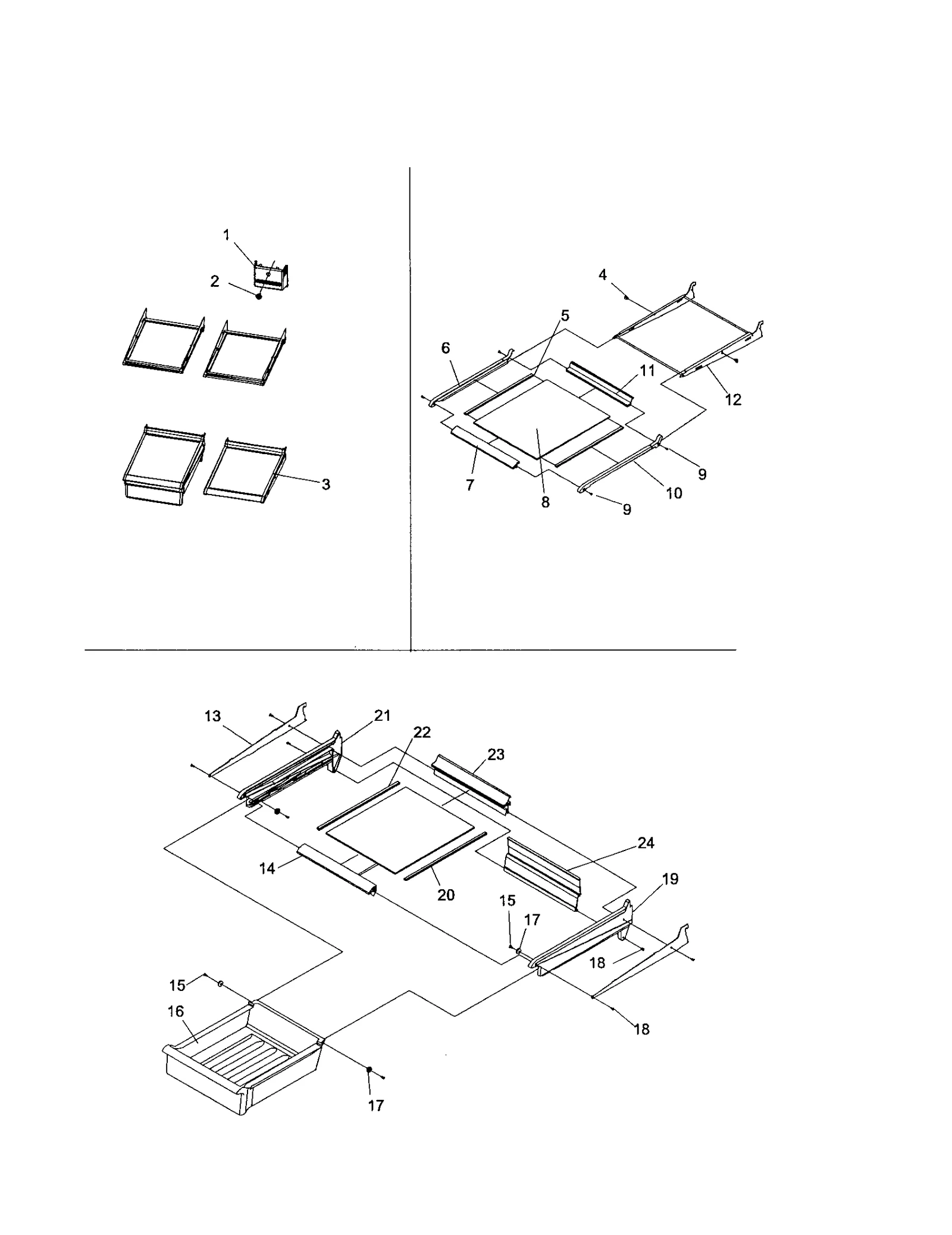

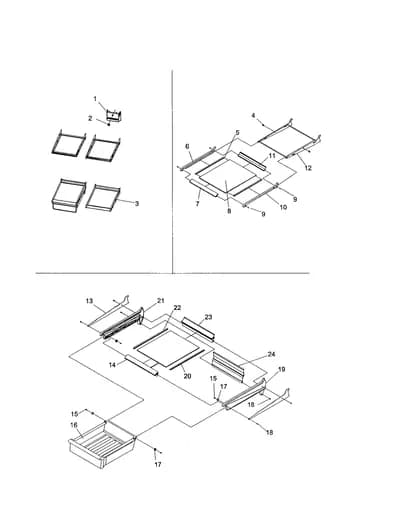

REFRIG. FEATURE, SHELF AND DELI
Parts in REFRIG. FEATURE, SHELF AND DELI
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 12219301 Refrigerator Cover | - |
| 2 | – | D7795826 Knob, White | - |
| 3 | – | 12204901Q Refrigerator Shelf | - |
| 4 | – | 10875101 Shelf Stop | - |
| 5 | – | 10562503 Slide Glide | - |
| 6 | – | 12325201 Refrigerator Glide | - |
| 7 | – | 10436821 Refrigerator Extrusion | - |
| 8 | – | 12204802 Refrigerator Glass | - |
| 9 |  | WPW10348409replaces M0211533 Refrigerator Screw | $2.30 Part Advantage |
| 10 | – | 12325202 Refrigerator Glide | - |
| 11 | – | 12120304 Refrigerator Extrusion | - |
| 12 | – | 12120205 Refrigerator Frame | - |
| 13 | – | 10681401 Refrigerator Rail | - |
| 14 | – | 10436822 Refrigerator Extrusion | - |
| 15 |  | 67006692replaces M0238105 Refrigerator Screw | $3.06 RepairClinic |
| 16 | – | 10417115 Meat Kpr P | - |
| 17 | – | 10481001 Refrigerator Roller | - |
| 20A | – | 10485501 Refrigerator Glide | - |
| 21 | – | 10485601 Refrigerator Glide | - |
| 22 | – | 12204803 Refrigerator Glass Shelf | - |
| 23 | – | 10502203 Refrigerator Extrusion | - |
| 24 | – | 10502504 Refrigerator Extrusion | - |
