Model
Kenmore 596.71879101
Refrigerator (Kenmore 59671879101)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.71879101Refrigerator (Kenmore 59671879101)
12 diagrams283 parts
Parts Sections (12)
Diagram

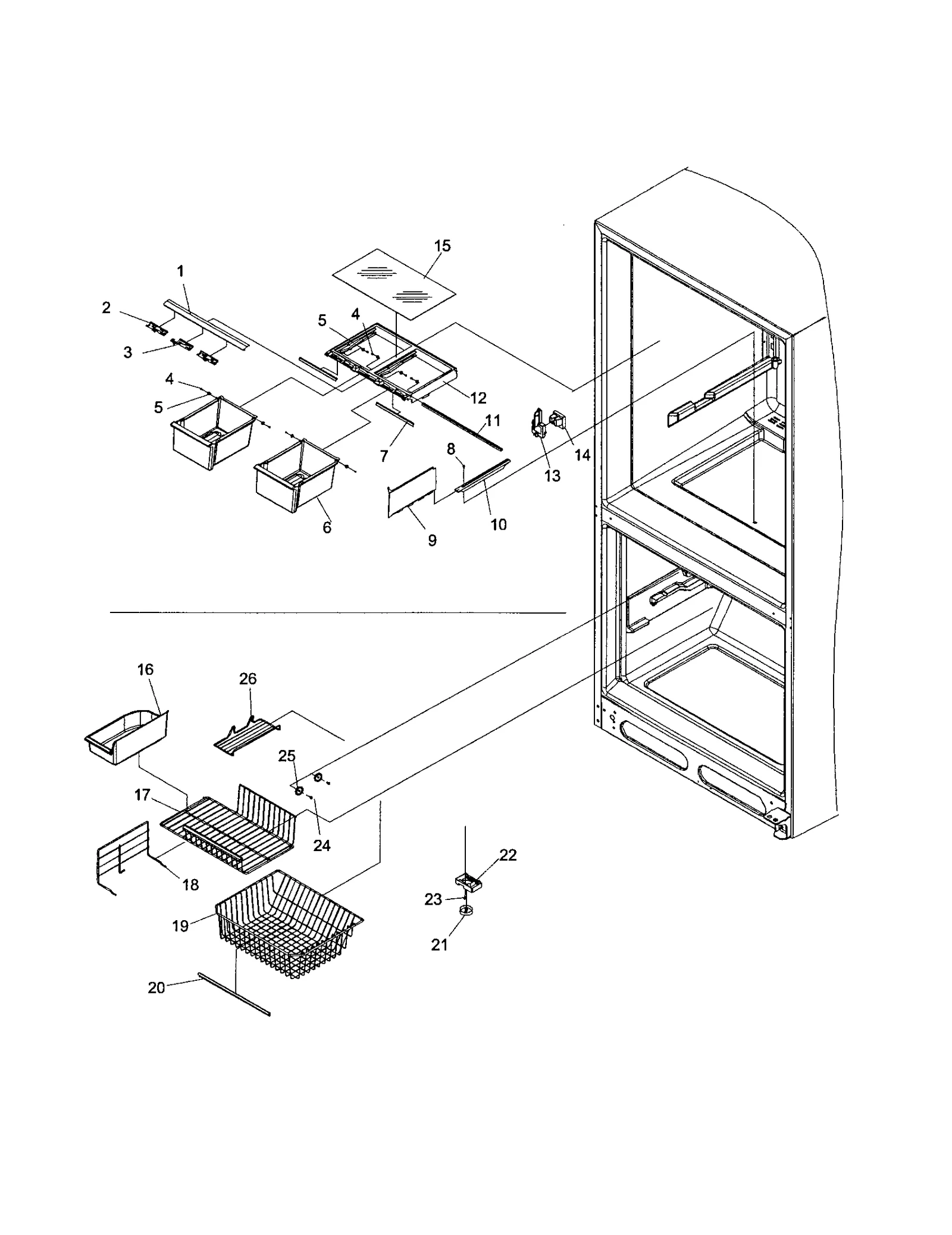

CRISPER AND FREEZER FEATURE
Parts in CRISPER AND FREEZER FEATURE
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 10688079 Refrigerator Extrusion | - |
| 3 | – | 12227401 Refrigerator Control Knob | - |
| 4 |  | 67006692replaces M0238105 Refrigerator Screw | $3.06 RepairClinic |
| 5 | – | 10481001 Refrigerator Roller | - |
| 6 |  | Refrigerator Control Knob | - |
| 6A | – | 12226701 Refrigerator Crisper Pan | - |
| 7 | | Refrigerator Seal | - |
| 8 |  | 67006425replaces M0238616 Refrigerator Screw | $2.30 Part Advantage |
| 9 | – | 12226901 Refrigerator Divider | - |
| 10 | | Refrigerator Glide | - |
| 11 |  | WP12227302WDreplaces 12227301WD Refrigerator Brace | $51.62 ApplianceParts Pro |
| 12 | – | 12227201 Refrigerator Crisper Frame | - |
| 13 | – | 12226601 Refrigerator Cover | - |
| 14 | – | 12227001 Refrigerator Tunnel | - |
| 15 | – | 12204807 Refrigerator Glass | - |
| 16 | – | 12045503 Refrigerator Pan | - |
| 16A | – | 12190801 Refrigerator Pan | - |
| 17 | – | 12204706 Refrigerator Shelf | - |
| 18 | – | D7806002 Refrigerator Divider | - |
| 19 | – | 12216802 Refrigerator Basket | - |
| 20 | – | 10508512 Refrigerator Handle | - |
| 21 | – | D7689905 Refrigerator Knob | - |
| 22 | – | D7878824 Refrigerator Cover | - |
| 23 | – | M0216531 Refrigerator Screw | - |
| 24 |  | WP67006908replaces M0230919 Refrigerator Screw | $2.30 Part Advantage |
| 25 |  | WP10972101replaces 10972101 Refrigerator Spacer | - |
| 26 | – | 12228201 Refrigerator Rack | - |
