Model
Kenmore 596.79142990
22" Bottom-Mount Refrigerator (Kenmore 59679142990)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.7914299022" Bottom-Mount Refrigerator (Kenmore 59679142990)
11 diagrams337 parts
Parts Sections (11)
Diagram

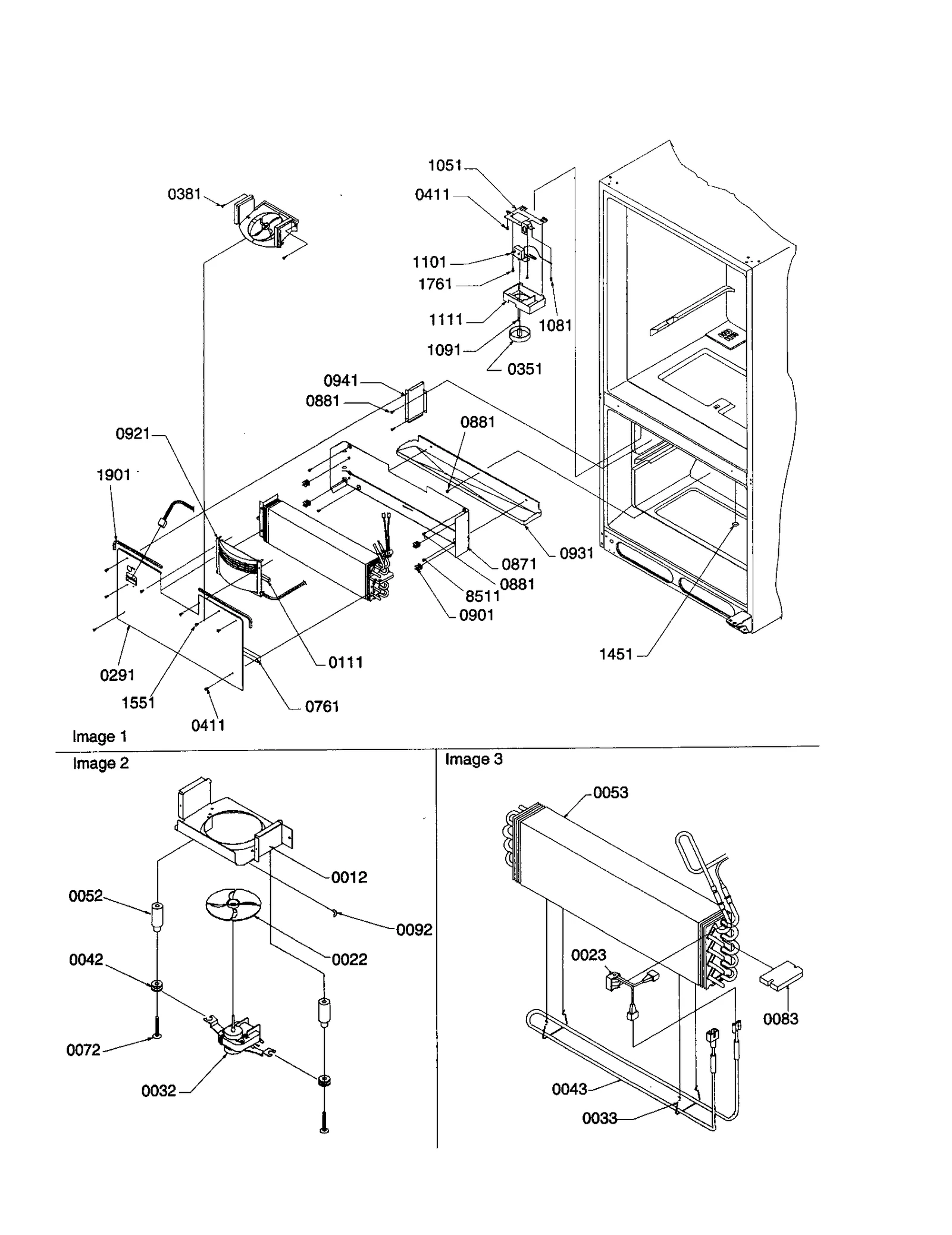

EVAPORATOR/FREEZER CONTROL
Parts in EVAPORATOR/FREEZER CONTROL
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 12 | – | 10619306 Refrigerator Shroud | - |
| 22 |  | W10116797replaces 10855401 Refrigerator Blade | $5.00 RepairClinic |

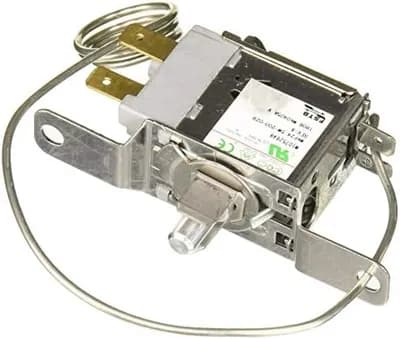

| 23 |  | WP10442411replaces 10442407 Refrigerator Thermostat | $11.84 Part Advantage |
| 32 |  | WP12013209Qreplaces 12442201 Refrigerator Motor | $199.17 Part Advantage |
| 33 |  | W11673433replaces 10428101 Imperial Refrigerator Evaporator Heater Clip | $67.26 ApplianceParts Pro |
| 42 | – | 12442501 Refrigerator Grommet | - |
| 43 |  | WP10428409replaces 10428409 Refrigerator Evaporator Heater | $88.95 ApplianceParts Pro |
| 52 | – | 12442401 Refrigerator Post | - |
| 53 | – | R0170059 Low-side | - |
| 72 | – | M0219711 Refrigerator Screw | - |
| 83 | – | 10519101 Refrigerator Block | - |
| 92 | – | B5733302 Ground Clip | - |

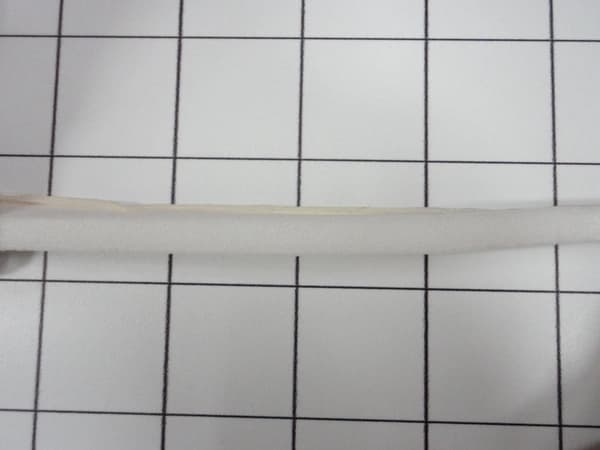

| 111 | – | B5759611 Refrigerator Gasket | - |
| 291 | – | 10485406 Refrigerator Cover | - |
| 351 | – | D7689905 Refrigerator Knob | - |
| 381 |  | WP98165replaces M0211018 Screw | $7.47 PartSelect |
| 411 |  | 67006425replaces M0238616 Refrigerator Screw | $2.30 Part Advantage |
| 761 |  | A3189394replaces A3189320 Refrigerator Gasket | - |
| 871 | – | 10427716 Evaporator Shield | - |
| 881 | | 67006425replaces M0238642 Refrigerator Screw | $2.30 Part Advantage |
| 901 | | Refrigerator Clip | $7.97 RepairClinic |
| 921 | – | 10502401 Refrigerator Grille | - |
| 931 | – | 10486104 Refrigerator Drip Tray | - |
| 941 | – | 10638601 Refrigerator Duct | - |
| 1051 | – | 12271401 Refrigerator Bracket | - |
| 1081 | – | M0253916 Screw | - |
| 1091 | – | M0216531 Refrigerator Screw | - |
| 1101 |  | W10752646replaces C8946703 Refrigerator Temperature Control | $77.66 Part Advantage |
| 1111 | – | D7878824 Refrigerator Cover | - |
| 1451 | – | M0310308 Refrigerator Button Plug | - |
| 1551 | – | M0310305 Refrigerator Plug | - |
| 1761 |  | WP90767replaces M0216716 Refrigerator Screw | $2.30 Part Advantage |
| 1901 | – | A3030353 Refrigerator Gasket | - |
| 8511 | | 67006425replaces M0239229 Refrigerator Screw | $2.30 Part Advantage |
