Model
Kenmore 596.79243014
Refrigerator (Kenmore 59679243014)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.79243014Refrigerator (Kenmore 59679243014)
11 diagrams251 parts
Parts Sections (11)
Diagram

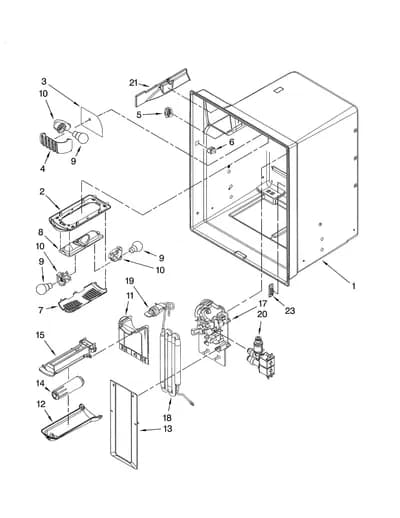

REFRIGERATOR LINER
Parts in REFRIGERATOR LINER
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
| 2 | – | 12905803 MODULE, LIGHT | - |
| 3 |  | Light Foil | - |
| 4 |  | Refrigerator Light Cover | - |
| 5 |  | W10555984replaces 13008201 Grille- Re | $17.55 ApplianceParts Pro |
| 6 |  | W11396033replaces 12466103 Refrigerator Light Switch | $14.41 Part Advantage |
| 7 | – | 12905902 Cover- Ref | - |
| 8 | – | W10368228 Amana Refrigerator Housing | - |
| 9 |  | W11679940replaces 2255743N Bulb-light | $2.65 Part Advantage |
| 10 |  | W11447232replaces 12570701V Refrigerator Socket | $10.11 Parts Dr |
| 11 |  | Cover- Wat | - |
| 12 |  | WP67006331replaces 12960301 Lid- Water | $45.97 Amazon |
| 13 |  | 67006329replaces 12960001 Cover- Wat | $102.43 PartSelect |
| 14 |  | EDR4RXD1replaces 9006 Refrigerator Water Filter | $49.90 Part Advantage |
| 15 |  | 67006325replaces 12955901 Bracket- F | $42.72 Part Advantage |
| 17 |  | W10502642replaces W10365768 Refrigerator Bracket | $94.33 Part Advantage |
| 18 | | W10502642replaces W10273376 Refrigerator Reservoir | $94.33 Part Advantage |
| 19 |  | W11395888replaces 12664501SP Refrigerator Water Filter Bypass | $24.76 Part Advantage |

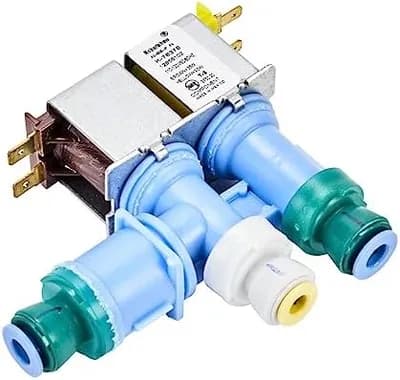

| 20 |  | 67006322replaces 12956102 Refrigerator Valve | $86.74 Part Advantage |
| 21 |  | W10165861replaces 12960902 Cover-wire | - |
| 23 | – | 12987303 Refrigerator Cover | - |
