Model
Kenmore 596.79249017
Bottom-Mount Refrigerator (Kenmore 59679249017)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.79249017Bottom-Mount Refrigerator (Kenmore 59679249017)
10 diagrams298 parts
Parts Sections (10)

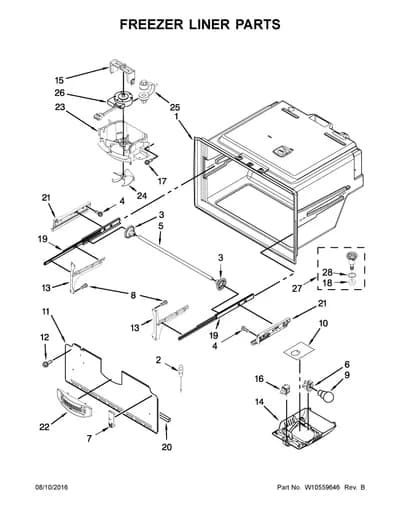

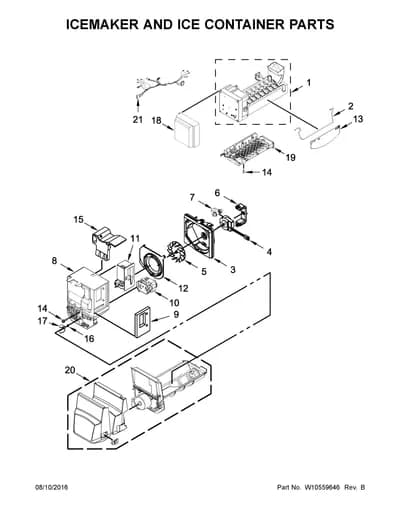

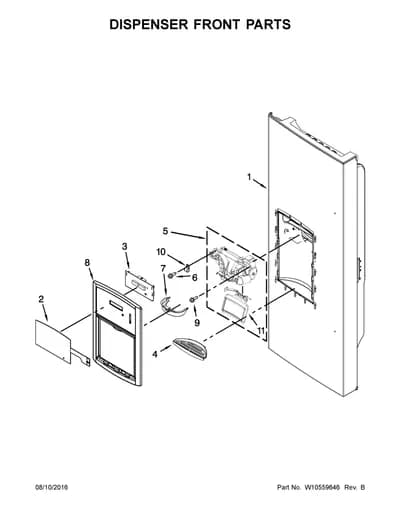

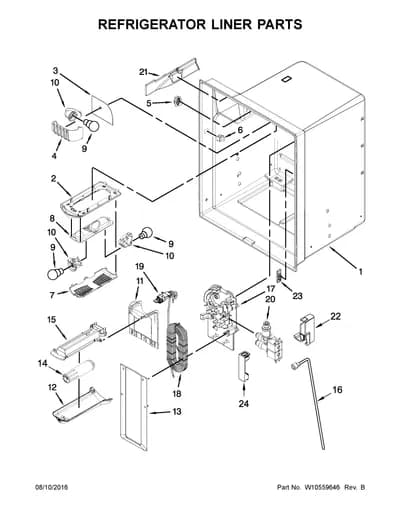

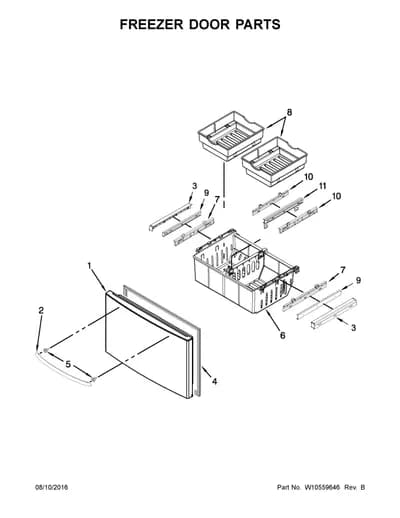

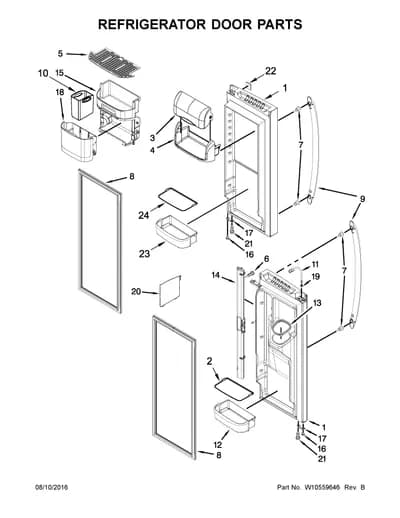

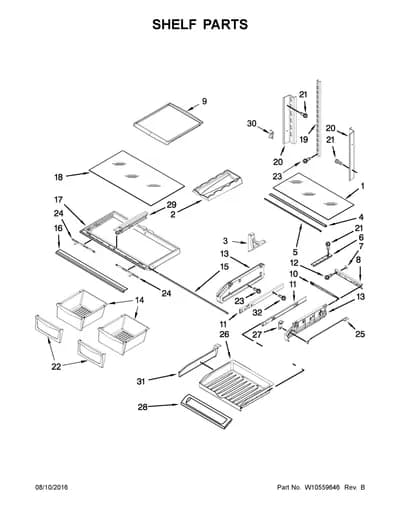

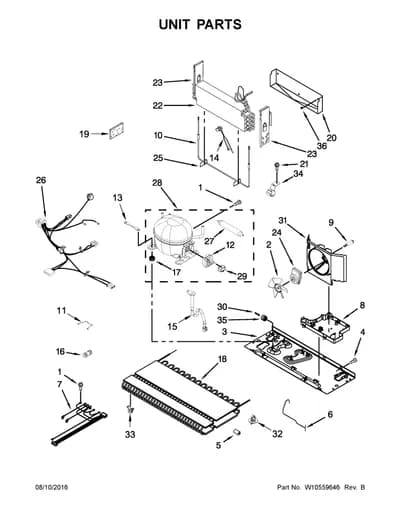

Diagram

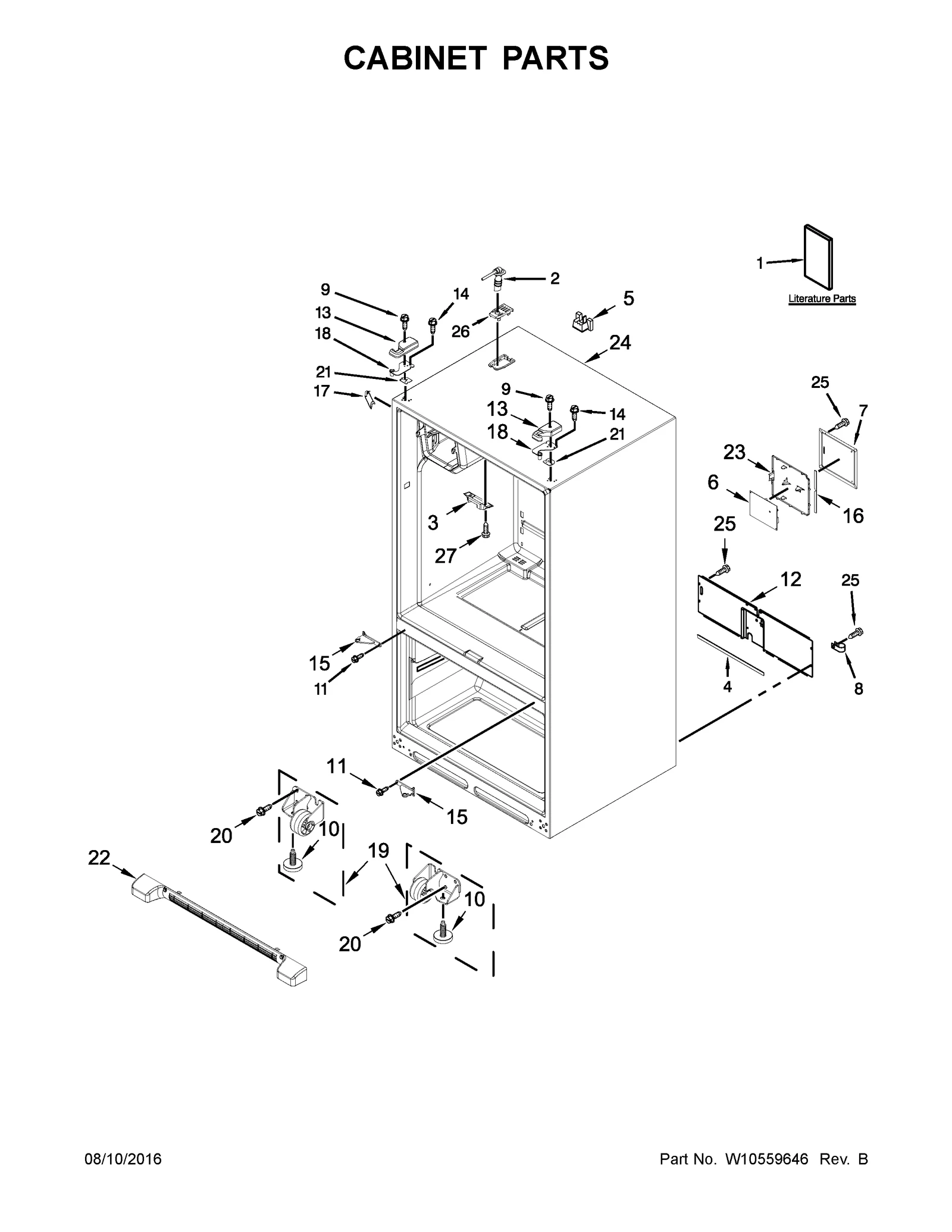

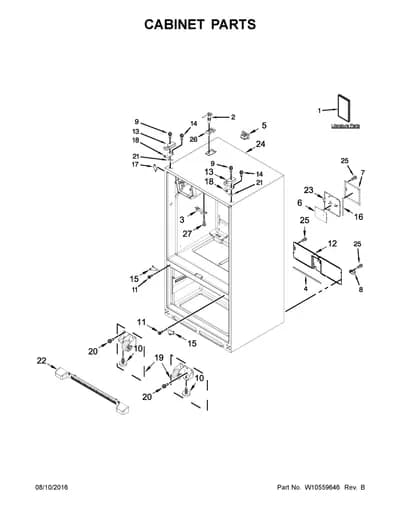

CABINET PARTS
Parts in CABINET PARTS
49 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10814258 TECH SHEET (ENGLISH) | - |
| 1A | – | W10814260 Refrigerator Technical Sheet in French | - |
| 1B | – | W10323094 Refrigerator Owner's Manual | - |
| 1C | – | W10323454 Energy Guide | - |
| 2 |  | W11551552replaces 12961402 Tube-water | $17.15 PartSelect |
| 3 |  | WP67003405replaces 12698403 Block Pivot | $3.55 Part Advantage |
| 4 |  | W11250029replaces B5759655 Refrigerator Machine Compartment Cover Gasket | $14.95 ApplianceParts Pro |
| 5 | | W11686793replaces W10658542 Block-eps Fl | - |
| 6 |  | WPW10312695replaces W10312695 Refrigerator Electronic Control Board | $179.32 PartSelect |
| 7 |  | Refrigerator Electronic Control Board Cover | $29.10 RepairClinic |
| 8 | | Refrigerator Clamp | - |
| 9 |  | WP8281196replaces 12992602 Refrigerator Screw | $9.62 PartSelect |
| 10 |  | WPW10141622replaces W10141622 Brake Lower Foot | $3.55 Part Advantage |
| 11 |  | W11573362replaces W10673840 10-32 X .875 | $9.23 RepairClinic |
| 12 | | Refrigerator Cover | $57.57 RepairClinic |
| 13 |  | WPW10337634replaces W10337634 Refrigerator Cover | - |
| 13A |  | Refrigerator Door Hinge Cover, Left (Black) | - |
| 13B |  | WPW10337648replaces W10337648 Refrigerator Door Hinge Cover | $14.25 RepairClinic |
| 13C |  | 67005958replaces 12962302W Top Cover | $11.00 Part Advantage |
| 13D |  | WP67005956replaces 12962302B Refrigerator Cover | - |
| 13E |  | WPW10191117replaces 12962302AP Refrigerator Cover | $14.26 RepairClinic |
| 14 |  | WP489349replaces 12992403 Refrigerator Screw | $2.30 Part Advantage |
| 15 |  | W10918113replaces 13000001WD Refrigerator Center Door Hinge (White) | $58.43 ApplianceParts Pro |
| 15A |  | W10918164replaces 13000007ED Refrigerator Door Hinge (Black) | $49.48 Parts Dr |
| 15B |  | W10917988replaces 13000001AP Refrigerator Door Hinge (Gray) | $40.32 Parts Dr |
| 15C |  | Refrigerator Door Hinge, Right Center (White) | - |
| 15D | | W10918164replaces 13000008ED Refrigerator Door Hinge (Black) | $49.48 Parts Dr |
| 15E | | W10917988replaces 13000002AP Refrigerator Door Hinge (Gray) | $40.32 Parts Dr |
| 16 | – | 12957801 Refrigerator Gasket | - |
| 17 |  | Refrigerator Corner Trim | - |
| 17A |  | 67003485replaces 12587703B Corner Cover | - |
| 17B |  | WP12587703APreplaces 12587703AP Refrigerator Filler | $9.57 ApplianceParts Pro |
| 18 |  | W11592375replaces 12963204ED Refrigerator Door Hinge | $11.17 Parts Dr |
| 18A |  | W11592374replaces 12963205ED Refrigerator Door Hinge | $9.21 Part Advantage |
| 19 |  | WPW10515763replaces W10515763 Refrigerator Roller | $36.59 Part Advantage |
| 19A |  | WPW10515762replaces W10515762 Refrigerator Roller | $36.26 Part Advantage |
| 20 |  | 67006564replaces W10709365 1/4-20 X .75 | $3.74 Parts Dr |
| 21 |  | Refrigerator Door Hinge Shim | $34.57 Parts Dr |
| 21A |  | Refrigerator Door Hinge Shim, Right | $50.57 ApplianceParts Pro |
| 22 |  | WPW10534161replaces W10534161 Refrigerator Grille | $68.86 PartSelect |
| 22A |  | WPW10534162replaces W10534162 Refrigerator Grille | $36.95 Part Advantage |
| 22B |  | WPW10534160replaces W10534160 Refrigerator Grille | $39.11 Part Advantage |
| 23 |  | Refrigerator Cover | - |
| 24 | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
| 25 |  | 67006425replaces 12990511 Refrigerator Screw | $2.30 Part Advantage |
| 26 |  | Refrigerator Filter Cover (White) | - |
| 26A |  | Refrigerator Filter Cover (Black) | - |
| 26B |  | W10191141replaces 12981401AP Refrigerator Cover Tube | $9.97 Parts Dr |
| 27 |  | W10854958replaces 12990302 Refrigerator Pivot Block Screw | $2.48 Part Advantage |
