Model
Kenmore 596.79542014
Refrigerator (Kenmore 59679542014)
Parts Sections (11)

How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.79542014Refrigerator (Kenmore 59679542014)
11 diagrams250 parts
Parts Sections (11)
Diagram

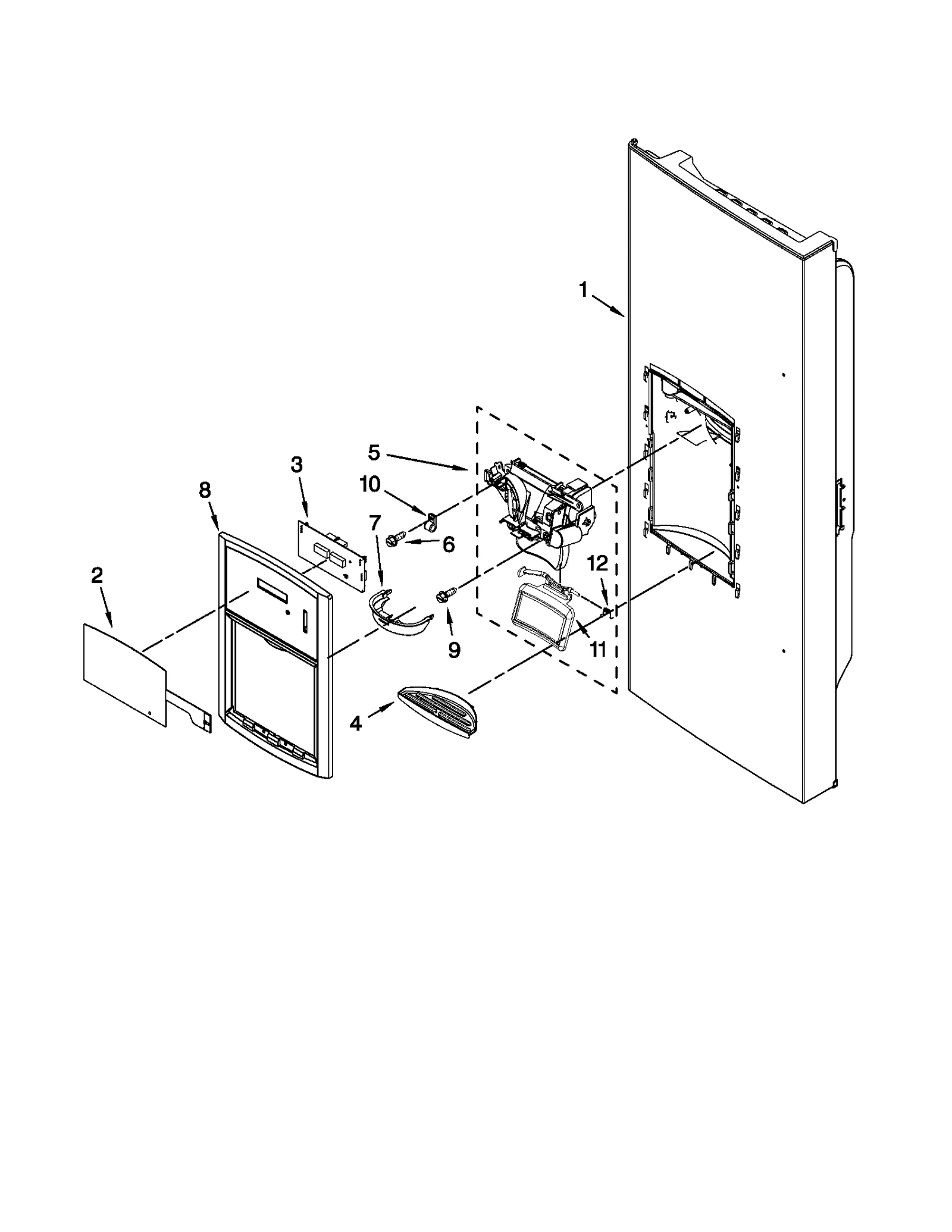

DISPENSER FRONT PARTS

Parts in DISPENSER FRONT PARTS
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | N/P FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS LIST, REFER TO MODEL 106.8560 | - |
| 2 | W10887844replaces W10323098 Refrigerator Overlay | - | |
| 3 | Refrigerator Electronic Control Board | Discontinued | |
| 4 | W10141657NLA Refrigerator Drip Tray | Discontinued | |
| 5 | WP13005704Wreplaces 13005704W Refrigerator Chute | $146.74 RepairClinic | |
| 6 | WP489349replaces 12992403 Refrigerator Screw | $2.30 Part Advantage | |

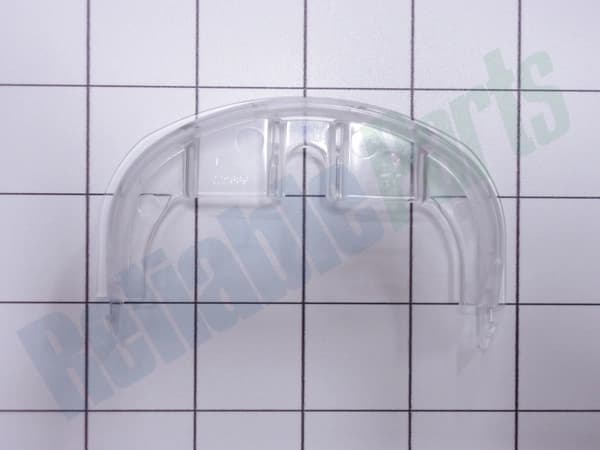

| 7 | ![]() | 67006295replaces 12958301 Ring- Targ | - |
| 8 | Refrigerator Cover (White) | - | |
| 9 | WP98165replaces 67006473 Ikea Refrigerator Screw | $7.47 PartSelect | |
| 10 | Refrigerator Tube Clamp | - | |
| 11 | W10146247NLA Refrigerator Dispenser Lever | Discontinued | |

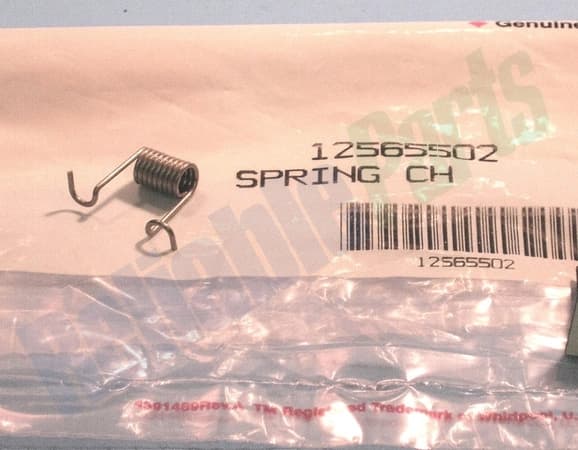

| 12 | ![]() | WP12565502replaces 12565502 Fisher & Paykel Refrigerator Spring | $5.00 RepairClinic |
