Model
Kenmore 596.79549013
Refrigerator (Kenmore 59679549013)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.79549013Refrigerator (Kenmore 59679549013)
11 diagrams246 parts

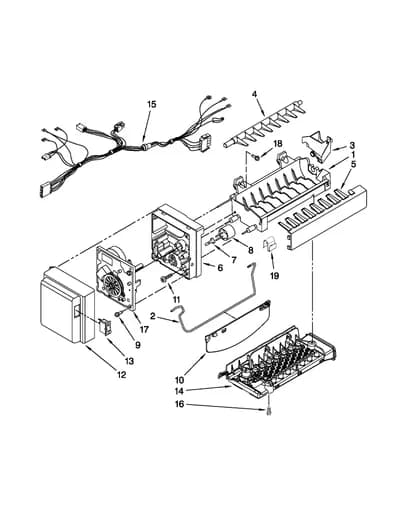

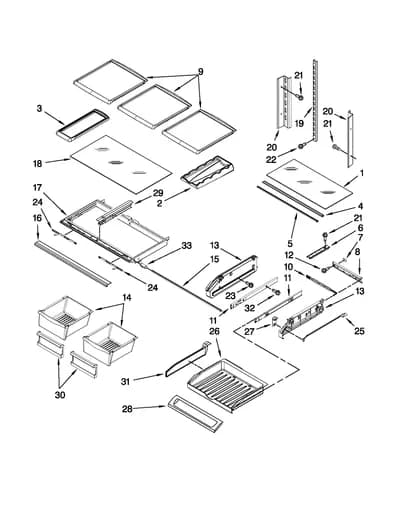

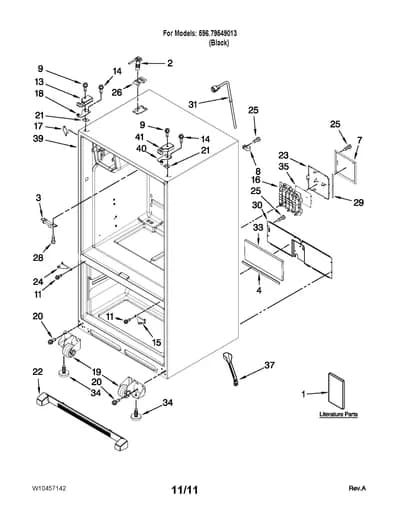

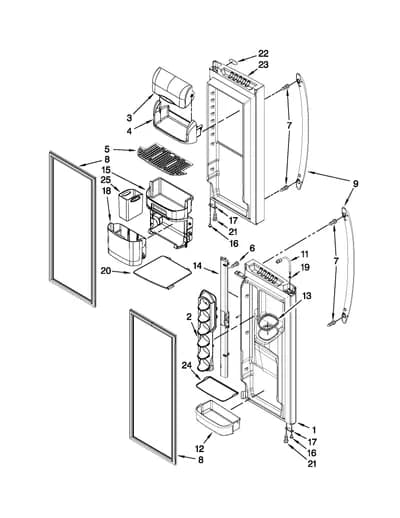

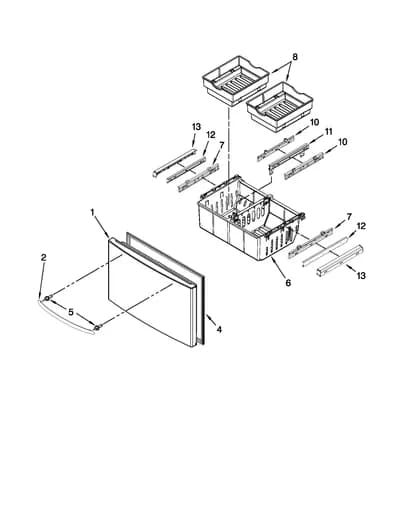

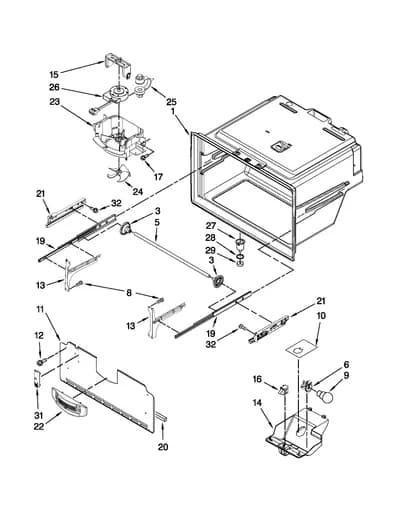

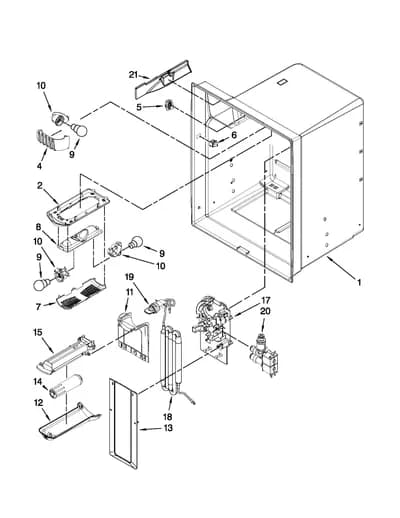

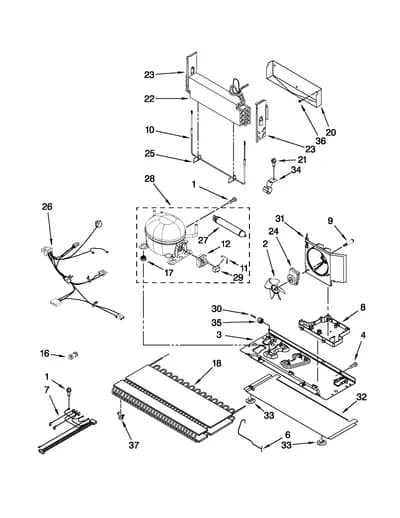

Parts Sections (11)
Diagram

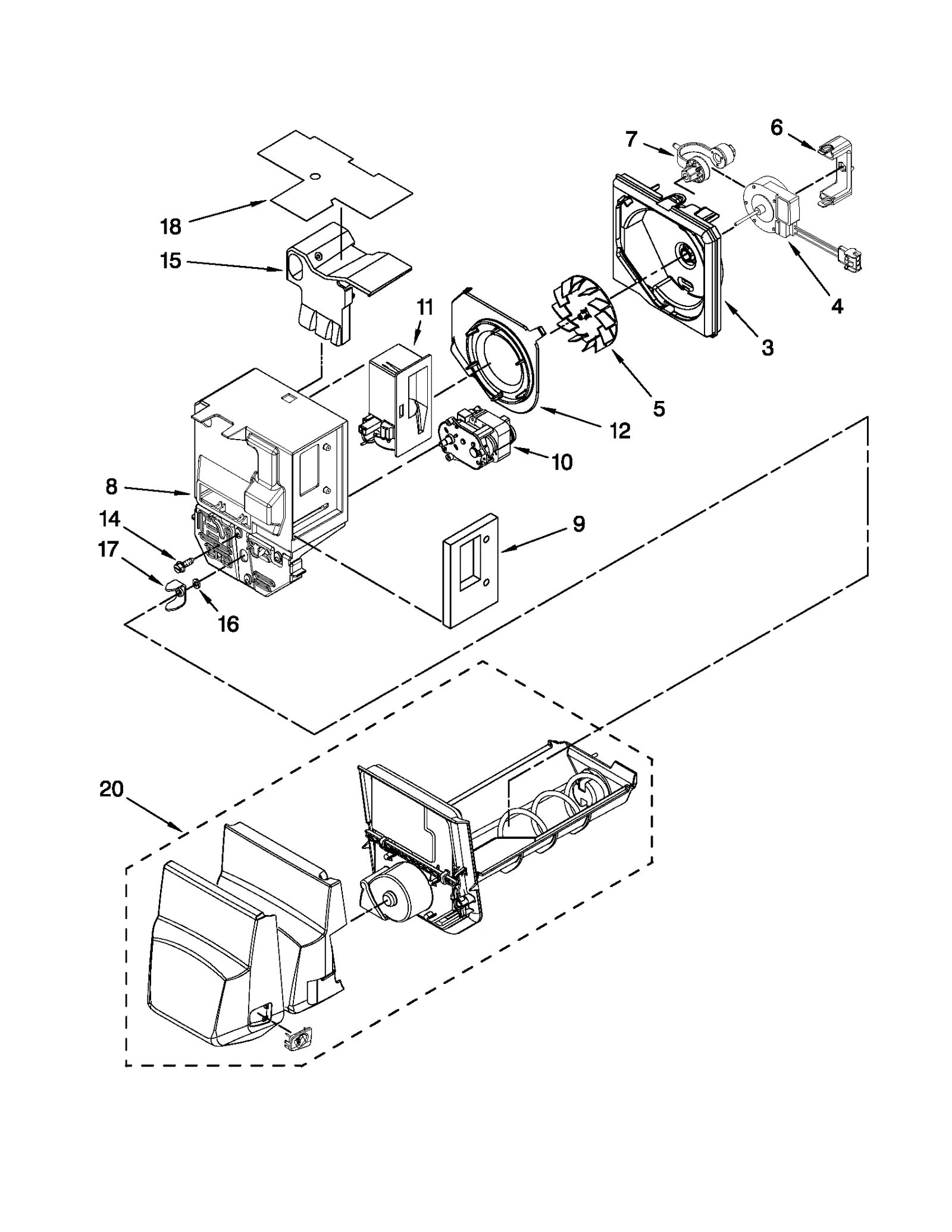

MOTOR AND ICE CONTAINER PARTS
Parts in MOTOR AND ICE CONTAINER PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

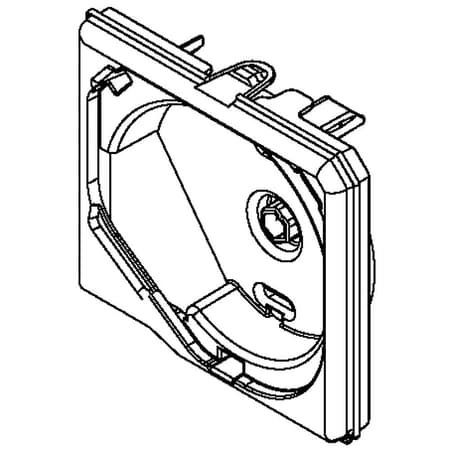

| 3 |  | Refrigerator Shroud | - |
| 4 |  | WPW10162697replaces W10162697 Refrigerator Motor | $116.87 Parts Dr |
| 5 |  | WPW10123444Kreplaces W10123444 Refrigerator Wheel | $30.95 Part Advantage |
| 6 |  | W11712696replaces 12956601 Clip- Fan | $6.95 ApplianceParts Pro |
| 7 | | W11676465replaces 12951101 Grommet- F | $6.87 Parts Dr |
| 8 |  | Refrigerator Ice Box Divider | - |
| 9 |  | WP67006341replaces 12920001SP Gasket- Da | $3.38 Part Advantage |
| 10 |  | W11671282replaces W10372218 Refrigerator Auger Motor | $60.54 Part Advantage |
| 11 |  | WPW10127427replaces W10127427 Refrigerator Air Damper | $59.51 Part Advantage |
| 12 |  | Refrigerator Ice Maker Fan Motor Cover | - |
| 14 |  | 67006425replaces 12990513 Refrigerator Screw | $2.30 Part Advantage |

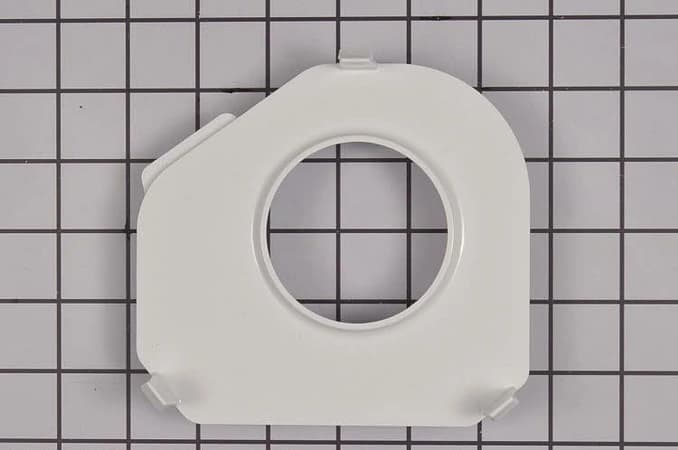

| 15 | | W11676504replaces W10118612 Refrigerator Insert | $13.93 Parts Dr |
| 16 |  | 67006346replaces 420107A700 Washer | $10.95 ApplianceParts Pro |
| 17 |  | WP63052-2replaces 63052A001 Refrigerator Coupling | $27.92 Part Advantage |
| 18 | | Refrigerator Shield | - |
| 20 |  | WPW10324090replaces W10324090 Refrigerator Ice Bin | $233.95 ApplianceParts Pro |
