Model
Kenmore 596.79872991
Bottom-Mount Refrigerator (Kenmore 59679872991)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.79872991Bottom-Mount Refrigerator (Kenmore 59679872991)
12 diagrams285 parts
Parts Sections (12)
Diagram

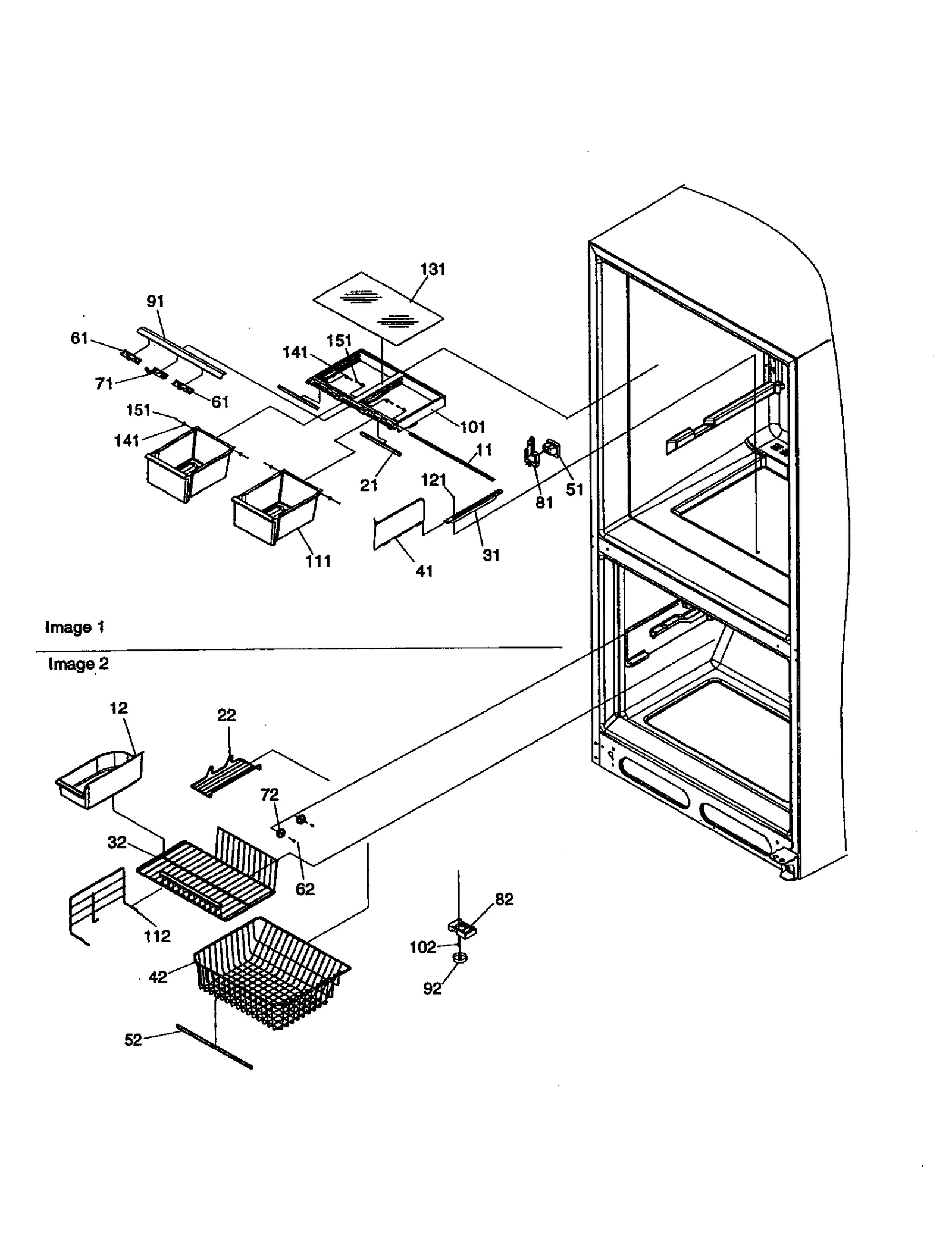

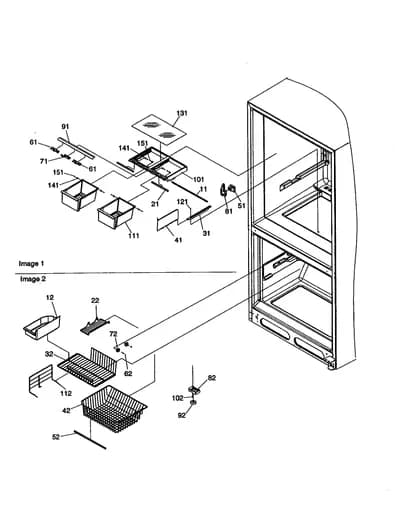

CRISPER AND FREEZER ASSEMBLY
Parts in CRISPER AND FREEZER ASSEMBLY
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 11 |  | WP12227302WDreplaces 12227301WD Refrigerator Brace | $51.62 ApplianceParts Pro |
| 12 | – | 12045503 Refrigerator Pan | - |
| 12A | – | 12190801 Refrigerator Pan | - |
| 21 |  | Refrigerator Seal | - |
| 22 | – | 12228201 Refrigerator Rack | - |
| 31 | | Refrigerator Glide | - |
| 32 | – | 12204706 Refrigerator Shelf | - |
| 41 | – | 12226901 Refrigerator Divider | - |
| 42 | – | 12216802 Refrigerator Basket | - |
| 51 | – | 12227001 Refrigerator Tunnel | - |
| 52 | – | 10508512 Refrigerator Handle | - |
| 61 | | Refrigerator Control Knob | - |
| 62 |  | WP67006908replaces M0230919 Refrigerator Screw | $2.30 Part Advantage |
| 71 | – | 12227401 Refrigerator Control Knob | - |
| 72 |  | WP10972101replaces 10972101 Refrigerator Spacer | - |
| 81 | – | 12226601 Refrigerator Cover | - |
| 82 | – | D7878824 Refrigerator Cover | - |
| 91 | – | 10688079 Refrigerator Extrusion | - |
| 92 | – | D7689905 Refrigerator Knob | - |
| 101 | – | 12227201 Refrigerator Crisper Frame | - |
| 102 | – | M0216531 Refrigerator Screw | - |
| 111 | – | 12226701 Refrigerator Crisper Pan | - |
| 112 | – | D7806002 Refrigerator Divider | - |
| 121 |  | 67006425replaces M0238616 Refrigerator Screw | $2.30 Part Advantage |
| 131 | – | 12204807 Refrigerator Glass | - |
| 141 | – | 10481001 Refrigerator Roller | - |
| 151 |  | 67006692replaces M0238105 Refrigerator Screw | $3.06 RepairClinic |
