Model
Kenmore 596.79879991
Bottom-Mount Refrigerator (Kenmore 59679879991)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
596.79879991Bottom-Mount Refrigerator (Kenmore 59679879991)
12 diagrams285 parts
Parts Sections (12)
Diagram

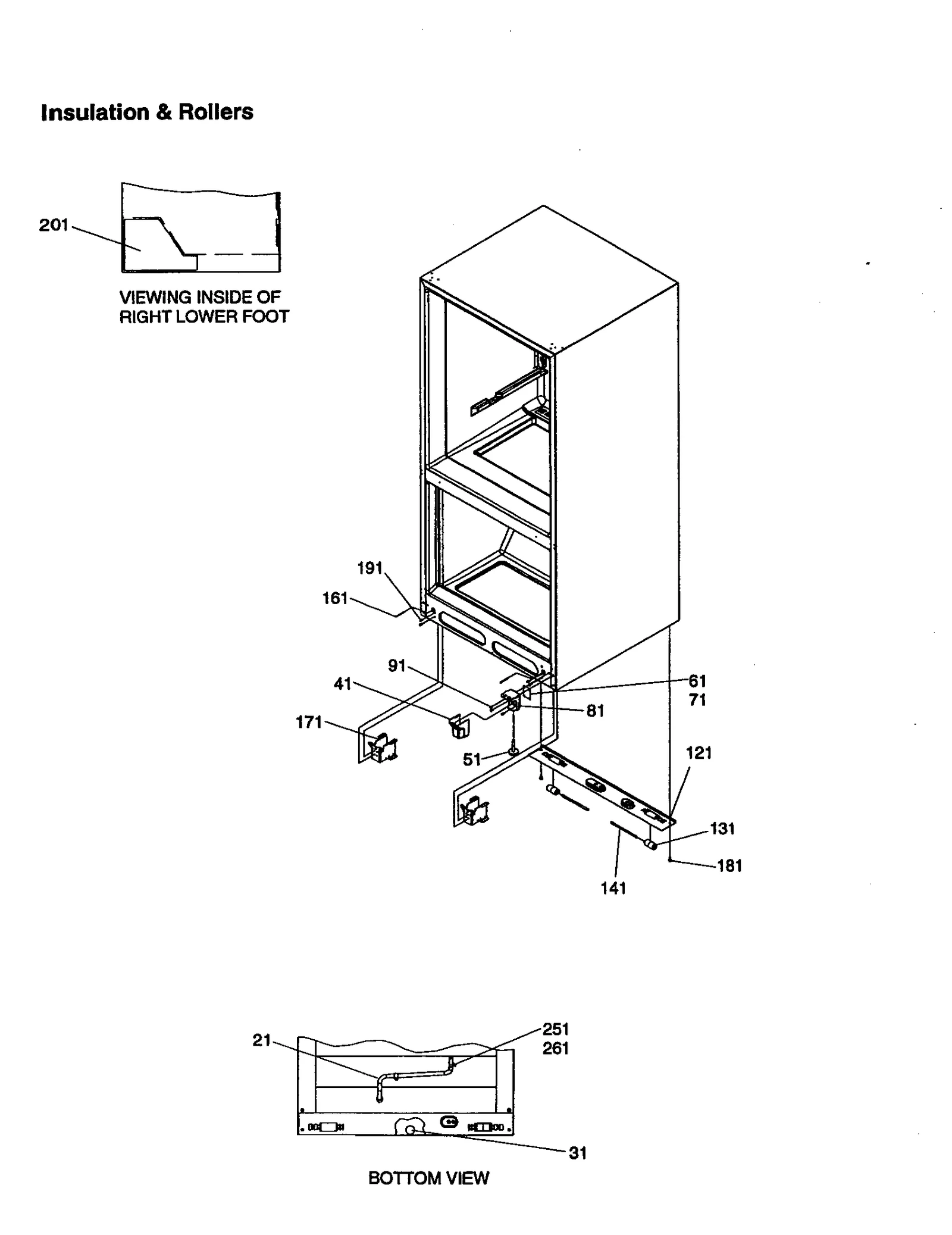

INSULATION AND ROLLERS
Parts in INSULATION AND ROLLERS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 21 | – | 12205401 Refrigerator Drain Tube | - |
| 31 |  | Imperial Refrigerator Insulation Fill Hole Plug | - |
| 41 | – | 10584806 Refrigerator Hinge Cover | - |
| 41A | – | 10584801 Refrigerator Hinge Cover | - |
| 41B | – | 10584802 Refrigerator Hinge Cover | - |
| 51 |  | W11177593replaces 10354001 Brake Foot | $6.48 Part Advantage |
| 61 | – | 10447903 Refrigerator Shim | - |
| 71 | – | 10447904 Refrigerator Shim | - |
| 81 | – | 10585509 Refrigerator Hinge | - |
| 81A | – | 10585508 Refrigerator Hinge | - |
| 91 |  | WP67006715replaces M0241508 Refrigerator Screw | - |
| 121 | – | 10427110 Refrigerator Brace | - |
| 131 |  | 10450701NLA Refrigerator Roller | Discontinued |
| 141 | – | 10450901 Refrigerator Axle | - |
| 161 | – | M0204336 Refrigerator Screw | - |
| 171 | – | 12452601Q Refrigerator Roller Bracket | - |
| 181 | – | M0260242 Refrigerator Screw | - |
| 191 |  | W11573574replaces M0211031 Screw-sm | $8.78 Part Advantage |
| 201 | – | 10663001 Refrigerator Insulation | - |
| 251 | | W10709801replaces M0227217 Refrigerator Screw | - |
| 261 | – | M0102303 Clamp | - |
