Model
Kenmore 665.16032403
Dishwasher (Kenmore 66516032403)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16032403Dishwasher (Kenmore 66516032403)
11 diagrams183 parts
Parts Sections (11)
Diagram

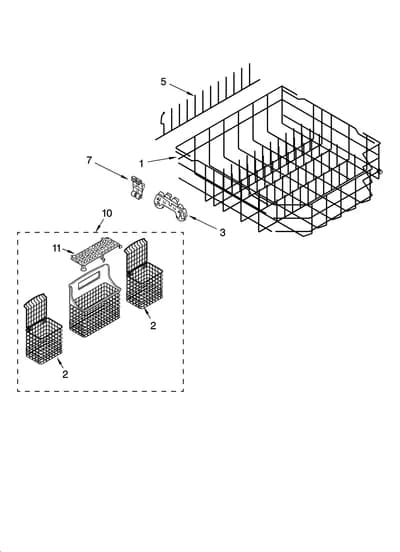

LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
Parts in LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
30 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10780925replaces 8539263 Dishrack | $282.36 Parts Dr |
| 2 |  | WP8562090replaces 8562090 Dishwasher Silverware Basket | - |
| 3 |  | WP8268645replaces 8268645 Dishwasher Dishrack Roller Assembly, Lower | $29.04 Part Advantage |
| 5 |  | W10728160replaces 8519589 Dishwasher Tine Row | $27.82 Part Advantage |
| 7 |  | WP8539124replaces 8539124 Retainer | $4.94 Parts Dr |
| 10 |  | W10807920replaces 8562086 Dishwasher Silverware Basket | $24.71 Part Advantage |
| 11 | – | 8539160 Dishwasher Silverware Basket Lid | - |
| (NI) |  | Dishwasher Moisture Barrier Kit | $32.15 RepairClinic |
| (NI) |  | Panel-wh | $120.97 RepairClinic |
| (NI) | – | 4396856 Dishwasher Door Outer Panel | - |
| (NI) | – | 4396857 Panel-bsq | - |
| (NI) | | 8171656NLA Dishwasher Door Outer Panel | Discontinued |
| (NI) | | 8171657NLA Dishwasher Side Panel Kit | Discontinued |
| (NI) | | 8171658NLA Dishwasher Side Panel Kit | Discontinued |
| (NI) | | 8171659NLA Dishwasher Side Panel Kit | Discontinued |
| (NI) |  | Dishwasher Drain Hose | $12.49 Part Advantage |
| (NI) |  | Danby Appliance Touch-Up Paint, 0.6-oz (White) | $3.58 Part Advantage |
| (NI) |  | Appliance Touch-Up Paint, 0.6-oz (Black) | $5.12 Part Advantage |
| NI |  | Spray (Black) | $29.58 Parts Dr |
| NI |  | Dishwasher Power Cord Kit | $9.13 Part Advantage |
| NI | | Dishwasher Anti-Tip Floor Mounting Kit | $37.90 RepairClinic |
| NI |  | 4396838RCreplaces 4396838 Dishwasher Dishrack Tine Tip Repair Kit (White) | $33.48 Part Advantage |
| NI |  | 4396840RCreplaces 4396840 Rak Kit-gr | $33.48 Part Advantage |
| NI |  | Magic Chef Dishwasher Dishrack Vinyl Touch-Up Paint, 4-oz (Silver Atlantis) | $37.11 RepairClinic |
| NI | | 4396840RCreplaces 4396854 Rak Kit-sl | $33.48 Part Advantage |
| NI |  | WP676453replaces 676453 Dishwasher Dishrack Vinyl Touch-Up Paint | $14.43 Part Advantage |
| NI |  | WP676455replaces 676455 Dishwasher Dishrack Vinyl Touch-Up Paint (Gray) | $14.11 Part Advantage |
| NI |  | Paint 1qt | - |
| NI | | 4392900NLA Appliance Paint, 1-qt (Bisque) | Discontinued |
| NI |  | Paint (White) | $11.79 Amazon |
