Model
Kenmore 665.16034401
Dishwasher (Kenmore 66516034401)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16034401Dishwasher (Kenmore 66516034401)
11 diagrams175 parts
Parts Sections (11)
Diagram

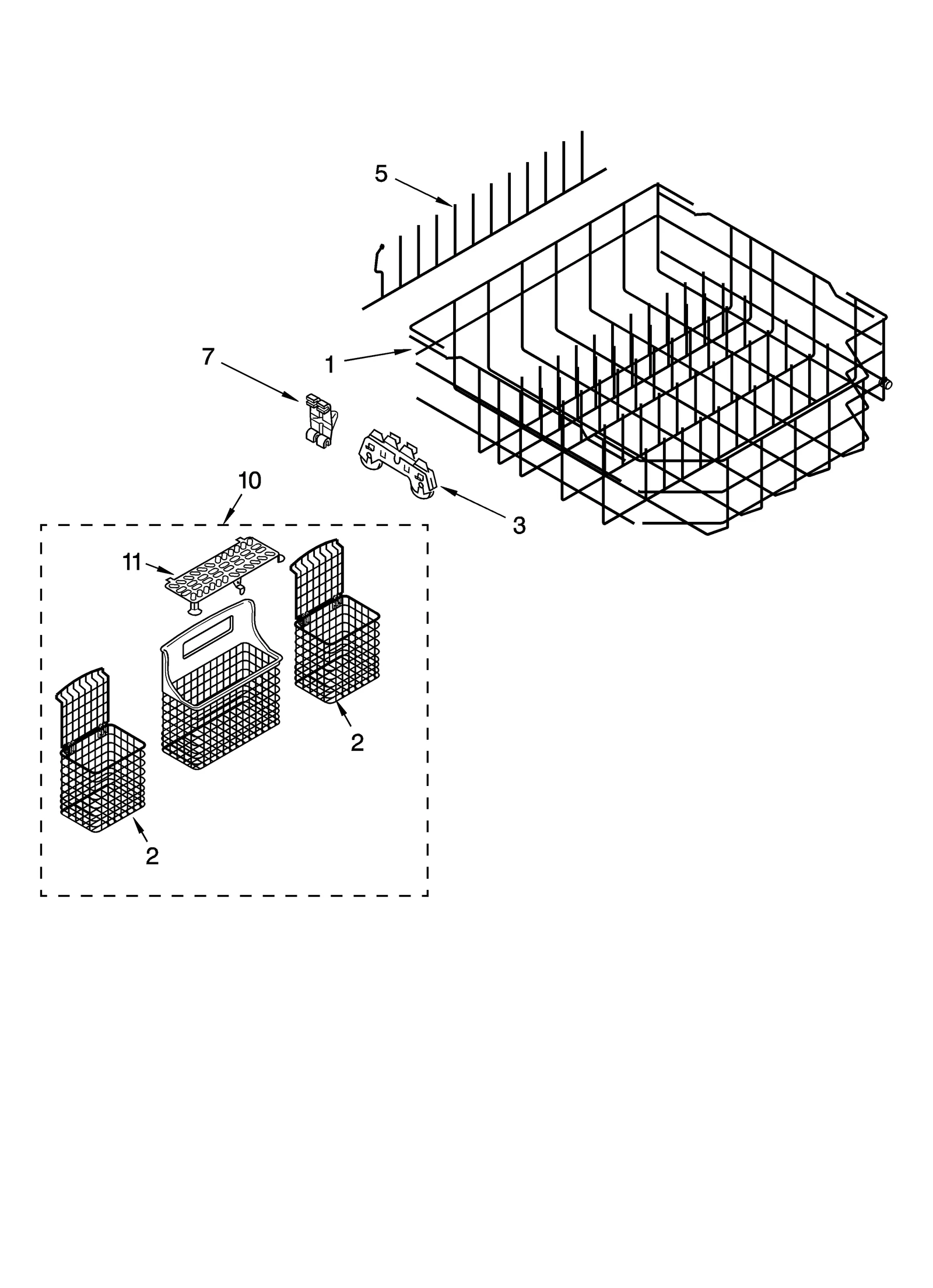

LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
Parts in LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10780925replaces 8539263 Dishrack | $282.36 Parts Dr |
| 2 |  | WP8562090replaces 8539158 Silverware Basket | - |
| 3 |  | WP8268645replaces 8268645 Dishwasher Dishrack Roller Assembly, Lower | $29.04 Part Advantage |
| 5 |  | W10728160replaces 8519589 Dishwasher Tine Row | $27.82 Part Advantage |
| 7 |  | WP8539124replaces 8539124 Retainer | $4.94 Parts Dr |
| 10 |  | W10807920replaces 8562017 Silverware Basket | $24.71 Part Advantage |
| 11 | – | 8539160 Dishwasher Silverware Basket Lid | - |
| NI |  | Spray (Black) | $29.58 Parts Dr |
| NI |  | Dishwasher Power Cord Kit | $9.13 Part Advantage |
| NI |  | Dishwasher Anti-Tip Floor Mounting Kit | $37.90 RepairClinic |
| NI | | Dishwasher Side Panel Kit (Black) | - |
| NI |  | Dishwasher Trim Kit, 6-in | - |
| NI | – | 4396198 6"trim Kit | - |
| NI |  | Paint 1qt | - |
| NI | | 8171656NLA Dishwasher Door Outer Panel | Discontinued |
| NI | | 8171657NLA Dishwasher Side Panel Kit | Discontinued |
| NI | | 8171658NLA Dishwasher Side Panel Kit | Discontinued |
| NI | | 8171659NLA Dishwasher Side Panel Kit | Discontinued |
| NI |  | W10864081replaces 8269110 Seal | $46.16 Part Advantage |
| NI | | 4392900NLA Appliance Paint, 1-qt (Bisque) | Discontinued |
| NI |  | Paint (White) | $11.79 Amazon |
| NI |  | Danby Appliance Touch-Up Paint, 0.6-oz (White) | $3.58 Part Advantage |
| NI |  | Appliance Touch-Up Paint, 0.6-oz (Black) | $5.12 Part Advantage |
