Model
Kenmore 665.16042403
Dishwasher (Kenmore 66516042403)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16042403Dishwasher (Kenmore 66516042403)
11 diagrams166 parts
Parts Sections (11)
Diagram

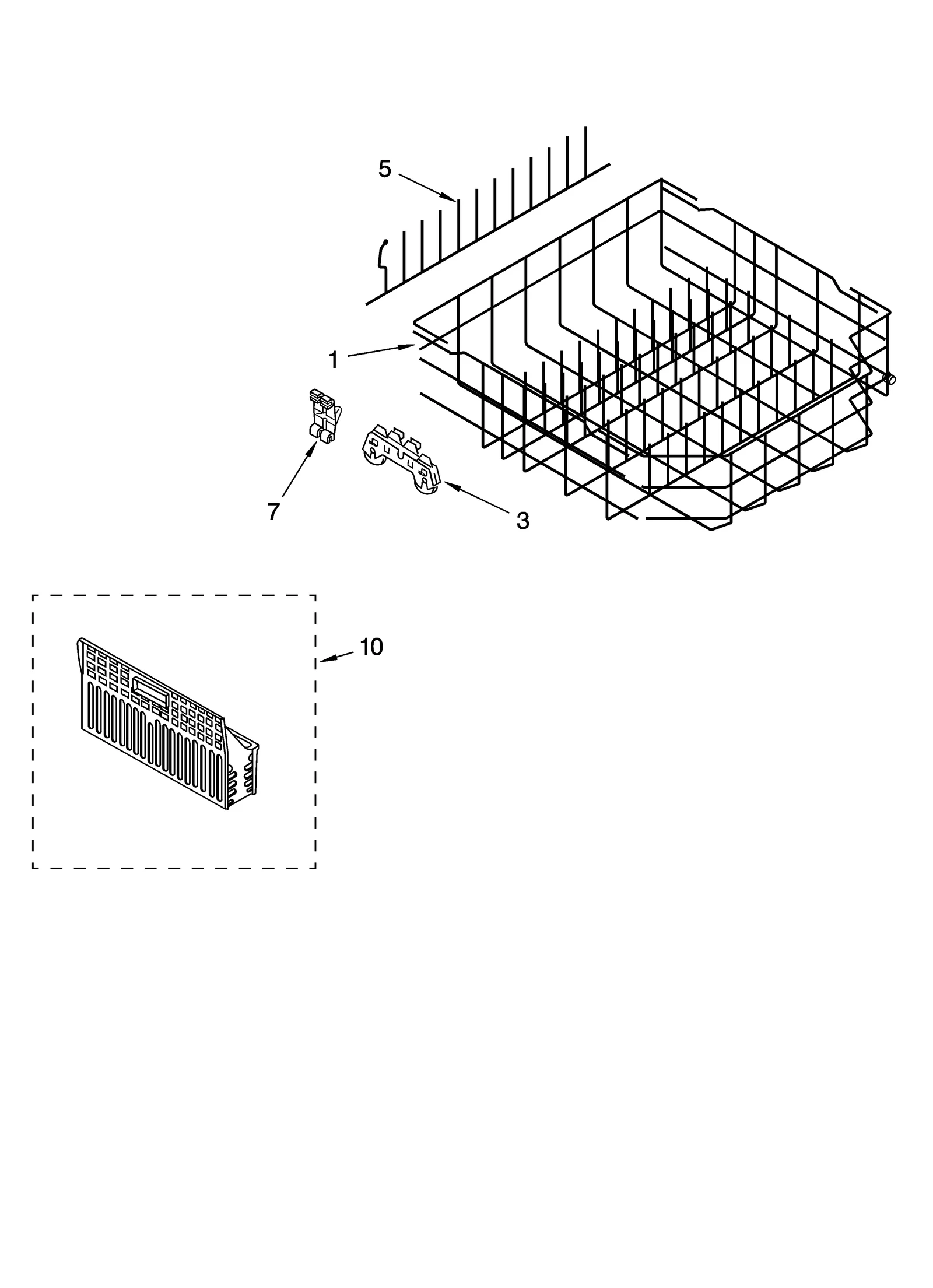

LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
Parts in LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
31 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10780925replaces 8539263 Dishrack | $282.36 Parts Dr |
| 3 |  | WP8268645replaces 8268645 Dishwasher Dishrack Roller Assembly, Lower | $29.04 Part Advantage |
| 5 |  | W10728160replaces 8519589 Dishwasher Tine Row | $27.82 Part Advantage |
| 7 |  | WP8539124replaces 8539124 Retainer | $4.94 Parts Dr |
| 10 |  | W11772520replaces 8562045 Dishwasher Silverware Basket | $25.17 Part Advantage |
| NI |  | Spray (Black) | $29.58 Parts Dr |
| NI |  | Paint (Almond) | $24.47 Parts Dr |
| NI |  | Dishwasher Power Cord Kit | $9.13 Part Advantage |
| NI |  | Dishwasher Moisture Barrier Kit | $32.15 RepairClinic |
| NI |  | 4396838RCreplaces 4396838 Dishwasher Dishrack Tine Tip Repair Kit (White) | $33.48 Part Advantage |
| NI |  | 4396840RCreplaces 4396840 Rak Kit-gr | $33.48 Part Advantage |
| NI |  | Magic Chef Dishwasher Dishrack Vinyl Touch-Up Paint, 4-oz (Silver Atlantis) | $37.11 RepairClinic |
| NI | | 4396840RCreplaces 4396854 Rak Kit-sl | $33.48 Part Advantage |
| NI | | Panel-wh | $120.97 RepairClinic |
| NI | – | 4396856 Dishwasher Door Outer Panel | - |
| NI | – | 4396857 Panel-bsq | - |
| NI |  | WP676453replaces 676453 Dishwasher Dishrack Vinyl Touch-Up Paint | $14.43 Part Advantage |
| NI |  | WP676455replaces 676455 Dishwasher Dishrack Vinyl Touch-Up Paint (Gray) | $14.11 Part Advantage |
| NI |  | WP72107replaces 72107 Touch-Up Paint | $5.31 Part Advantage |
| NI |  | Paint 1qt | - |
| NI |  | Dishwasher Anti-Tip Floor Mounting Kit | $39.59 RepairClinic |
| NI | | 8171656NLA Dishwasher Door Outer Panel | Discontinued |
| NI | | 8171657NLA Dishwasher Side Panel Kit | Discontinued |
| NI | | 8171658NLA Dishwasher Side Panel Kit | Discontinued |
| NI | | 8171659NLA Dishwasher Side Panel Kit | Discontinued |
| NI | | 978883NLA Paint | Discontinued |
| NI | | 4392900NLA Appliance Paint, 1-qt (Bisque) | Discontinued |
| NI |  | Appliance Touch-Up Paint, 0.6-oz (Black) | $5.12 Part Advantage |
| NI |  | Dishwasher Drain Hose | $12.49 Part Advantage |
| NI |  | Paint (White) | $11.79 Amazon |
| NI |  | Danby Appliance Touch-Up Paint, 0.6-oz (White) | $3.58 Part Advantage |
