Model
Kenmore 665.16222503
Dishwasher (Kenmore 66516222503)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16222503Dishwasher (Kenmore 66516222503)
11 diagrams170 parts
Parts Sections (11)
Diagram

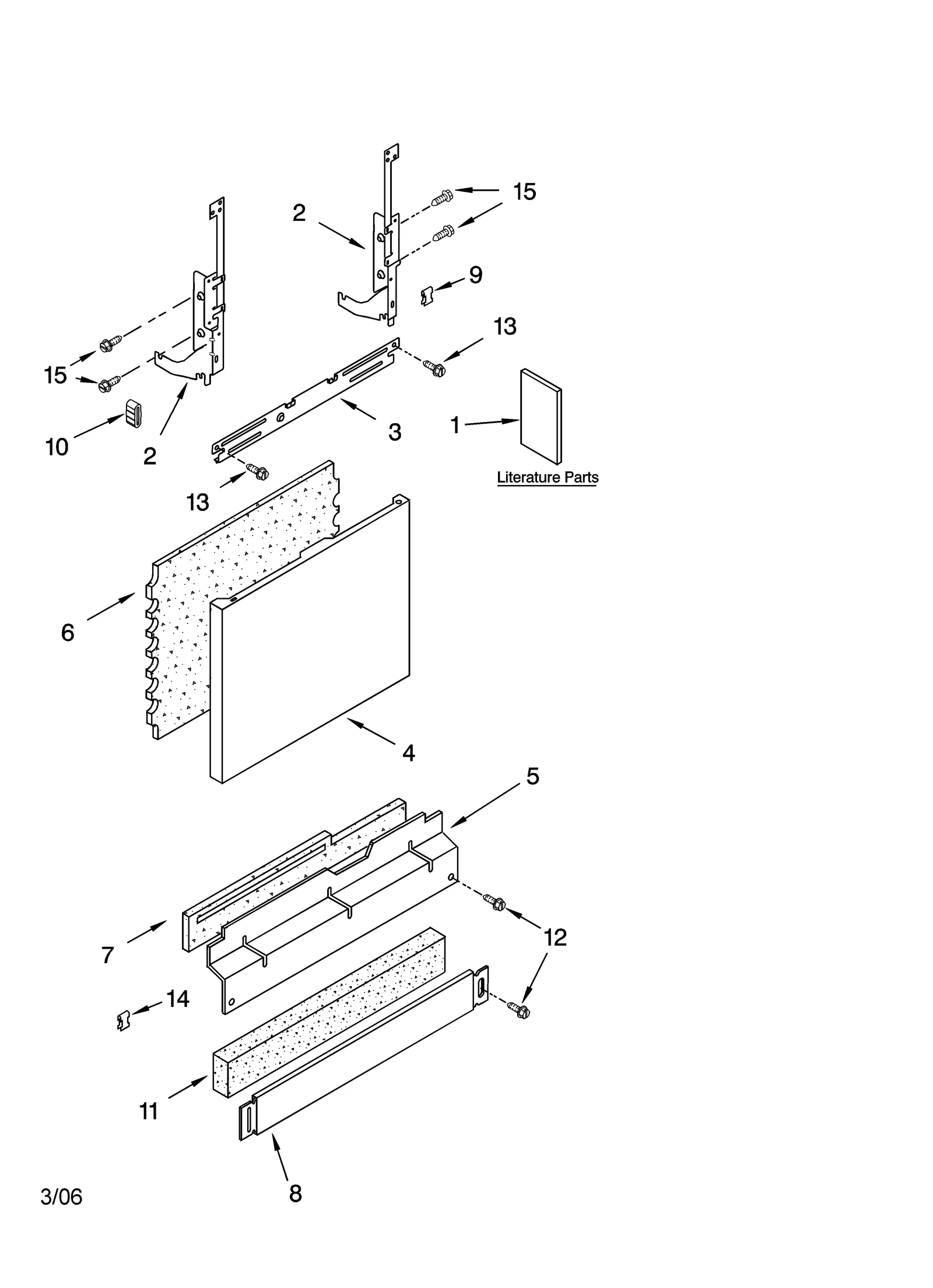

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8573156 Dishwasher Installation Instructions | - |
| 1A | – | 8559828 Dishwasher Energy Guide | - |
| 1B | – | 8559859 Dishwasher Owner's Manual | - |
| 1C |  | 8572216NLA Technical Sheet | Discontinued |
| 2 |  | W11613573replaces 8534858 Hinge Bracket | - |
| 2A |  | W11613572replaces 8534857 Hinge Bracket | $33.01 Parts Dr |
| 3 | | 8268983NLA Stiffner | Discontinued |
| 4 |  | W10301571replaces 8269841 Panel (Black) | $158.95 ApplianceParts Pro |
| 4A | | 8269842NLA Dishwasher Door Outer Panel (White) | Discontinued |
| 4B |  | W10301577replaces 8269845 Panel-s/s | - |
| 5 |  | W11763736replaces 8558256 Panel | $16.47 Part Advantage |
| 5A | | Panel | - |
| 6 |  | WPW10073520replaces 8268580 Pad Insert | $50.57 ApplianceParts Pro |
| 7 |  | W10831329replaces 8268584 Insulation | $15.72 Part Advantage |
| 8 |  | W10871196replaces 8558252 Dishwasher Door Panel | $66.43 Amazon |
| 8A |  | WPW10586591replaces 8558253 Dishwasher Toe Panel | $154.38 RepairClinic |
| 9 | | Clip | - |
| 10 |  | WP8268961replaces 8268961 Dishwasher Hinge Friction Sleeve | $3.20 Part Advantage |
| 11 | | W10831329replaces 8268581 Shield | $15.72 Part Advantage |
| 12 |  | WP302868replaces 302868 Dishwasher Screw | $2.30 Part Advantage |
| 12A |  | WP3400836replaces 3400836 Dishwasher Screw | $2.30 Part Advantage |
| 14 |  | WP8269016replaces 8269016 Dishwasher Toe Panel Clip | $6.90 RepairClinic |
| 15 |  | WPW10109200replaces 489470 Screw | $2.30 Part Advantage |
