Model
Kenmore 665.16379300
Undercounter Dishwasher (Kenmore 66516379300)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16379300Undercounter Dishwasher (Kenmore 66516379300)
12 diagrams185 parts
Parts Sections (12)
Diagram

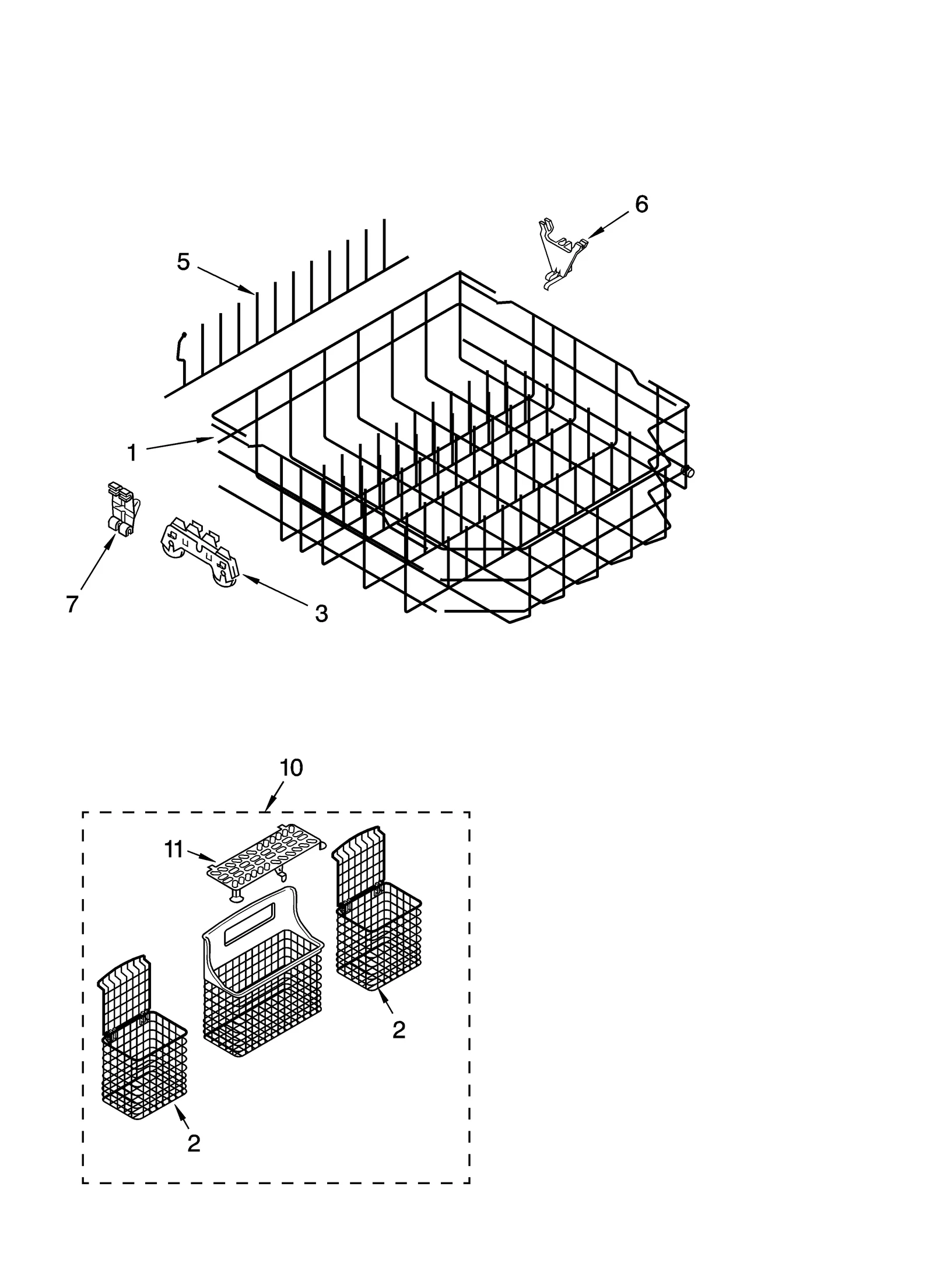

LOWER RACK PARTS
Parts in LOWER RACK PARTS
8 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10780925replaces 8268642 Dishwasher Dishrack, Lower | $282.36 Parts Dr |
| 2 |  | WP8562090replaces 9744545 Silverware Basket | - |
| 3 |  | WP8268645replaces 8268645 Dishwasher Dishrack Roller Assembly, Lower | $29.04 Part Advantage |
| 5 |  | W10728160replaces 9744552 Tine Row | $27.82 Part Advantage |
| 6 |  | WP8268523replaces 8268523 Dishwasher Tine Pivot Clip | $30.47 ApplianceParts Pro |
| 7 |  | Dishwasher Tine Row Clip | - |
| 10 |  | W10807920replaces 9744544 Silverware Basket | $24.71 Part Advantage |
| 11 | – | 9744547 Lid | - |
