Model
Kenmore 665.16503200
Undercounter Dishwasher (Kenmore 66516503200)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16503200Undercounter Dishwasher (Kenmore 66516503200)
12 diagrams164 parts
Parts Sections (12)
Diagram

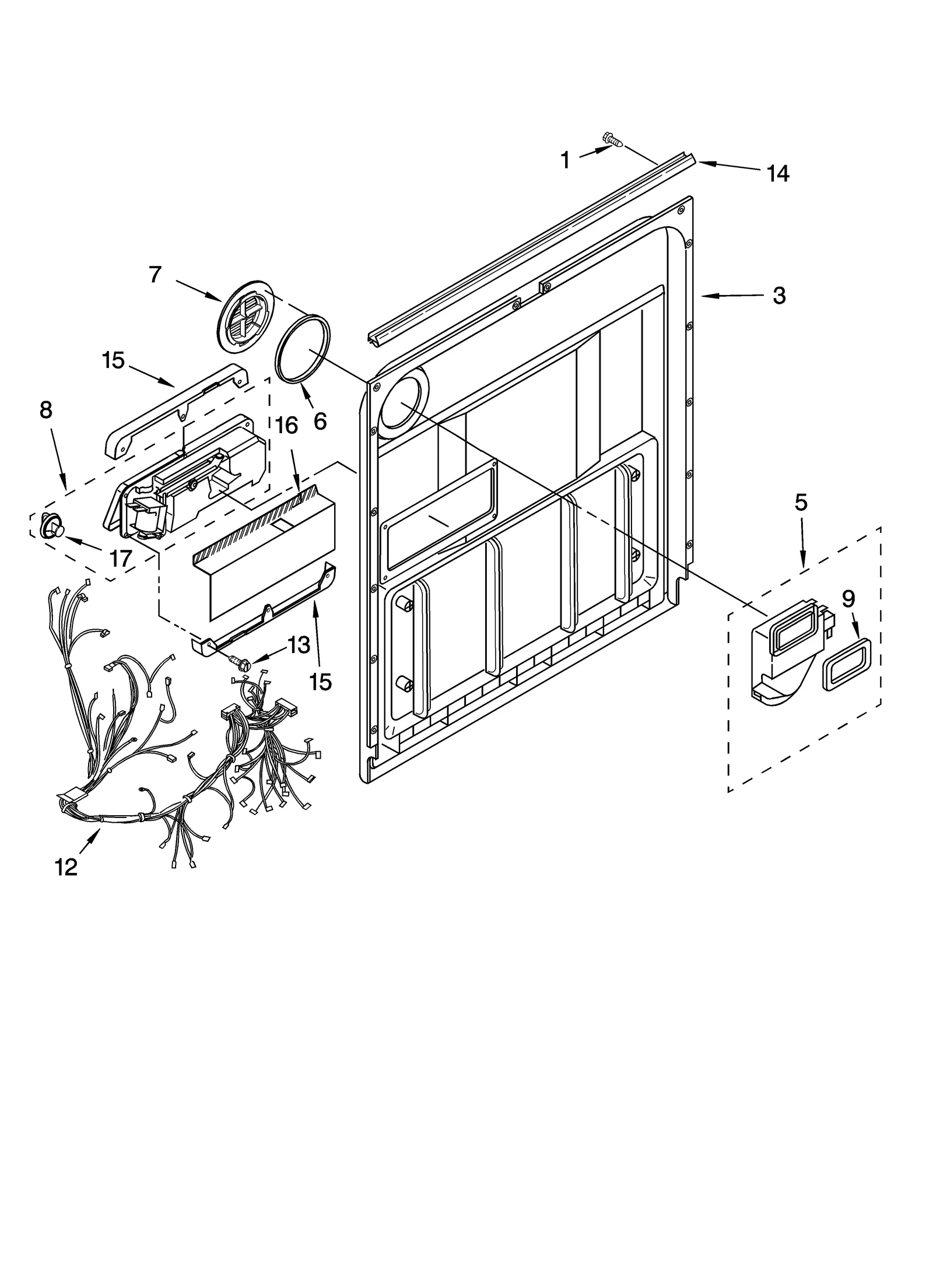

DOOR AND LATCH PARTS
Parts in DOOR AND LATCH PARTS
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10348409replaces 3369051 Dishwasher Screw | $2.30 Part Advantage |
| 3 |  | WP3378179replaces 3378179 Dishwasher Door Inner Panel | $107.38 ApplianceParts Pro |
| 5 |  | WP8545533replaces 8269251 Vent | $104.34 ApplianceParts Pro |
| 6 |  | WP8269259replaces 8269259 Dishwasher Vent Gasket | $26.73 Part Advantage |
| 7 |  | WP8558991replaces 8269261 Deflector | $11.11 ApplianceParts Pro |
| 8 |  | WP8558129replaces 8270032 Dishwasher Dispenser | $46.05 Part Advantage |
| 9 |  | WP8269258replaces 8269258 Dishwasher Door Vent Gasket | $31.09 Parts Dr |
| 12 |  | 8534931NLA Dishwasher Wire Harness | Discontinued |
| 13 |  | WPW10177098replaces 8281154 Screw | $3.31 Part Advantage |
| 14 |  | WP8269296replaces 8269296 Dishwasher Control Panel Seal | $75.95 ApplianceParts Pro |
| 15 |  | WPW10462232replaces 8269743 Dispenser Bracket | $11.10 Part Advantage |
| 16 | | Shield | - |
| 17 |  | WP8533380replaces 8533379 Cap | $11.60 Part Advantage |
