Model
Kenmore 665.16539201
Undercounter Dishwasher (Kenmore 66516539201)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16539201Undercounter Dishwasher (Kenmore 66516539201)
12 diagrams183 parts
Parts Sections (12)
Diagram

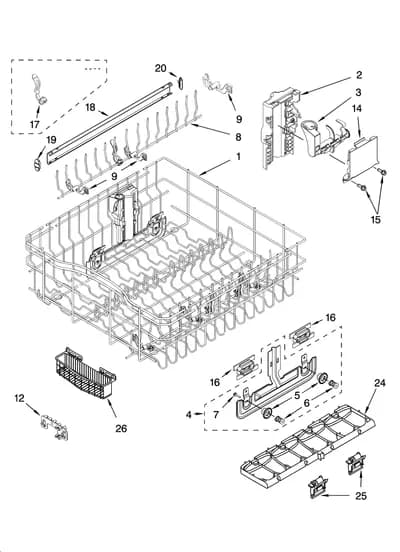

UPPER RACK AND TRACK PARTS
Parts in UPPER RACK AND TRACK PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10350382replaces 8519628 Dishrack | $140.00 Part Advantage |
| 2 |  | 8531343NLA Housing | Discontinued |
| 3 |  | WP8268751replaces 8268751 Dishwasher Dishrack Adjuster | $50.63 ApplianceParts Pro |
| 3A | | 8268750NLA Dishwasher Dishrack Adjuster | Discontinued |
| 4 |  | W10728849replaces 8268654 Dishwasher Dishrack Adjuster | $67.82 Parts Dr |
| 5 |  | WP3385088replaces 3385088 Dishwasher Dishrack Wheel | $4.52 Part Advantage |
| 6 |  | WP8268703replaces 8268703 Dishwasher Dishrack Roller Axle, Upper | $4.07 Part Advantage |
| 7 |  | WP8281156replaces 8281156 Rack Wheel Screw | $3.62 Parts Dr |
| 8 |  | W10727426replaces 8268689 Dishwasher Tine Row | $33.11 Part Advantage |
| 9 |  | WP8519651replaces 8519651 Dishwasher Tine Pivot Clip | $1.95 ApplianceParts Pro |
| 12 | | Positioner | Discontinued |
| 14 | | 8531345NLA Dishwasher Cover | Discontinued |
| 15 |  | WP9741232replaces 9741232 Dishwasher Screw | $2.30 Part Advantage |
| 16 | | 8268704NLA Dishwasher Dishrack Adjuster Arm Positioner | Discontinued |
| 17 |  | WP8268669replaces 8268669 Clip | $1.16 RepairClinic |
| 18 |  | WP3385089replaces 3385089 Dishwasher Dishrack Slide Rail | $30.30 Part Advantage |
| 19 | | Dishwasher Dishrack Slide Rail Stop | - |
| 20 |  | WP8565925replaces 8524581 Stop | $3.45 Part Advantage |
| 24 | | Cup Shelf | - |
| 25 |  | Dishwasher Tine Row Clip | - |
| 26 | – | 8269701 Silverware Basket | - |
