Model
Kenmore 665.16552202
Undercounter Dishwasher (Kenmore 66516552202)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16552202Undercounter Dishwasher (Kenmore 66516552202)
12 diagrams166 parts
Parts Sections (12)
Diagram

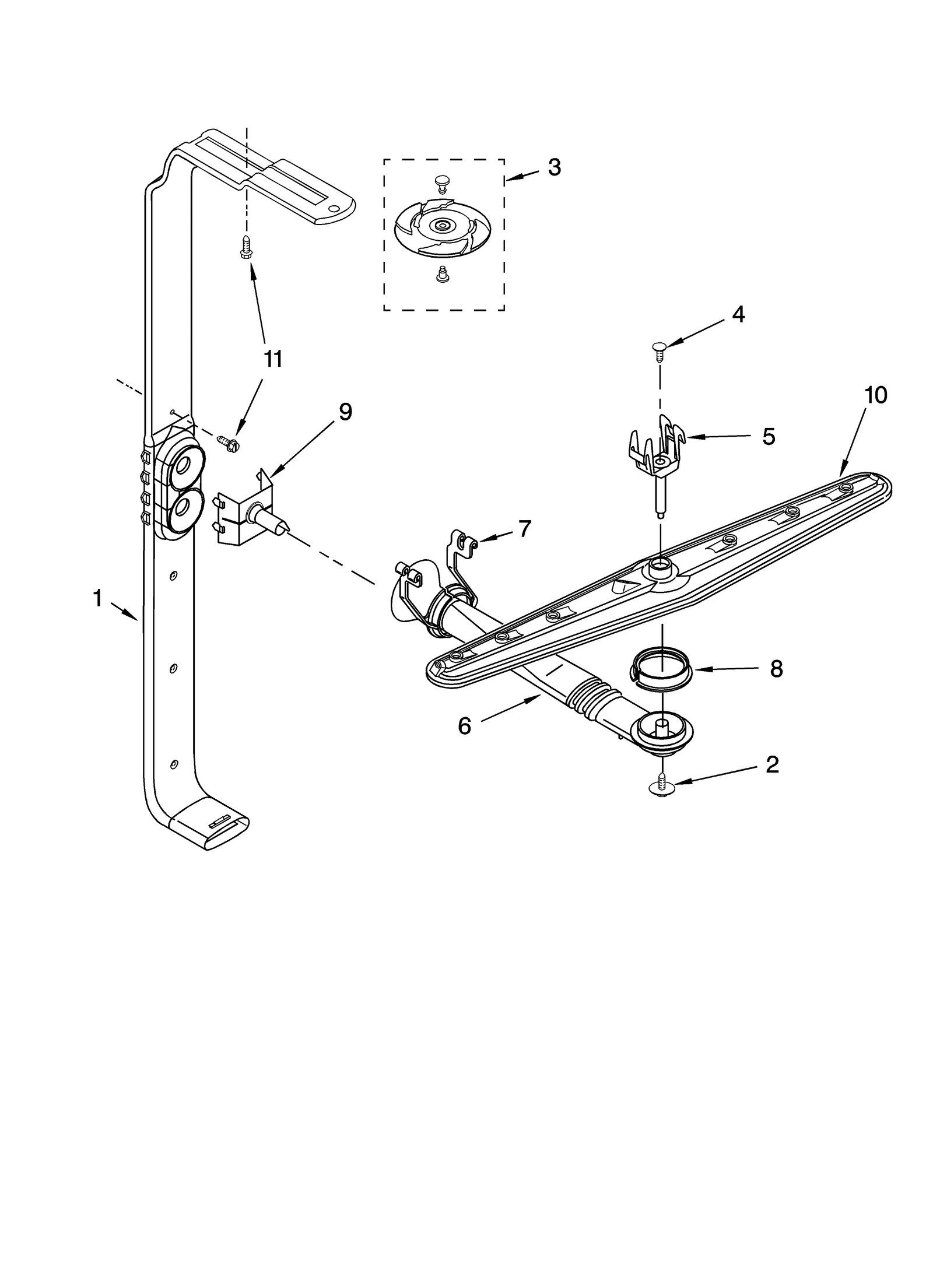

UPPER WASH AND RINSE PARTS
Parts in UPPER WASH AND RINSE PARTS
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | 8539165 Tube | - |
| 2 |  | WPW10349488replaces 8533889 Dishwasher Screw | $2.30 Part Advantage |
| 3 |  | 8193768replaces 8519736 Spinner | $9.61 Part Advantage |
| 4 |  | WP3400919replaces 3400919 Dishwasher Screw | $6.88 RepairClinic |
| 5 |  | WP8539324replaces 8539324 Dishwasher Upper Spray Arm Mount | $3.20 Part Advantage |
| 6 |  | WP8268326replaces 8268326 Dishwasher Upper Dishrack Spray Arm Tube | $52.67 PartSelect |
| 7 |  | WP8268843replaces 8268843 Dishwasher Upper Spray Arm Manifold Retainer | $29.39 Part Advantage |
| 8 |  | WP8268433replaces 8268433 Dishwasher Upper Spray Arm Seal | $4.27 Part Advantage |
| 9 |  | 8269295NLA Dishwasher Spray Arm Manifold Receiver | Discontinued |
| 10 |  | WP8535083replaces 8269022 Dishwasher Spray Arm | $29.93 Part Advantage |
| 11 |  | WP489443replaces 3400850 Screw | $3.72 Parts Dr |
