Model
Kenmore 665.16589202
Undercounter Dishwasher (Kenmore 66516589202)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16589202Undercounter Dishwasher (Kenmore 66516589202)
12 diagrams203 parts

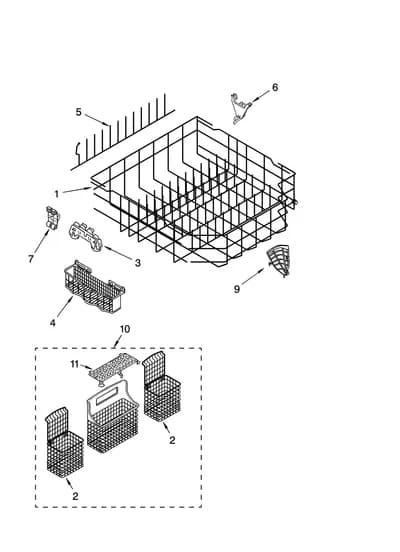

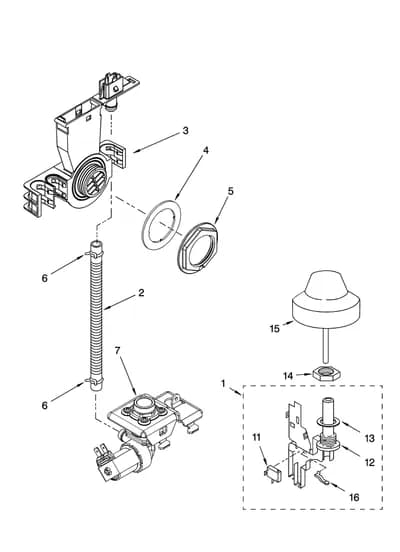

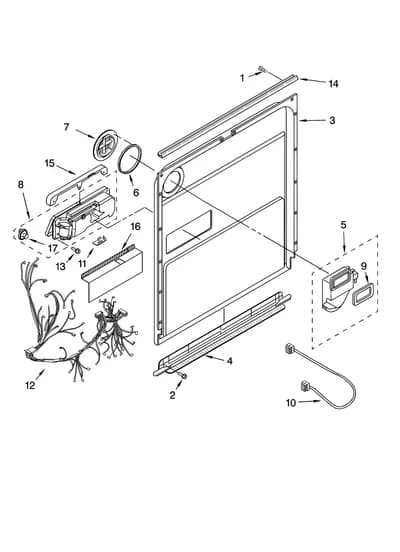

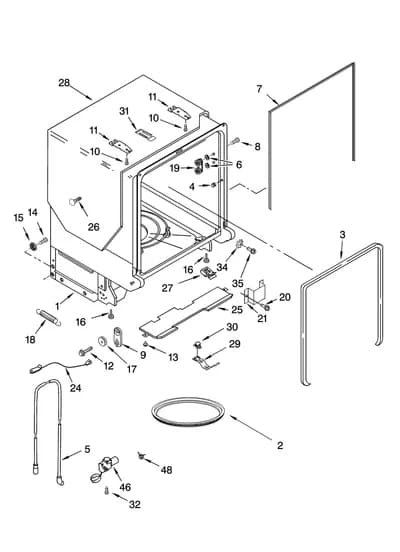

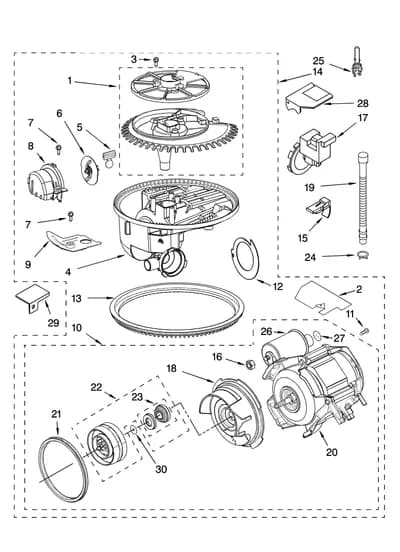

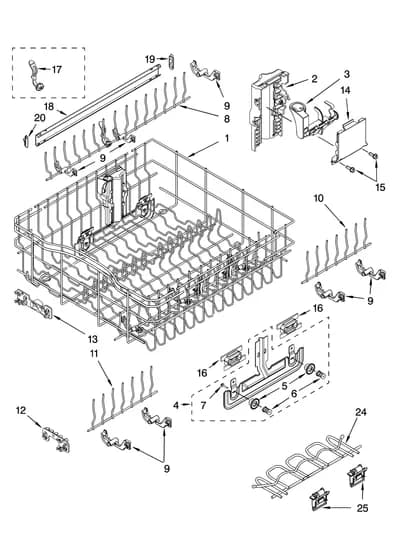

Parts Sections (12)
Diagram

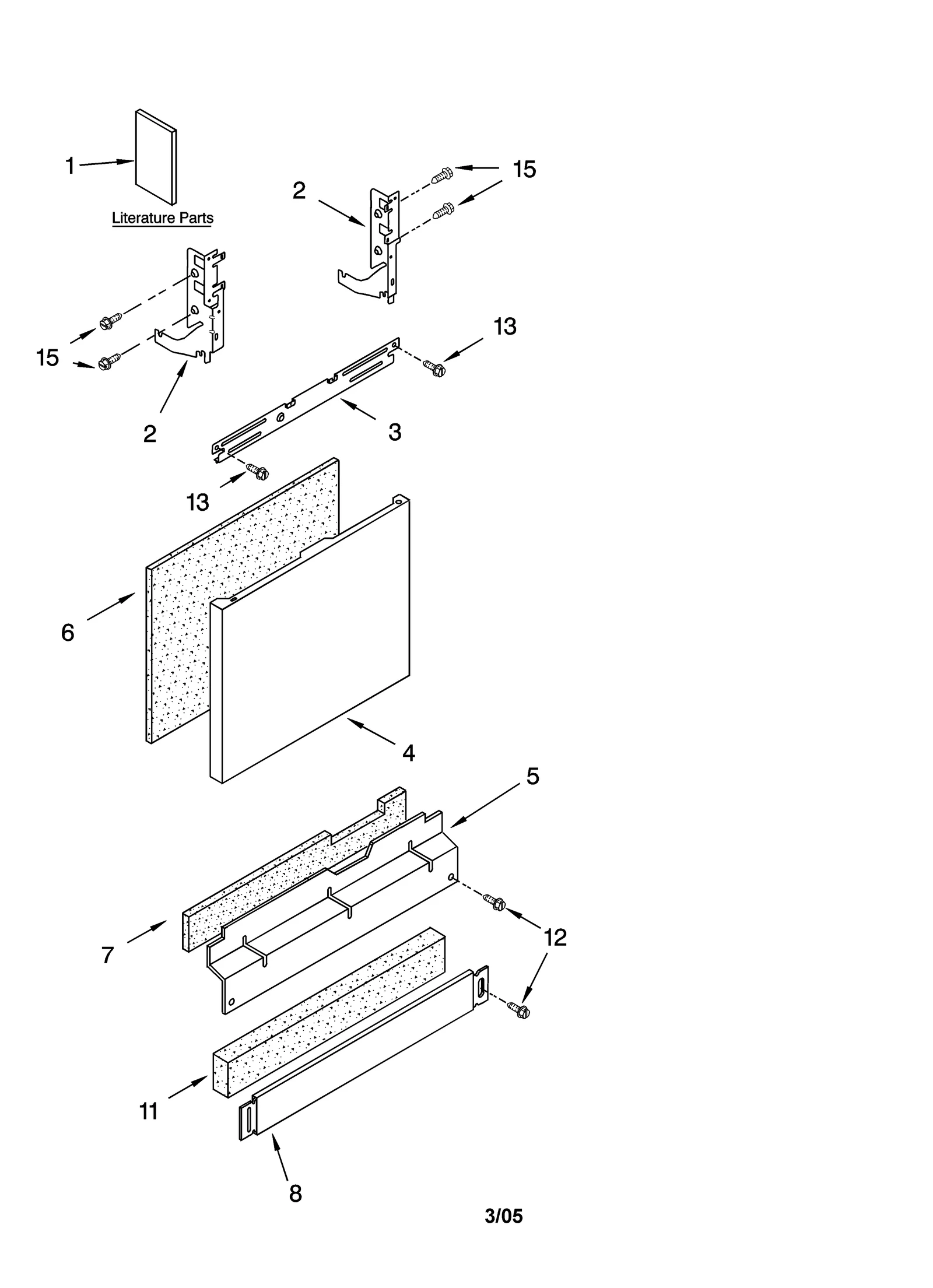

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | LIT8269310 Instruction Manual | - |
| 1A | – | LIT8539343 Energy Guide | - |
| 1B | – | LIT8539327 LITERATURE PARTS (GUIDE, USE & CARE TECH SHEET) | - |
| 1C | – | LIT8537797 Technical Sheet | - |
| 1D | – | LIT8544470 LITERATURE PARTS (PARTS LIST, SERVICE) | - |
| 2 |  | W11612302replaces 8534854 Dishwasher Door Hinge | $77.34 PartSelect |
| 2A |  | W11612303replaces 8534853 Dishwasher Right Side Door Hinge Assembly | $60.05 Part Advantage |
| 3 |  | 8268983NLA Stiffner | Discontinued |
| 4 |  | W10301571replaces 8269841 Panel (Black) | $158.95 ApplianceParts Pro |
| 4A | | 8269842NLA Dishwasher Door Outer Panel (White) | Discontinued |
| 4B |  | W10384707replaces 8269844 Panel (Bisque) | $208.43 PartSelect |
| 4C |  | W10301577replaces 8269845 Panel-s/s | - |
| 5 |  | W11763736replaces 8269007 Panel | $16.47 Part Advantage |
| 5A | | Panel | - |
| 5B |  | W10871198replaces 8269009 Panel | - |
| 6 |  | WPW10073520replaces 8268580 Pad Insert | $50.57 ApplianceParts Pro |
| 7 |  | W10831329replaces 8268584 Insulation | $15.72 Part Advantage |
| 8 |  | W10871196replaces 8270026 Dishwasher Toe Panel (Black) | $66.43 Amazon |
| 8A |  | WPW10586591replaces 8270027 Dishwasher Toe Panel (White) | $154.38 RepairClinic |
| 8B | | 8270028NLA Dishwasher Toe Panel (Bisque) | Discontinued |
| 11 | | W10831329replaces 8268581 Shield | $15.72 Part Advantage |
| 12 |  | WP302868replaces 302868 Dishwasher Screw | $2.30 Part Advantage |
| 12A |  | WP3400836replaces 3400836 Dishwasher Screw | $2.30 Part Advantage |
| 12B |  | WPW10503550replaces 3400865 Dishwasher Screw | $22.41 ApplianceParts Pro |
| 13 |  | WP489069replaces 304392 Appliance Screw | $2.30 Part Advantage |
| 15 |  | WP3400071replaces 3400071 Dishwasher Control Panel Seal Screw | $2.30 Part Advantage |
