Model
Kenmore 665.16609300
Undercounter Dishwasher (Kenmore 66516609300)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16609300Undercounter Dishwasher (Kenmore 66516609300)
12 diagrams167 parts
Parts Sections (12)
Diagram

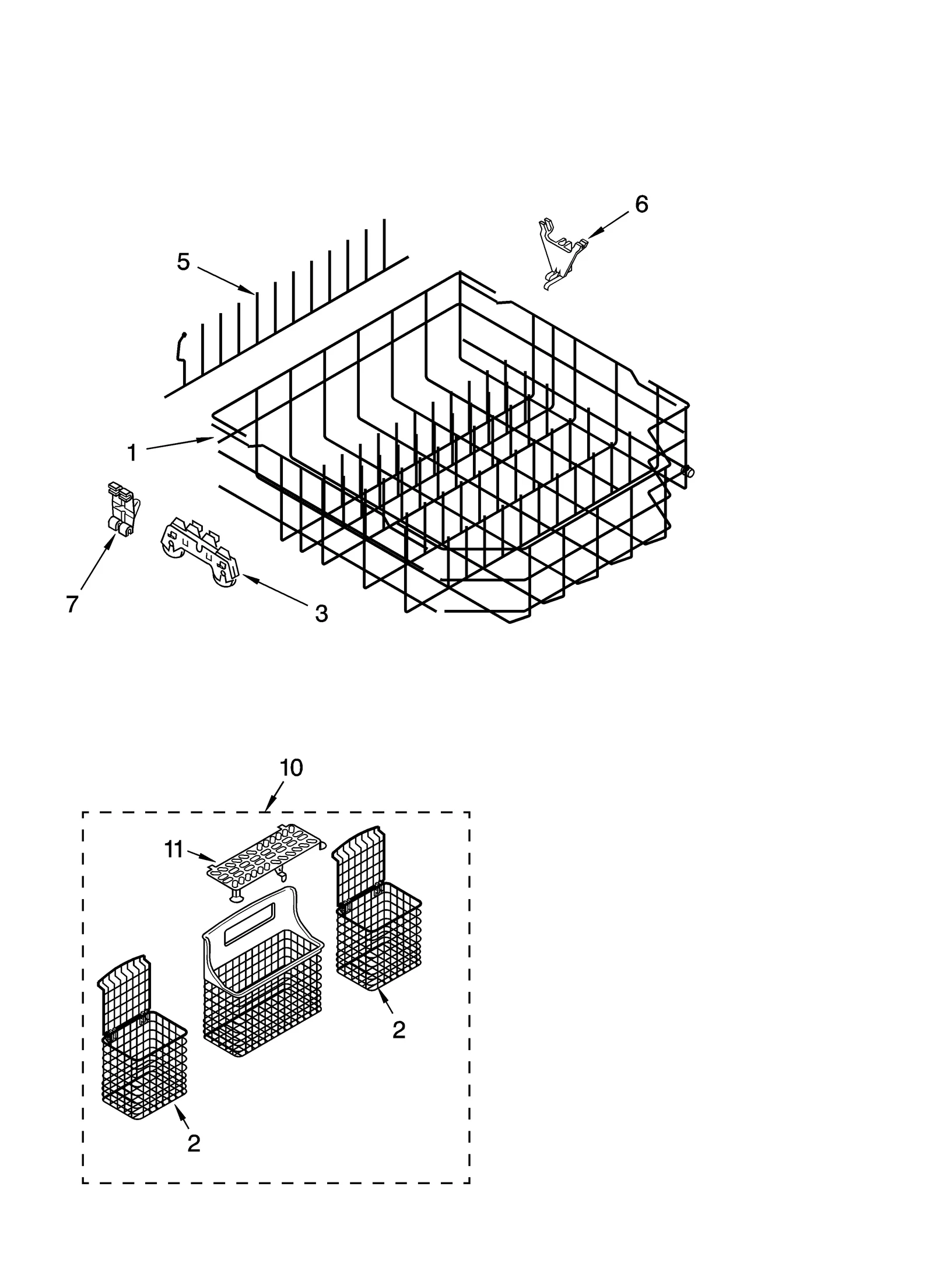

LOWER RACK PARTS
Parts in LOWER RACK PARTS
8 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10780925replaces 8268642 Dishwasher Dishrack, Lower | $282.36 Parts Dr |
| 2 |  | W10813433replaces 8268832 Basket | $23.37 Parts Dr |
| 3 |  | WP8268645replaces 8268645 Dishwasher Dishrack Roller Assembly, Lower | $29.04 Part Advantage |
| 5 |  | W10728160replaces 8519589 Dishwasher Tine Row | $27.82 Part Advantage |
| 6 |  | WP8268523replaces 8268523 Dishwasher Tine Pivot Clip | $30.47 ApplianceParts Pro |
| 7 |  | WP8268522replaces 8268522 Dishwasher Tine Row Retainer | - |
| 10 |  | W10807920replaces 8268858 Silverware Basket | $24.71 Part Advantage |
| 11 |  | Lid | - |
