Model
Kenmore 665.16693200
Dishwasher (Kenmore 66516693200)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16693200Dishwasher (Kenmore 66516693200)
12 diagrams192 parts
Parts Sections (12)
Diagram

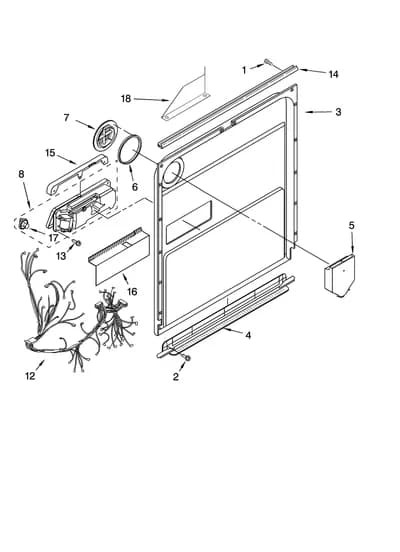

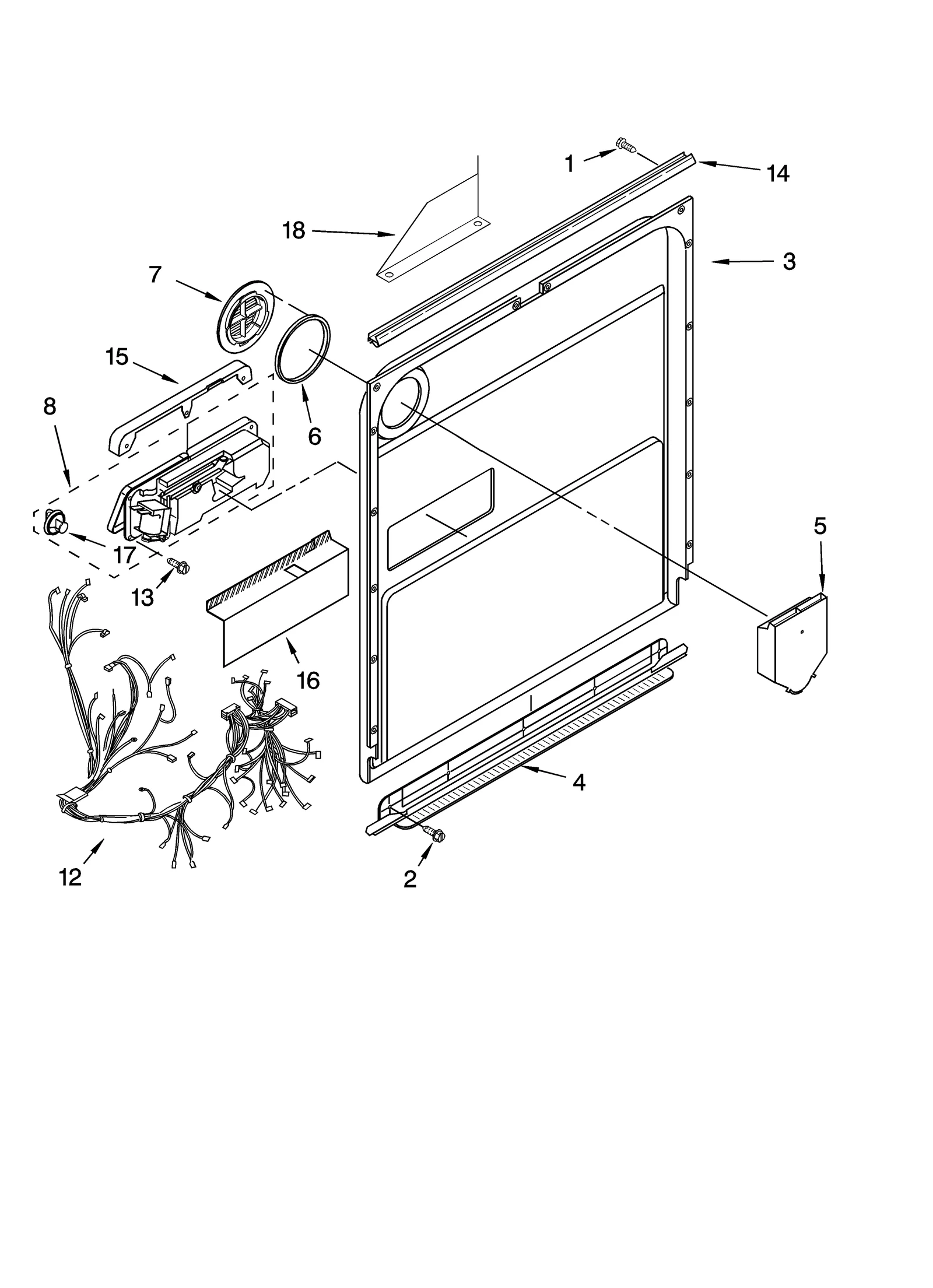

DOOR AND LATCH PARTS
Parts in DOOR AND LATCH PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10348409replaces 3369051 Dishwasher Screw | $2.30 Part Advantage |
| 2 |  | Refrigerator Door Trim Screw | $4.17 Part Advantage |
| 3 |  | 8530900NLA Door | Discontinued |
| 4 |  | WP8268937replaces 8268937 Dishwasher Air Inlet | $27.23 Part Advantage |
| 5 |  | W10328540replaces 8531759 Vent | - |
| 6 |  | WP8269259replaces 8269259 Dishwasher Vent Gasket | $26.73 Part Advantage |
| 7 |  | WP8545536replaces 8545536 Deflector | $57.72 RepairClinic |
| 8 |  | WP8558129replaces 9744542 Dishwasher Dispenser | $46.05 Part Advantage |
| 12 | | 8534932NLA Dishwasher Wire Harness | Discontinued |
| 13 |  | WPW10177098replaces 8281154 Screw | $3.31 Part Advantage |
| 14 |  | WP8535660replaces 8269143 Seal | $80.42 ApplianceParts Pro |
| 15 |  | WPW10462232replaces 8269743 Dispenser Bracket | $11.10 Part Advantage |
| 16 | | Shield | - |
| 17 |  | WP8558307replaces 8539095 Cap | $12.14 Part Advantage |
| 18 | – | 8531799 Shield | - |
