Model
Kenmore 665.16693201
Undercounter Dishwasher (Kenmore 66516693201)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16693201Undercounter Dishwasher (Kenmore 66516693201)
12 diagrams184 parts
Parts Sections (12)
Diagram

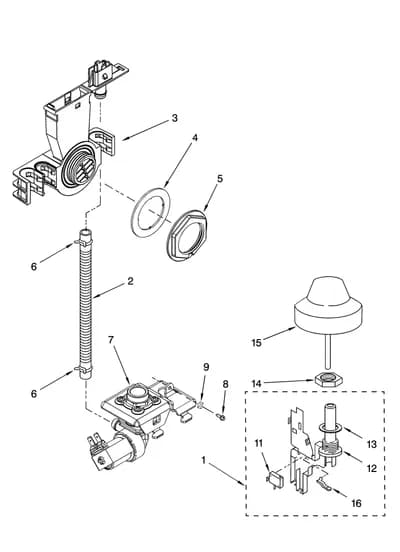

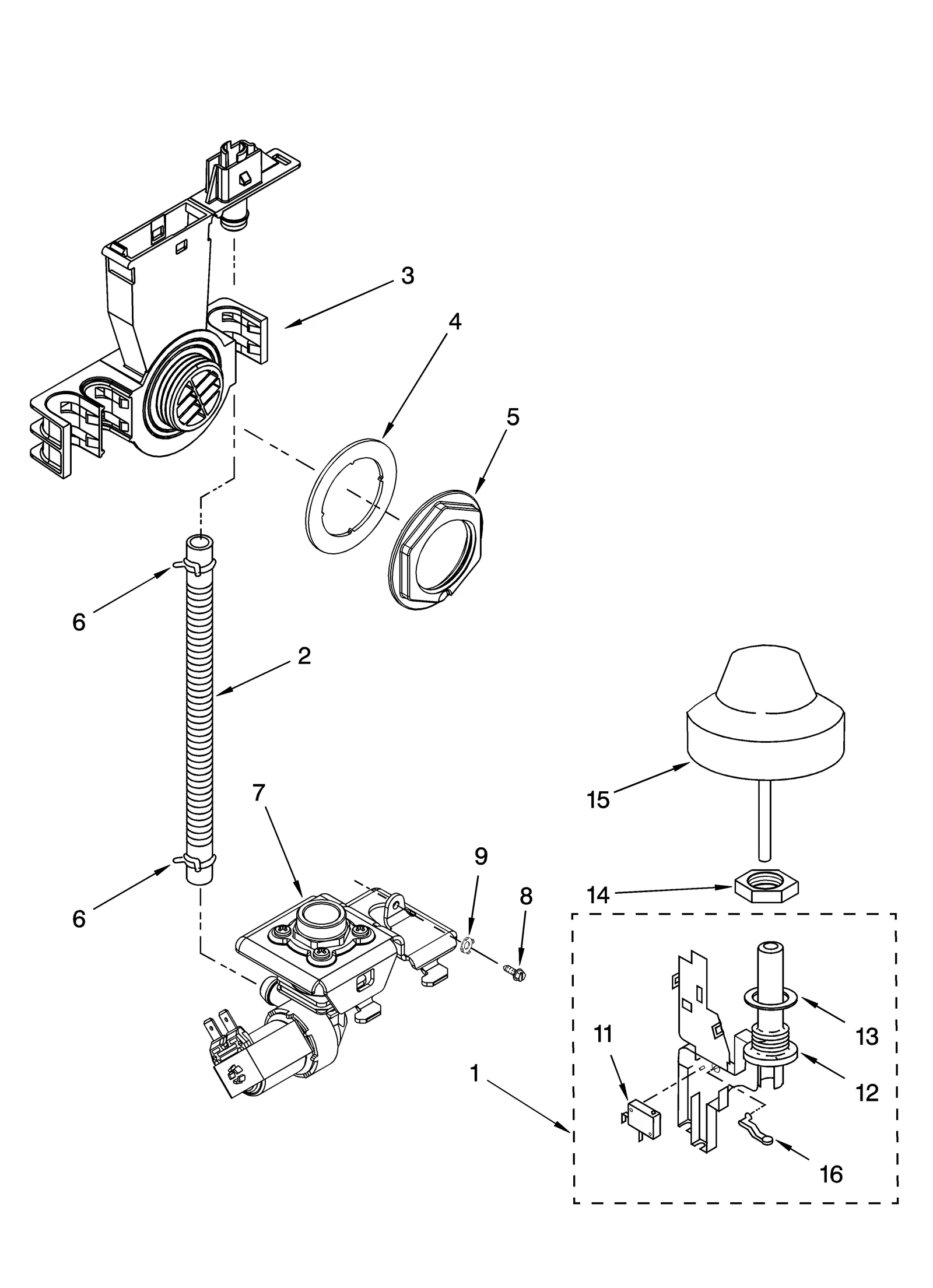

FILL AND OVERFILL PARTS
Parts in FILL AND OVERFILL PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 8193506replaces 8268889 Switch | $73.61 Parts Dr |
| 2 |  | W10878507replaces 8531412 Dishwasher Water Inlet Tubing | $34.90 Part Advantage |
| 3 |  | WPW10195536replaces 8531325 Water Inlet | $37.56 Part Advantage |
| 4 |  | WP8531323replaces 8531323 Dishwasher Water Inlet Port Gasket | $11.93 Part Advantage |
| 5 |  | WPW10508676replaces 8531327 Nut Tube | $14.62 Parts Dr |
| 6 |  | WP596669replaces 371505 Clamp | $2.30 Part Advantage |
| 7 |  | WP8531669replaces 8531671 Dishwasher Water Inlet Valve | $29.86 Part Advantage |
| 8 |  | WP3400014replaces 3400014 Dishwasher Screw | $5.00 RepairClinic |
| 9 |  | WP3378128replaces 3378128 Dishwasher Pronged Washer | $7.43 ApplianceParts Pro |
| 11 |  | WP8268909replaces 8268909 Dishwasher Float Switch | $29.35 Part Advantage |
| 12 | | 8193506replaces 8268891 Standpipe | $73.61 Parts Dr |
| 13 |  | WP8531743replaces 8531743 Dishwasher Float Switch Base Gasket | $19.46 Part Advantage |
| 14 |  | WP9741998replaces 9741998 Dishwasher Overfill Standpipe Nut | $5.95 ApplianceParts Pro |
| 15 |  | WP8268895replaces 8268895 Dishwasher Float Assembly | $54.25 ApplianceParts Pro |
| 16 |  | WP8268892replaces 8268892 Overflow Lever | - |
