Model
Kenmore 665.16874000
Dishwasher (Kenmore 66516874000)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16874000Dishwasher (Kenmore 66516874000)
12 diagrams170 parts
Parts Sections (12)
Diagram

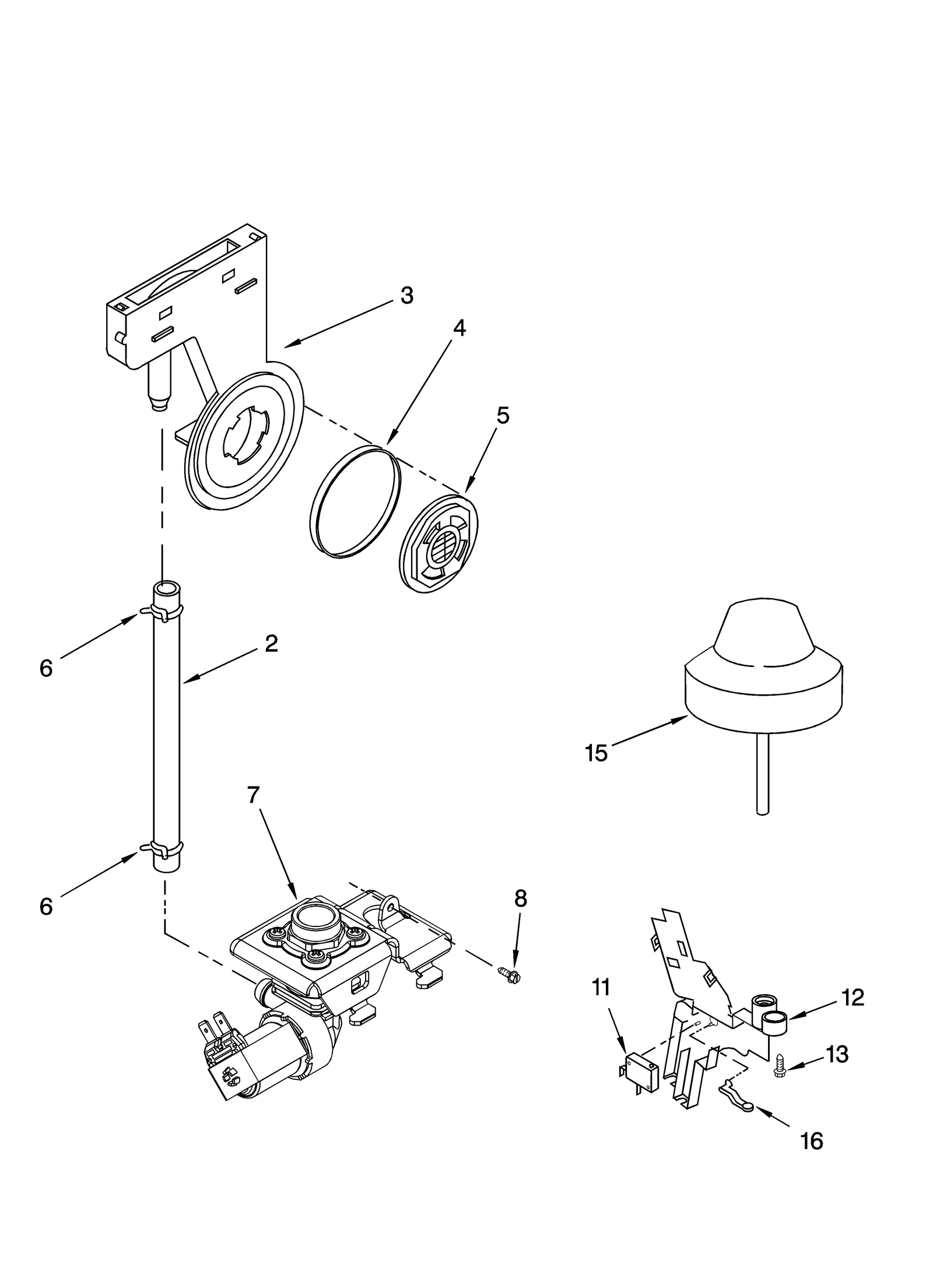

FILL AND OVERFILL PARTS
Parts in FILL AND OVERFILL PARTS
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 2 |  | WP8269242replaces 8269242 Inlet Hose | $36.23 Parts Dr |
| 3 |  | Water Inlet | Discontinued |
| 4 |  | 8269241NLA Gasket | Discontinued |
| 5 |  | WP8269243replaces 8269243 Inlet Bezel | - |
| 6 |  | WP596669replaces 301958 Clamp | $2.30 Part Advantage |
| 7 |  | WP8531669replaces 8268590 Inlet Valve | $29.86 Part Advantage |
| 8 |  | WP489069replaces 304392 Appliance Screw | $2.30 Part Advantage |
| 11 |  | WP8268909replaces 8268909 Dishwasher Float Switch | $29.35 Part Advantage |
| 12 |  | WPW10175383replaces 8268893 Standpipe | $50.56 PartSelect |
| 13 |  | WP304231replaces 304231 Dishwasher Screw | $5.00 RepairClinic |
| 15 |  | WP8268913replaces 8268913 Dishwasher Float Assembly | $47.37 Parts Dr |
| 16 |  | WP8268892replaces 8268892 Overflow Lever | - |
