Model
Kenmore 665.16972202
Dishwasher (Kenmore 66516972202)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.16972202Dishwasher (Kenmore 66516972202)
12 diagrams187 parts
Parts Sections (12)
Diagram

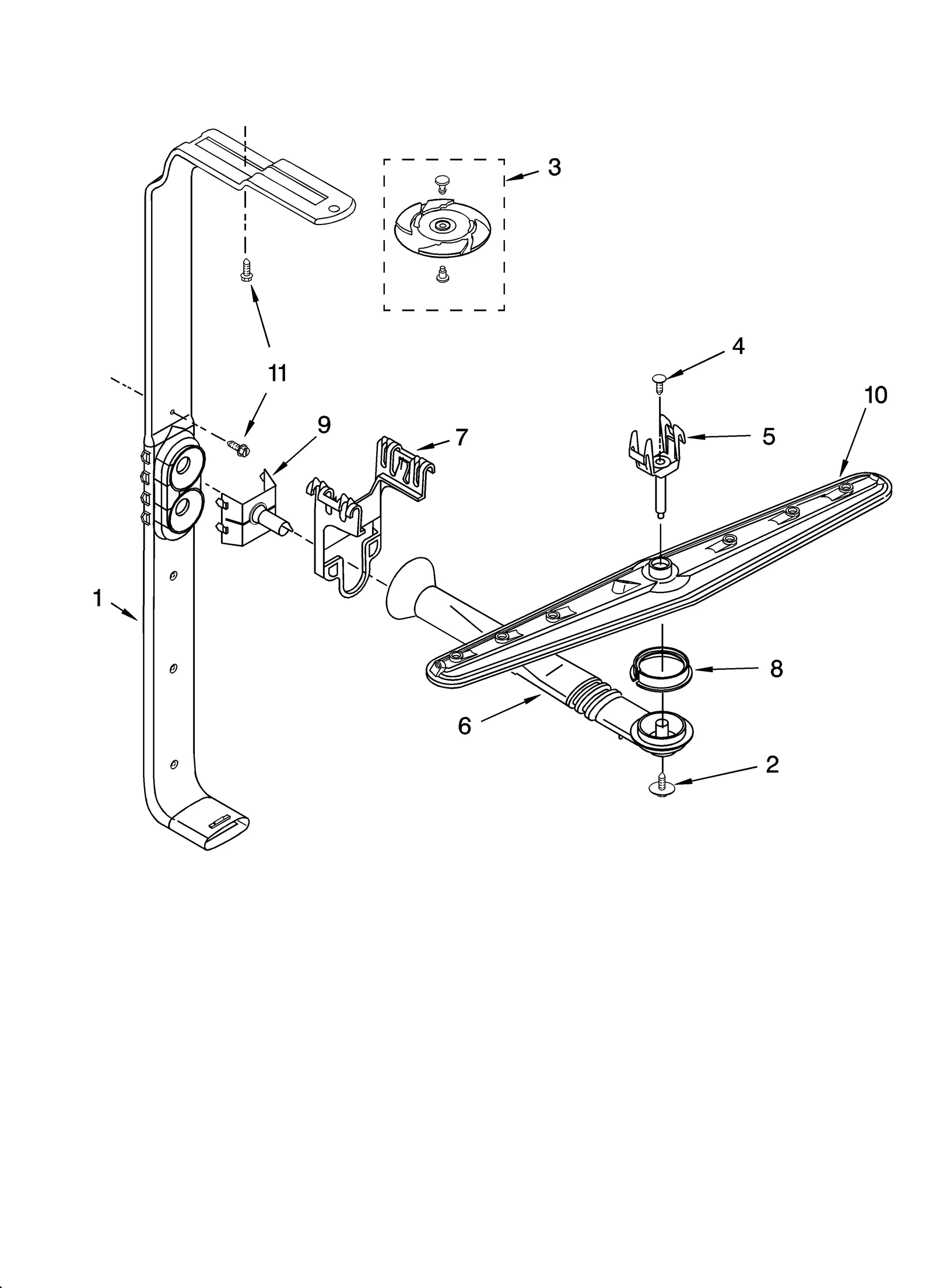

UPPER WASH AND RINSE PARTS
Parts in UPPER WASH AND RINSE PARTS
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | Feed Tube | Discontinued |
| 2 |  | WPW10349488replaces 8533889 Dishwasher Screw | $2.30 Part Advantage |
| 3 |  | 8193768replaces 8519736 Spinner | $9.61 Part Advantage |
| 4 |  | WP3400919replaces 3400919 Dishwasher Screw | $6.88 RepairClinic |
| 5 |  | WP8268321replaces 8268321 Dishwasher Upper Spray Arm Support | $50.56 PartSelect |
| 6 |  | WP8268326replaces 8268326 Dishwasher Upper Dishrack Spray Arm Tube | $52.67 PartSelect |
| 7 |  | 8268325NLA Dishwasher Upper Spray Arm Manifold Retainer | Discontinued |
| 8 |  | WP8268433replaces 8268433 Dishwasher Upper Spray Arm Seal | $4.27 Part Advantage |
| 9 | | 8269295NLA Dishwasher Spray Arm Manifold Receiver | Discontinued |
| 10 |  | WP8535083replaces 8269022 Dishwasher Spray Arm | $29.93 Part Advantage |
| 11 |  | WP489443replaces 3400850 Screw | $3.72 Parts Dr |
