Model
Kenmore 665.17029401
Dishwasher (Kenmore 66517029401)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.17029401Dishwasher (Kenmore 66517029401)
11 diagrams159 parts
Parts Sections (11)
Diagram

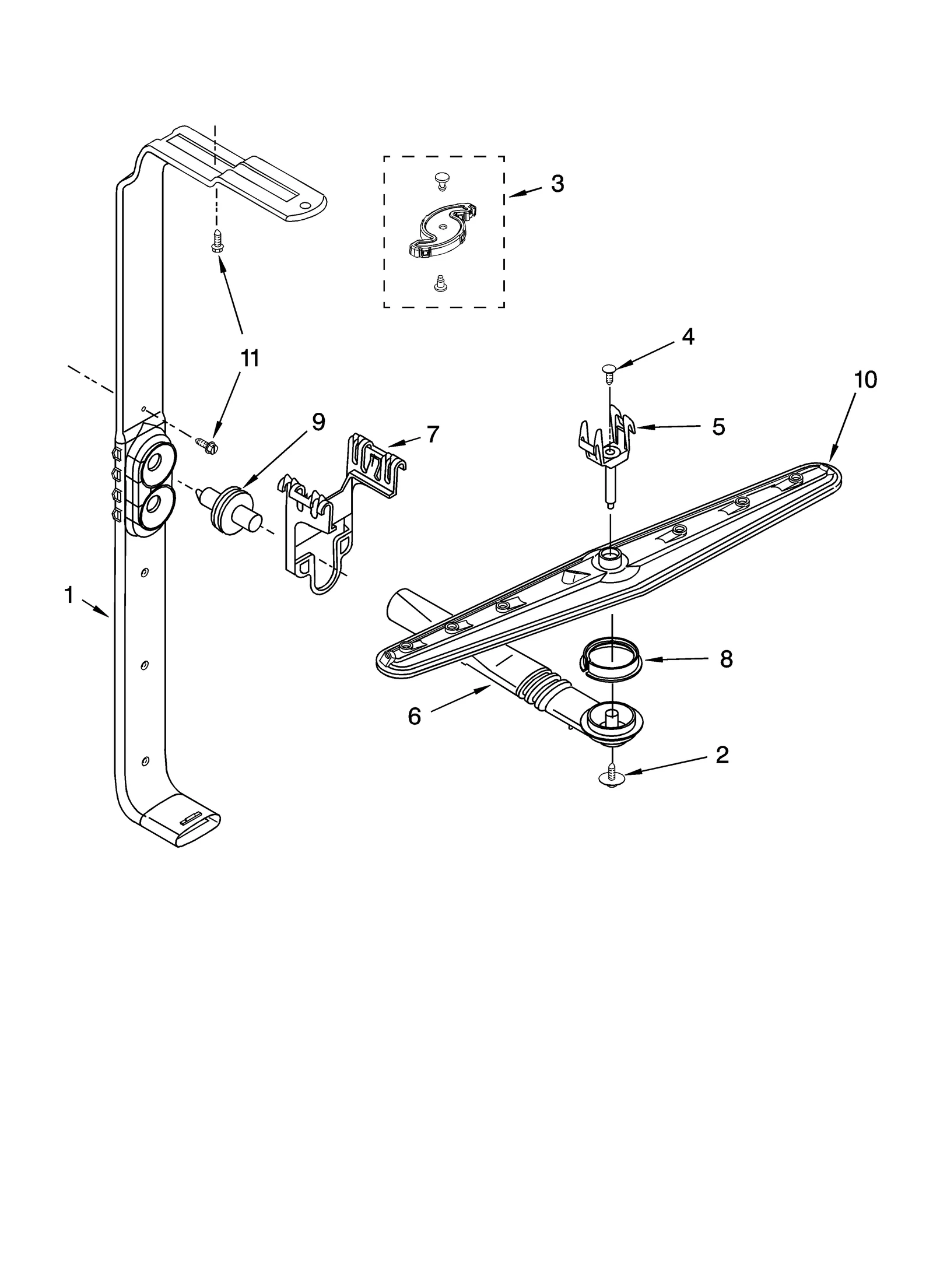

UPPER WASH AND RINSE PARTS
Parts in UPPER WASH AND RINSE PARTS
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10077863replaces 8558964 Dishwasher Water Feed Tube | $73.26 Parts Dr |
| 2 |  | WPW10349488replaces 8533889 Dishwasher Screw | $2.30 Part Advantage |
| 3 |  | 8193983replaces 8557720 Spinner | $11.93 Part Advantage |
| 4 |  | WP3400919replaces 3400919 Dishwasher Screw | $6.88 RepairClinic |
| 5 |  | WP8268321replaces 8268321 Dishwasher Upper Spray Arm Support | $50.56 PartSelect |
| 6 |  | WPW10258150replaces 8268327 Manifold | $57.39 ApplianceParts Pro |
| 7 |  | 8268325NLA Dishwasher Upper Spray Arm Manifold Retainer | Discontinued |
| 8 |  | WP8268433replaces 8268433 Dishwasher Upper Spray Arm Seal | $4.27 Part Advantage |
| 9 |  | WPW10082831replaces 8268328 Probe | $34.74 PartSelect |
| 10 |  | WP8535083replaces 8535083 Dishwasher Upper Dishrack Spray Arm | $29.93 Part Advantage |
| 11 |  | WP489443replaces 3400850 Screw | $3.72 Parts Dr |
