Model
Kenmore 665.17034401
Dishwasher (Kenmore 66517034401)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.17034401Dishwasher (Kenmore 66517034401)
11 diagrams175 parts
Parts Sections (11)
Diagram

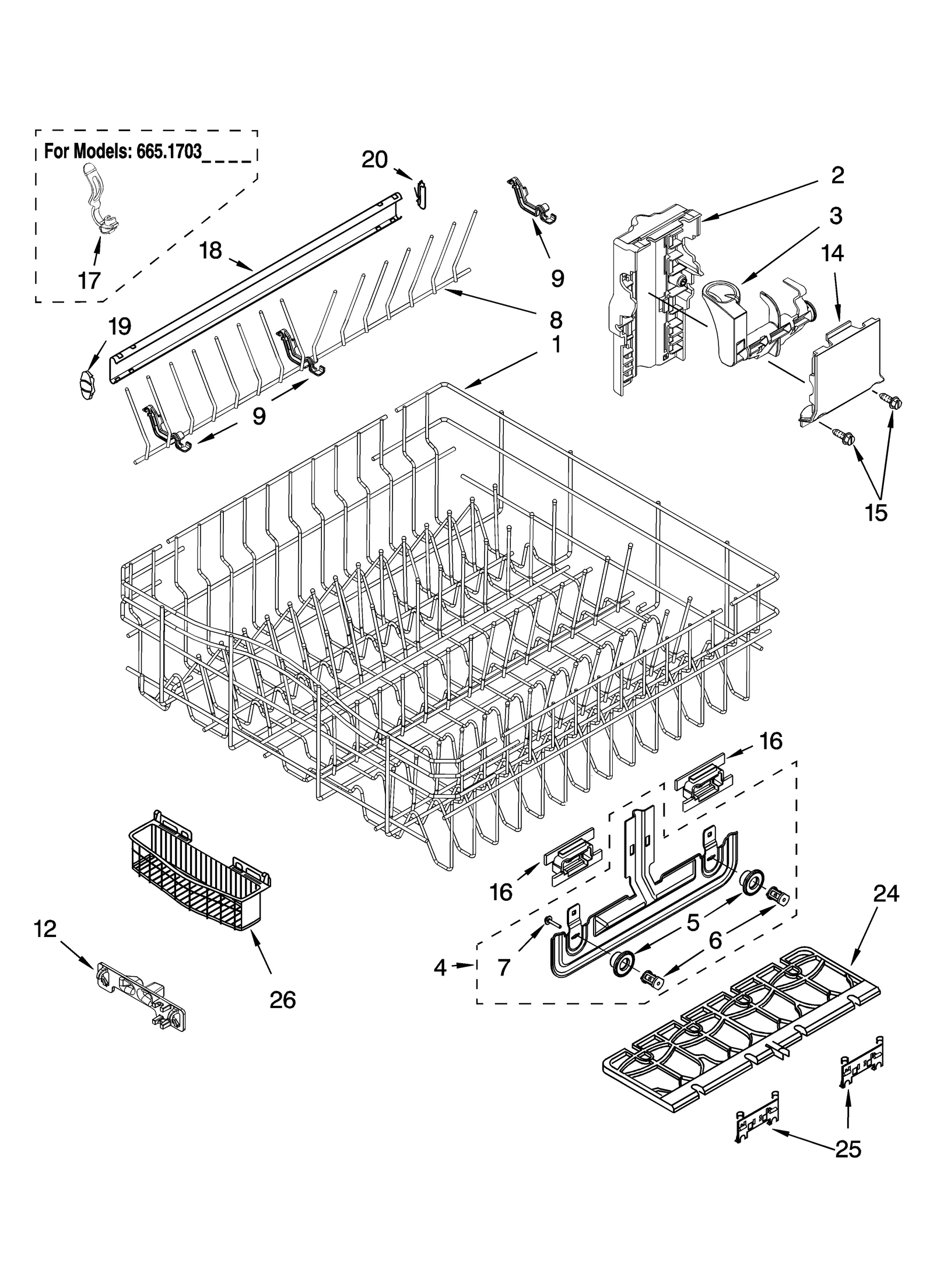

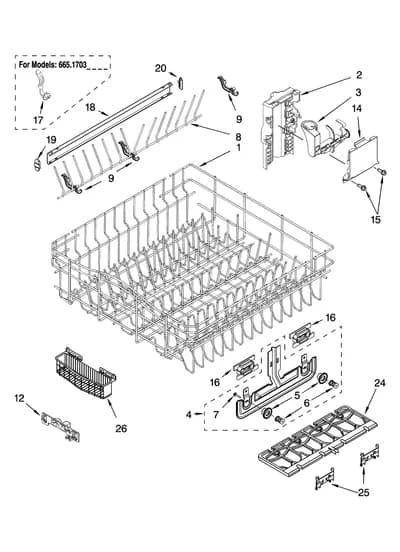

UPPER RACK AND TRACK PARTS
Parts in UPPER RACK AND TRACK PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10727422replaces 8539242 Dishwasher Dishrack, Upper | $186.62 Part Advantage |
| 2 |  | 8531343NLA Housing | Discontinued |
| 3 | | 8539122NLA Dishwasher Dishrack Adjuster, Right | Discontinued |
| 3A | | Dishwasher Dishrack Adjuster, Left | - |
| 4 |  | W10728849replaces 8268654 Dishwasher Dishrack Adjuster | $67.82 Parts Dr |
| 5 |  | WP3385088replaces 3385088 Dishwasher Dishrack Wheel | $4.52 Part Advantage |
| 6 |  | WP8268703replaces 8268703 Dishwasher Dishrack Roller Axle, Upper | $4.07 Part Advantage |
| 7 |  | WP8281156replaces 8281156 Rack Wheel Screw | $3.62 Parts Dr |
| 8 |  | W10727426replaces 9744565 Dishwasher Tine Row | $33.11 Part Advantage |
| 9 |  | WP8539189replaces 8539189 Dishwasher Tine Pivot Clip | $3.38 Part Advantage |
| 12 |  | WP8539119replaces 8539119 Dishwasher Tine Row Dual Positioner | $51.61 PartSelect |
| 14 | | 8531345NLA Dishwasher Cover | Discontinued |
| 15 |  | WP9741232replaces 9741232 Dishwasher Screw | $2.30 Part Advantage |
| 16 | | 8268704NLA Dishwasher Dishrack Adjuster Arm Positioner | Discontinued |
| 17 |  | WP8539113replaces 8539113 Dishwasher Tine No-Flip Clip | $7.00 RepairClinic |
| 18 |  | WP3385089replaces 3385089 Dishwasher Dishrack Slide Rail | $30.30 Part Advantage |
| 19 |  | WP8565925replaces 8562015 Stop | $3.45 Part Advantage |
| 20 | | WP8565925replaces 8524581 Stop | $3.45 Part Advantage |
| 24 | | Cup Shelf | - |
| 25 |  | Dishwasher Tine Row Clip | - |
| 26 | | 8539145NLA Dishwasher Silverware Basket | Discontinued |
