Model
Kenmore 665.17049402
Dishwasher (Kenmore 66517049402)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.17049402Dishwasher (Kenmore 66517049402)
11 diagrams160 parts
Parts Sections (11)
Diagram

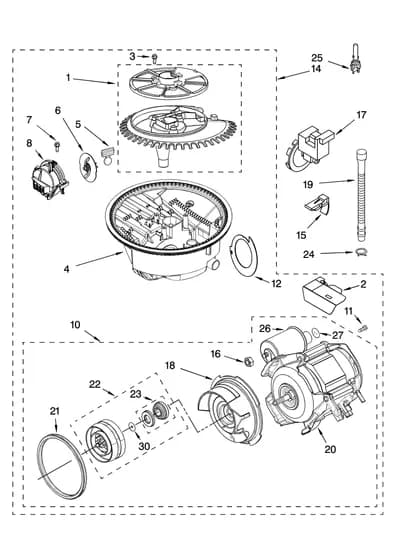

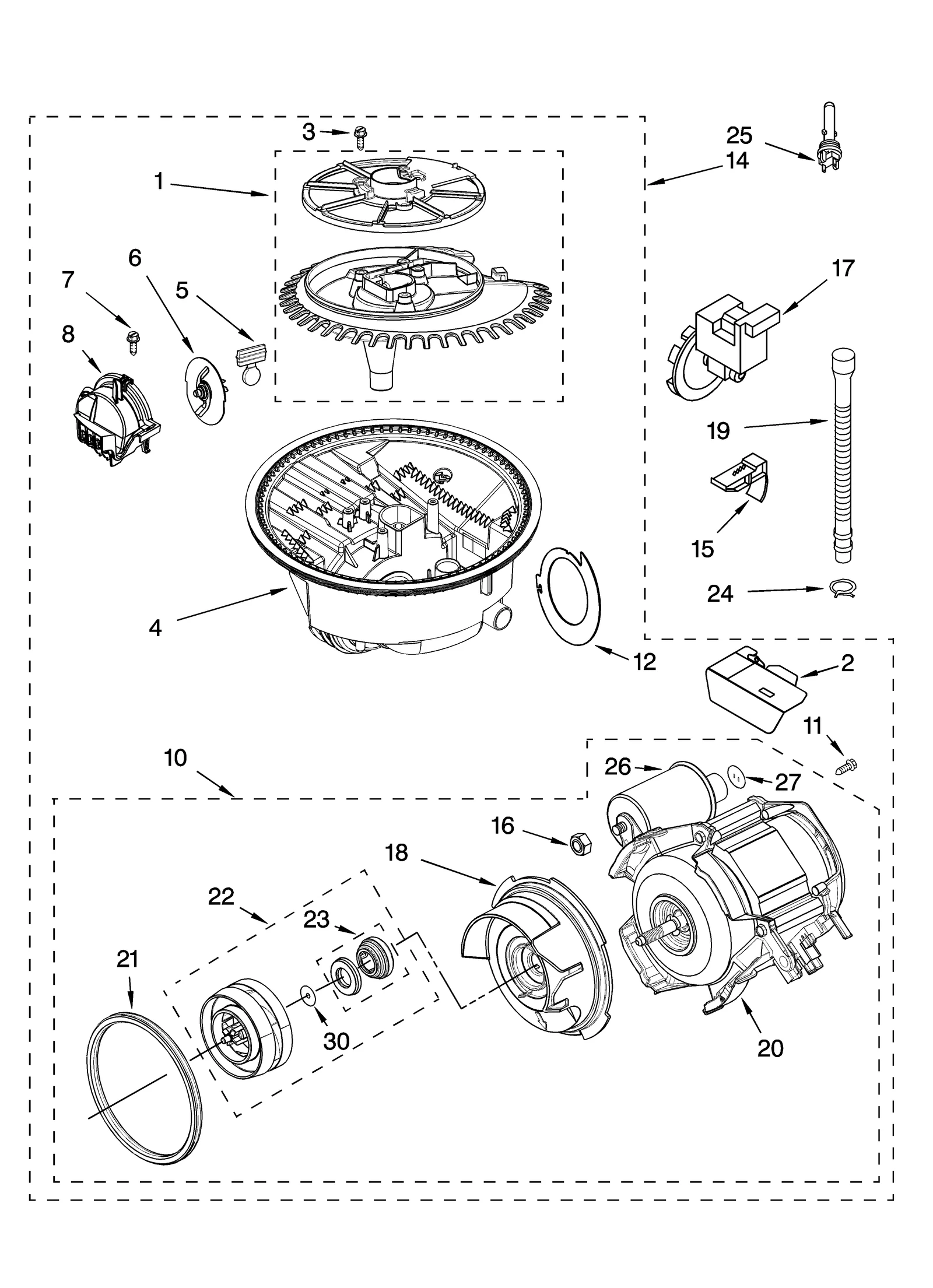

PUMP AND MOTOR PARTS
Parts in PUMP AND MOTOR PARTS
26 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | 8193918replaces 8534952 Accumulator | $79.61 Part Advantage |
| 2 |  | Dishwasher Circulation Pump Motor Shield | - |
| 3 |  | 3400069NLA Screw | Discontinued |
| 4 | | 8534882NLA Dishwasher Sump and Seal Assembly | Discontinued |
| 5 |  | WP8268375replaces 8268375 Dishwasher Sump Check Valve | $23.60 Part Advantage |
| 6 | – | 8268383 Dishwasher Chopper Assembly | - |
| 7 |  | WP9741232replaces 9741232 Dishwasher Screw | $2.30 Part Advantage |
| 8 |  | WP8531857replaces 8531857 Dishwasher Chopper Blade Cover | $78.48 ApplianceParts Pro |
| 10 |  | WPW10757217replaces 8534942 Dishwasher Pump Motor | $153.47 Part Advantage |
| 11 |  | Dishwasher Screw | $7.39 Parts Dr |
| 12 |  | Dishwasher Fine Filter | - |
| 14 |  | W10782773replaces 8535150 Pump Motor | $142.89 Part Advantage |
| 15 |  | WPW10300599replaces 8269524 Dishwasher Sump Tab | $53.20 PartSelect |
| 16 |  | Dishwasher Nut | - |
| 17 |  | Dishwasher Drain Pump | Discontinued |
| 18 |  | W11622922replaces 8531019 Volute | $7.50 Part Advantage |
| 19 |  | 8269144Areplaces 8269144 Dishwasher Drain Hose | $10.57 Part Advantage |
| 20 | | WPW10757217replaces 8534941 Motor | $153.47 Part Advantage |
| 21 | | W11622922replaces 8268397 Seal | $7.50 Part Advantage |
| 22 |  | 8193951Areplaces 8531017 Impeller | $89.39 Parts Dr |
| 23 | | 8193951Areplaces 8268403 Seal | $89.39 Parts Dr |
| 24 |  | WP356138replaces 356138 Clamp | $3.38 Part Advantage |
| 25 |  | Dishwasher Thermistor | Discontinued |
| 26 |  | WPW10334457replaces 8269507 Capacitor | $87.42 PartSelect |
| 27 |  | Dishwasher Capacitor Shield | - |
| 30 |  | WP8531018replaces 8531018 Washer | - |
