Model
Kenmore 665.17483300
Undercounter Dishwasher (Kenmore 66517483300)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.17483300Undercounter Dishwasher (Kenmore 66517483300)
12 diagrams206 parts
Parts Sections (12)
Diagram

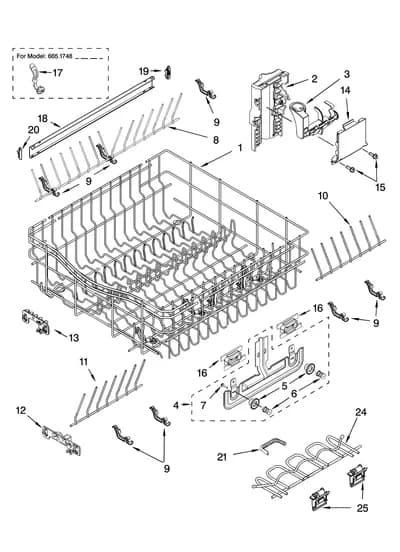

UPPER RACK AND TRACK PARTS
Parts in UPPER RACK AND TRACK PARTS
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|

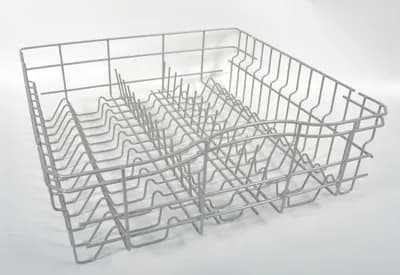

| 1 |  | W10727422replaces 8539204 Dishrack | $186.62 Part Advantage |
| 2 |  | 8531343NLA Housing | Discontinued |
| 3 | – | 9744554 Adjuster | - |
| 3A | – | 9744553 Adjuster | - |
| 4 |  | W10728849replaces 8268654 Dishwasher Dishrack Adjuster | $67.82 Parts Dr |
| 5 |  | WP3385088replaces 3385088 Dishwasher Dishrack Wheel | $4.52 Part Advantage |
| 6 |  | WP8268703replaces 8268703 Dishwasher Dishrack Roller Axle, Upper | $4.07 Part Advantage |
| 7 |  | WP8281156replaces 8281156 Rack Wheel Screw | $3.62 Parts Dr |
| 8 |  | W10727426replaces 9744551 Dishwasher Tine Row | $33.11 Part Advantage |
| 9 |  | WP8539189replaces 8539189 Dishwasher Tine Pivot Clip | $3.38 Part Advantage |
| 10 | | Dishwasher Tine Row | - |
| 11 | – | 9744550 Tine Row | - |
| 12 | | 8539185NLA Positioner | Discontinued |
| 13 | – | 8539187 Positioner | - |
| 14 | | 8531345NLA Dishwasher Cover | Discontinued |
| 15 |  | WP9741232replaces 9741232 Dishwasher Screw | $2.30 Part Advantage |
| 16 | | 8268704NLA Dishwasher Dishrack Adjuster Arm Positioner | Discontinued |
| 17 | | 9744559NLA Clip | Discontinued |
| 18 |  | WP3385089replaces 3385089 Dishwasher Dishrack Slide Rail | $30.30 Part Advantage |
| 19 | | 9744560NLA Dishwasher Dishrack Slide Rail Stop | Discontinued |
| 20 |  | WP8565925replaces 8524582 Stop | $3.45 Part Advantage |
| 21 | – | 9744561 Indicator | - |
| 24 | | WP8269329replaces 8269329 Upper Rack Shelf | - |

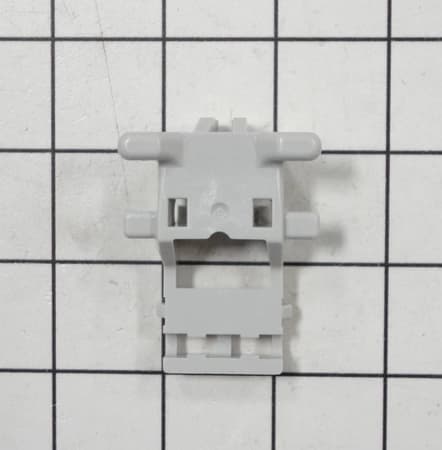

| 25 |  | WP8274978replaces 8274978 Clip | $3.65 ApplianceParts Pro |
