Kenmore 665.17694201
Undercounter Dishwasher (Kenmore 66517694201)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
665.17694201Undercounter Dishwasher (Kenmore 66517694201)
12 diagrams184 parts

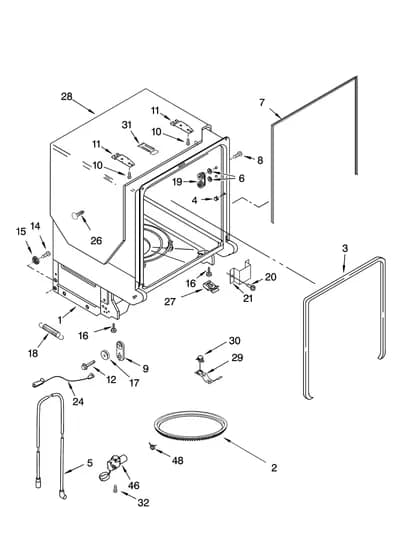

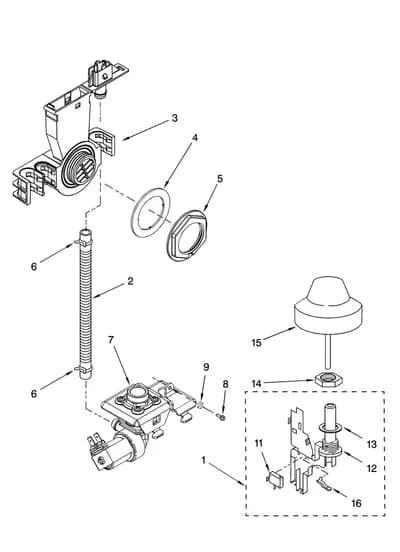

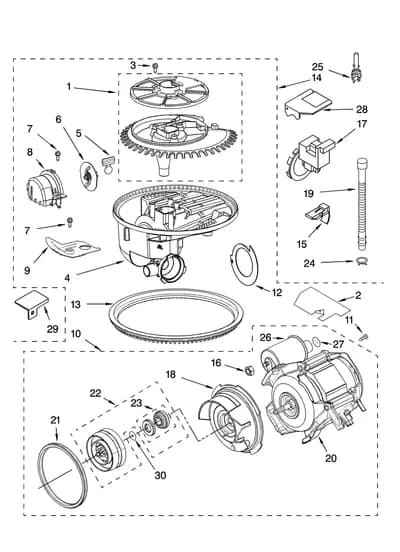

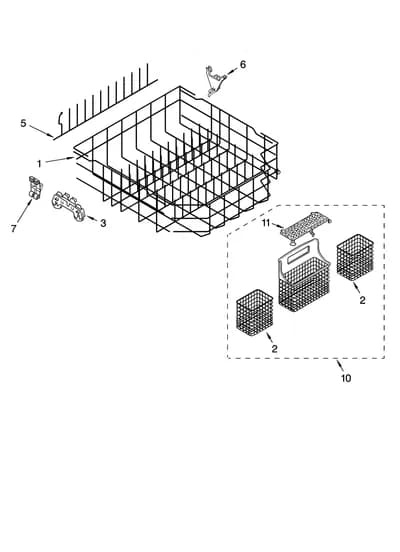

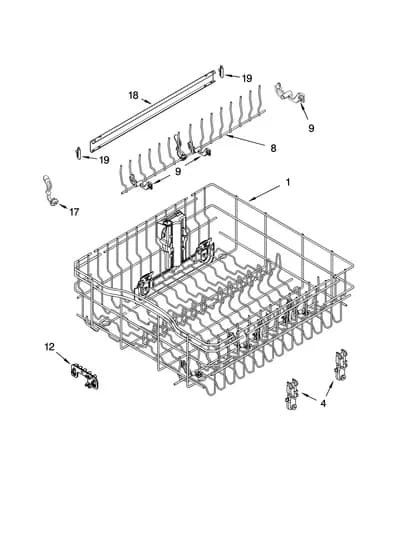

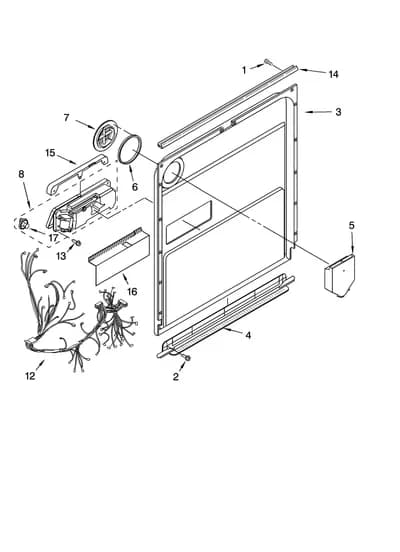

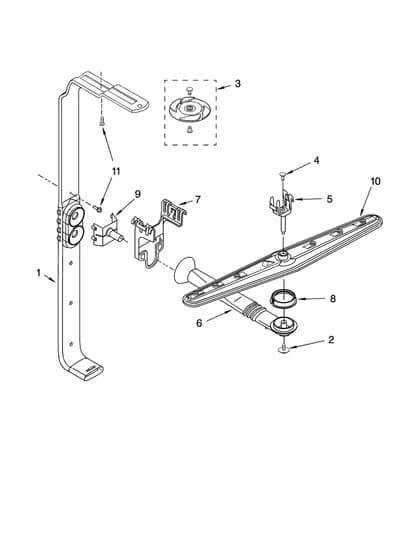

Parts Sections (12)
Diagram

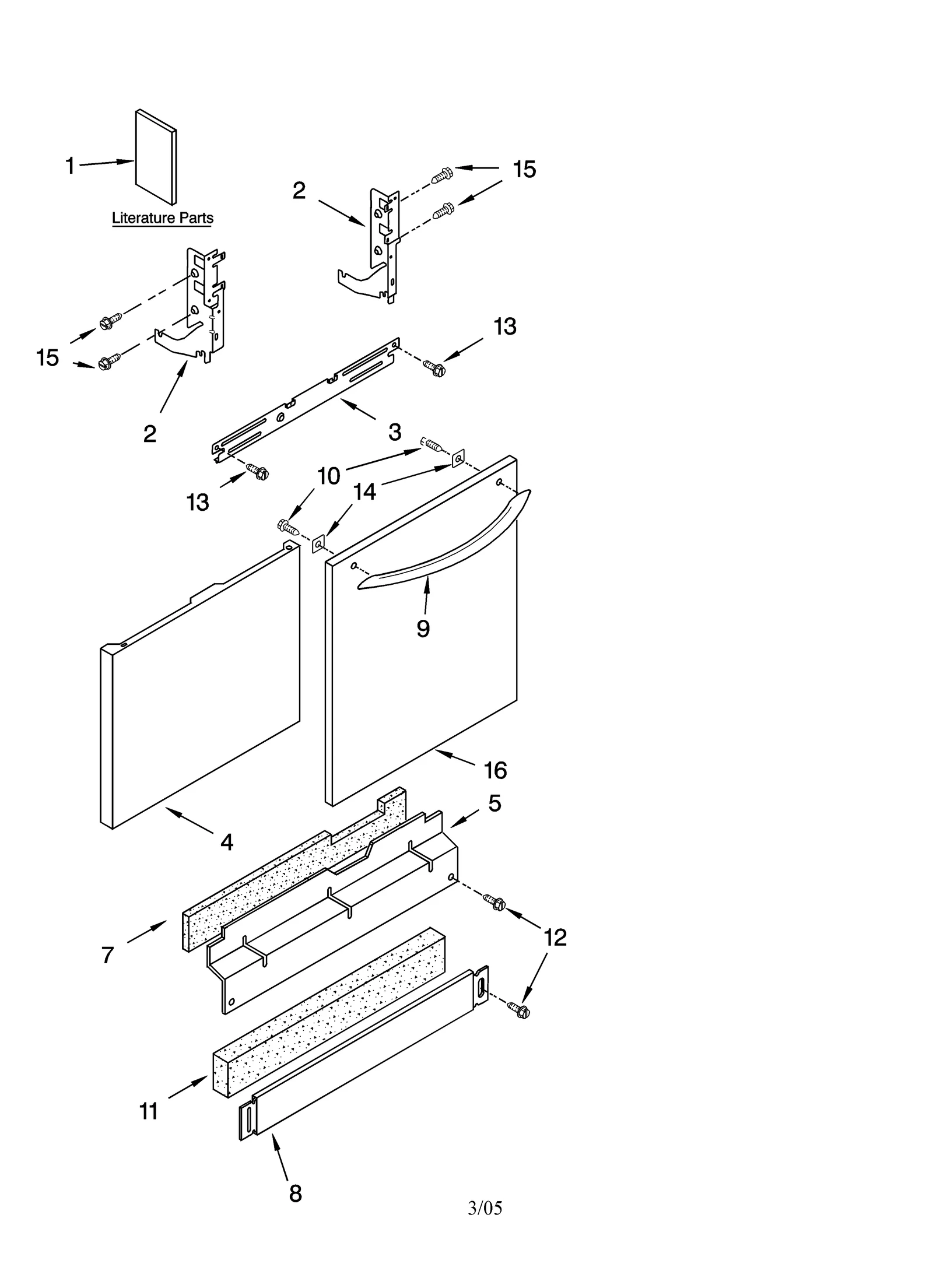

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
32 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | LIT8537832 LITERATURE PARTS | - |
| 1A | – | LIT8542559 LITERATURE PARTS (ENERGY GUIDE) | - |
| 1B | – | LIT8539396 Dishwasher Owner's Manual | - |
| 1C | – | LIT8537797 Technical Sheet | - |
| 1D | – | LIT8544473 LITERATURE PARTS (PARTS LIST, SERVICE) | - |
| 2 |  | W11612302replaces 8534854 Dishwasher Door Hinge | $77.34 PartSelect |
| 2A |  | W11612303replaces 8534853 Dishwasher Right Side Door Hinge Assembly | $60.05 Part Advantage |
| 3 |  | 8268983NLA Stiffner | Discontinued |
| 4 |  | W11113792replaces 8524576 Panel | $131.42 PartSelect |
| 5 |  | W11763736replaces 8269007 Panel | $16.47 Part Advantage |
| 5A | | Panel | - |
| 5B |  | W10871198replaces 8269009 Panel | - |
| 7 |  | W10831329replaces 8268584 Insulation | $15.72 Part Advantage |
| 8 |  | W10871196replaces 8270026 Dishwasher Toe Panel (Black) | $66.43 Amazon |
| 8A |  | WPW10586591replaces 8270027 Dishwasher Toe Panel (White) | $154.38 RepairClinic |
| 8B | | 8270028NLA Dishwasher Toe Panel (Bisque) | Discontinued |
| 9 | – | 8533410 Handle | - |
| 9A | – | 8533411 Handle | - |
| 9B | – | 8533412 Handle | - |
| 9C | – | 8533413 Handle | - |
| 10 |  | WP3400067replaces 3400067 Screw | - |
| 11 | | W10831329replaces 8268581 Shield | $15.72 Part Advantage |
| 12 |  | WP302868replaces 302868 Dishwasher Screw | $2.30 Part Advantage |
| 12A |  | WP3400836replaces 3400836 Dishwasher Screw | $2.30 Part Advantage |
| 12B |  | WPW10503550replaces 3400865 Dishwasher Screw | $22.41 ApplianceParts Pro |
| 13 |  | WP489069replaces 304392 Appliance Screw | $2.30 Part Advantage |
| 14 | | 9744437NLA Mounting Plate | Discontinued |
| 15 |  | WP3400071replaces 3400071 Dishwasher Control Panel Seal Screw | $2.30 Part Advantage |
| 16 | | Panel B | - |
| 16A | | 8524452NLA Panel W | Discontinued |
| 16B | | 8524453NLA Panel T | Discontinued |
| 16C | | 8270189NLA Panel | Discontinued |
