Model
Kenmore 66512413N412
Dishwasher (Kenmore 66512413N412)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66512413N412Dishwasher (Kenmore 66512413N412)
10 diagrams139 parts
Parts Sections (10)
Diagram

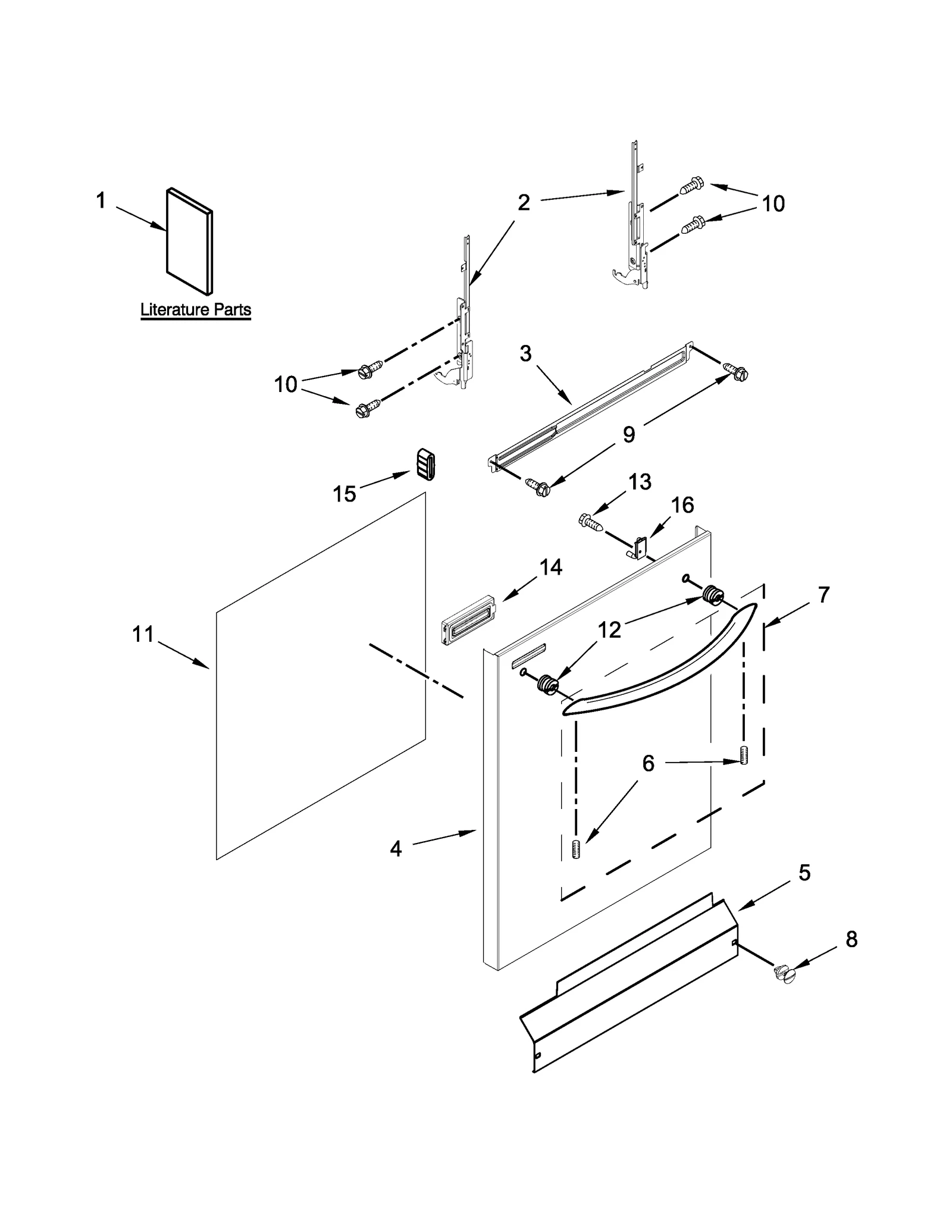

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10435038 Dishwasher Installation Manual | - |
| 1A | – | W10669967 Dishwasher Energy Guide | - |
| 1B | – | W10620229 Dishwasher Use and Care Guide | - |
| 1C | – | W10610059 Tech Sheet-s | - |
| 1D | – | W10610060 Tech Sheet-s | - |
| 2 |  | W11613573replaces W10274922 Door Hinge | $41.95 ApplianceParts Pro |
| 2A |  | W11613572replaces W10274921 Door Hinge | $33.01 Parts Dr |
| 3 |  | W10850371replaces W10195120 Brace | $11.72 Part Advantage |
| 4 |  | W11131696replaces W10577294 Dishwasher Door Outer Panel (Stainless) | - |
| 5 |  | WPW10441013replaces W10441013 Dishwasher Toe Panel | $34.27 Part Advantage |
| 6 |  | WP8534008replaces 8534008 Dishwasher Screw | $2.20 Part Advantage |
| 7 |  | WPW10380413replaces W10380413 Dishwasher Door Handle | - |
| 8 |  | WPW10503548replaces W10503548 Dishwasher Retainer Clip | $9.15 Part Advantage |
| 9 |  | WP489069replaces 304392 Appliance Screw | $2.30 Part Advantage |
| 10 |  | WPW10109200replaces 489470 Screw | $2.30 Part Advantage |
| 11 |  | WPW10073520replaces W10073520 Dishwasher Outer Door Panel Insulation | $50.57 ApplianceParts Pro |
| 12 |  | W11157086replaces W10195726 Dishwasher Door Handle Stud | $18.70 Part Advantage |
| 13 |  | W10826179replaces W10316572 Dishwasher Screw | $2.30 Part Advantage |

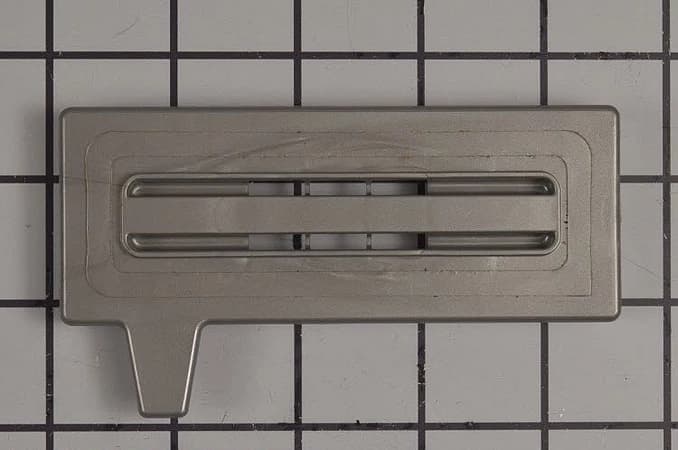

| 14 |  | Grille Assembly | - |
| 15 |  | WP8268961replaces 8268961 Dishwasher Hinge Friction Sleeve | $3.20 Part Advantage |
| 16 |  | Light Pipe | - |
