Model
Kenmore 66512413N414
Dishwasher (Kenmore 66512413N414)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66512413N414Dishwasher (Kenmore 66512413N414)
10 diagrams138 parts
Parts Sections (10)
Diagram

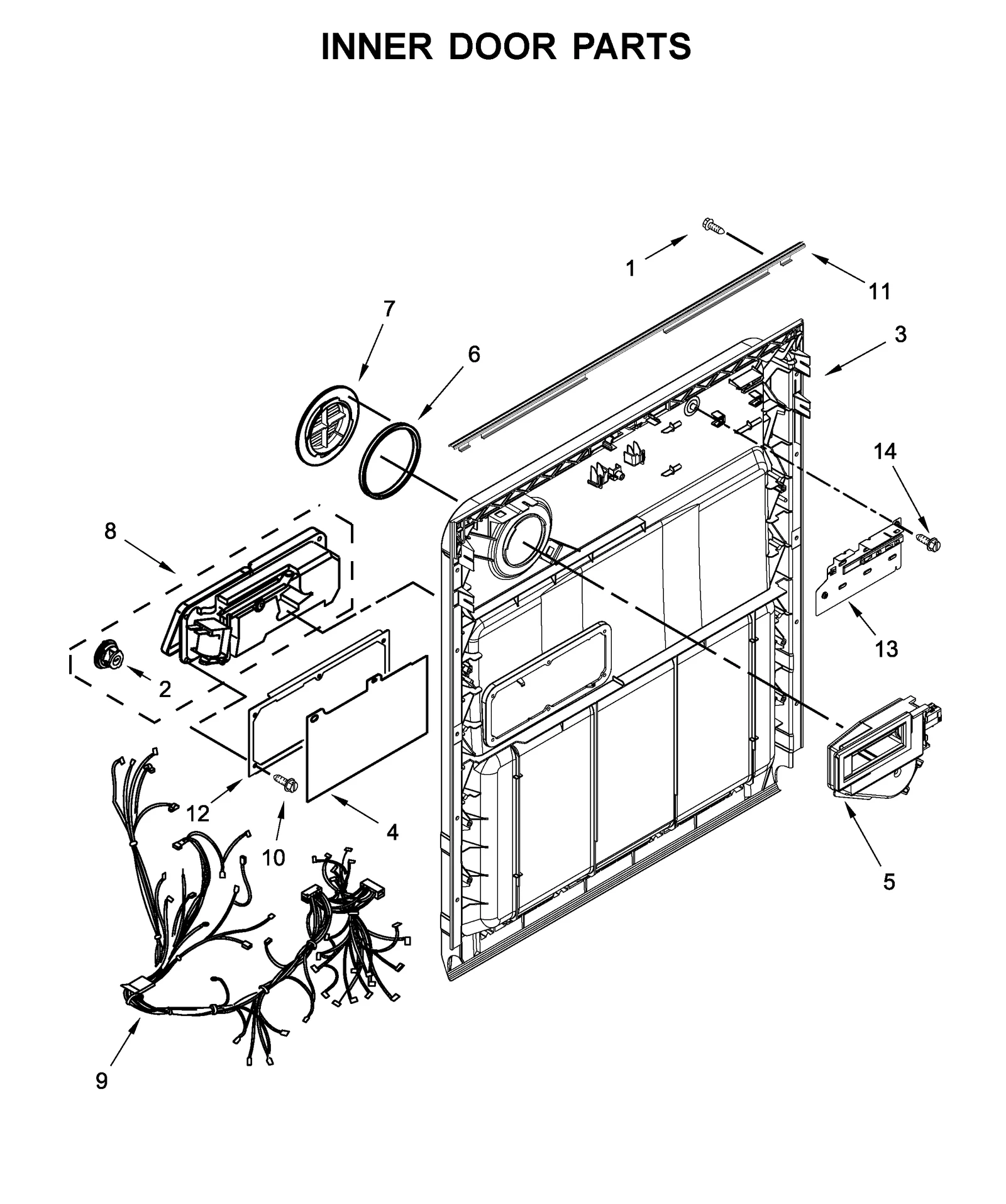

INNER DOOR PARTS
Parts in INNER DOOR PARTS
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10348409replaces W10348409 Dishwasher Screw | $2.30 Part Advantage |
| 2 |  | WPW10524921replaces W10524921 Dishwasher Rinse-Aid Dispenser Cap | $44.23 PartSelect |
| 3 |  | W11676896replaces W10214176 Dishwasher Door Inner Panel | $133.71 ApplianceParts Pro |
| 4 |  | WPW10482094replaces W10482094 Cover | - |
| 5 |  | WPW10428211replaces W10428211 Dishwasher Vent Assembly | $55.00 Part Advantage |
| 6 |  | WP8269259replaces 8269259 Dishwasher Vent Gasket | $26.73 Part Advantage |
| 7 |  | WPW10274926replaces W10274926 Deflector | $19.12 Parts Dr |
| 8 |  | WPW10428213replaces W10428213 Dishwasher Detergent Dispenser Assembly | $73.20 Part Advantage |
| 9 | | Dishwasher Wire Harness | - |
| 10 |  | WPW10177098replaces W10177098 Dishwasher Screw | $3.31 Part Advantage |
| 11 |  | W10837566replaces W10274923 Seal | $33.91 Parts Dr |
| 12 |  | WPW10462232replaces W10462232 Dishwasher Detergent Dispenser Bracket | $11.10 Part Advantage |

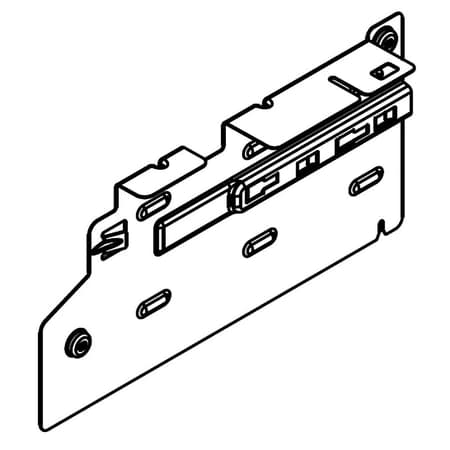

| 13 |  | Control Bracket | - |
| 14 |  | W11631670replaces 8281217 Dishwasher Screw | $8.78 Part Advantage |
