Kenmore 66513013K112
Undercounter Dishwasher (Kenmore 66513013K112)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513013K112Undercounter Dishwasher (Kenmore 66513013K112)
11 diagrams137 parts

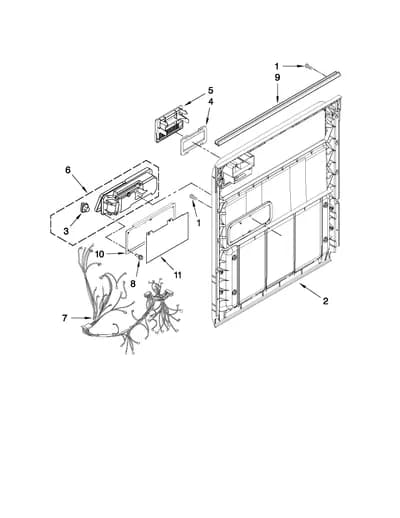

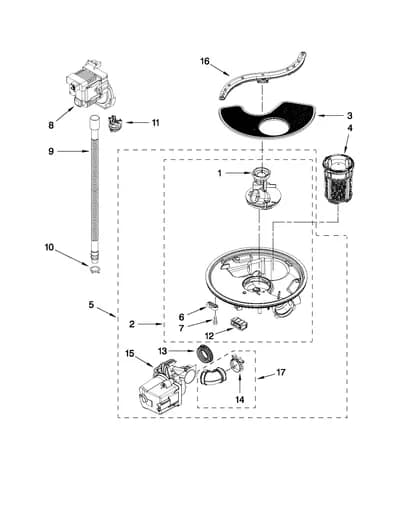

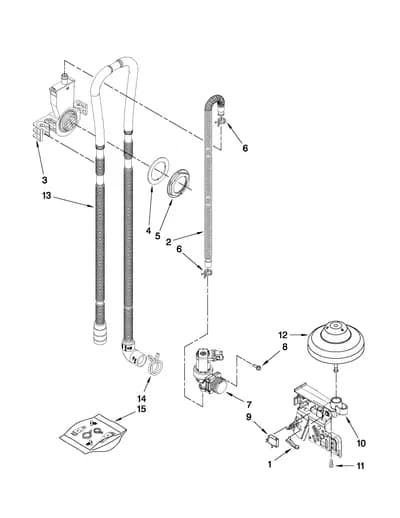

Parts Sections (11)
Diagram

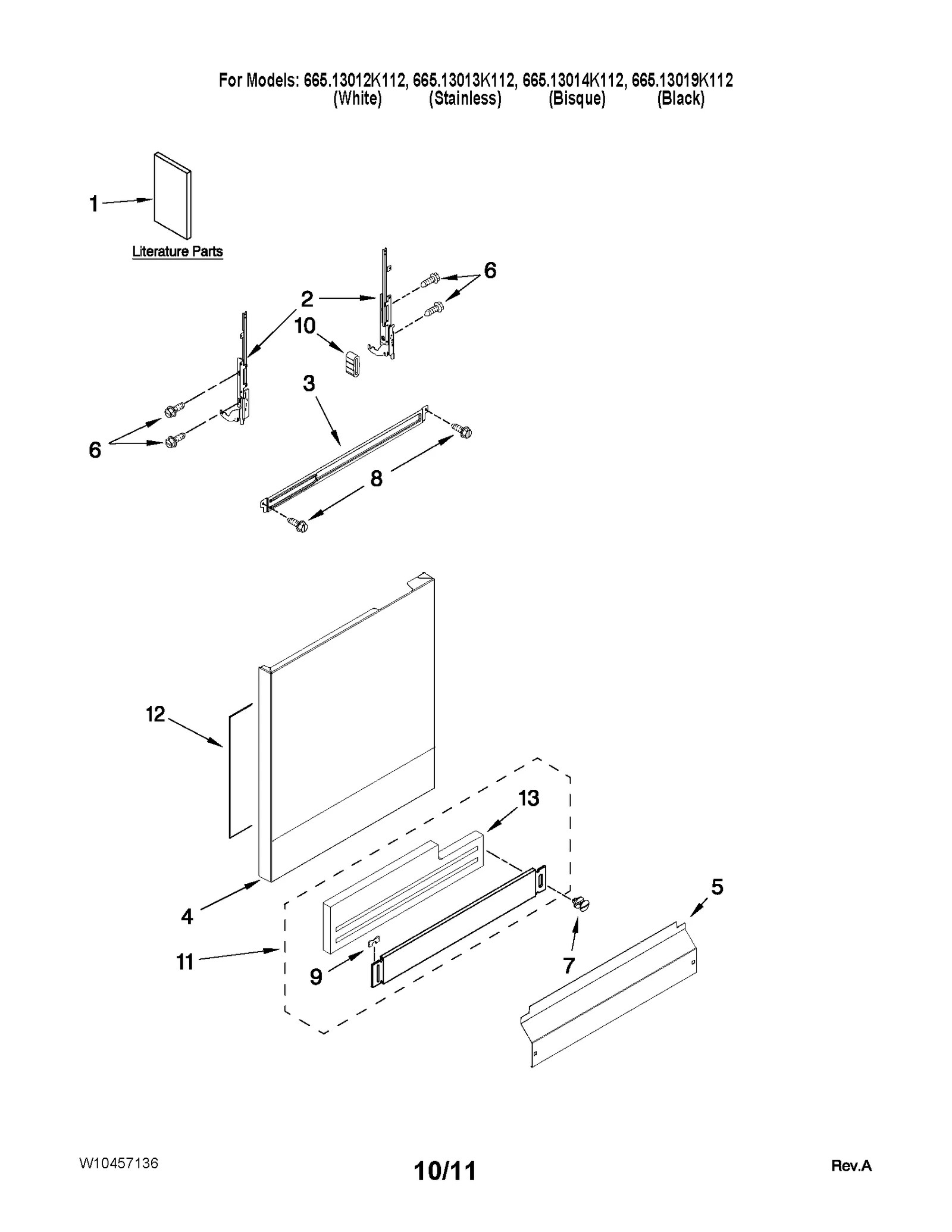

DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10435038 Dishwasher Installation Manual | - |
| 1A | – | W10380194 Dishwasher Energy Guide | - |
| 1B | – | W10350362 Dishwasher Owner's Manual | - |
| 1C | – | W10321977 Technical Sheet | - |
| 1D | – | W10321978 Technical Sheet | - |
| 2 |  | W11613573replaces W10274922 Door Hinge | - |
| 2A |  | W11613572replaces W10274921 Door Hinge | $33.01 Parts Dr |
| 3 |  | W10850371replaces W10195120 Brace | $11.72 Part Advantage |
| 4 |  | WPW10274895replaces W10274895 Dishwasher Door Panel | $237.90 RepairClinic |
| 4A |  | WPW10274896replaces W10274896 Dishwasher Door Panel | - |
| 4B |  | WPW10274897replaces W10274897 Dishwasher Panel | - |
| 4C |  | WPW10274902replaces W10274901 Dishwasher Front Door Panel (Stainless) | $186.32 Parts Dr |
| 5 |  | W11763736replaces W10195777 Dishwasher Access Panel | $16.47 Part Advantage |
| 5A |  | W10909066replaces W10195778 Dishwasher Access Panel | - |
| 5B |  | W10871198replaces W10195779 Dishwasher Access Panel | - |
| 6 |  | WPW10109200replaces 489470 Screw | $2.30 Part Advantage |
| 7 |  | WP302868replaces 302868 Dishwasher Screw | $2.30 Part Advantage |
| 7A |  | WP3400836replaces 3400836 Dishwasher Screw | $2.30 Part Advantage |
| 7B |  | WPW10503550replaces 3400865 Dishwasher Screw | $22.41 ApplianceParts Pro |
| 8 |  | WP489069replaces 304392 Appliance Screw | $2.30 Part Advantage |
| 9 |  | WP8269016replaces 8269016 Dishwasher Toe Panel Clip | $6.90 RepairClinic |
| 10 |  | WP8268961replaces 8268961 Dishwasher Hinge Friction Sleeve | $3.20 Part Advantage |
| 11 | – | W10300766 Toe Panel | - |
| 11A | – | W10300767 Dishwasher Toe Panel | - |
| 11B | – | W10300768 Dishwasher Toe Panel | - |
| 12 |  | WPW10073520replaces W10073520 Dishwasher Outer Door Panel Insulation | $50.57 ApplianceParts Pro |
| 13 |  | W10831329replaces W10300769 Dishwasher Toe Panel Insulation | $15.72 Part Advantage |
