Model
Kenmore 66513019K111
Undercounter Dishwasher (Kenmore 66513019K111)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513019K111Undercounter Dishwasher (Kenmore 66513019K111)
11 diagrams135 parts

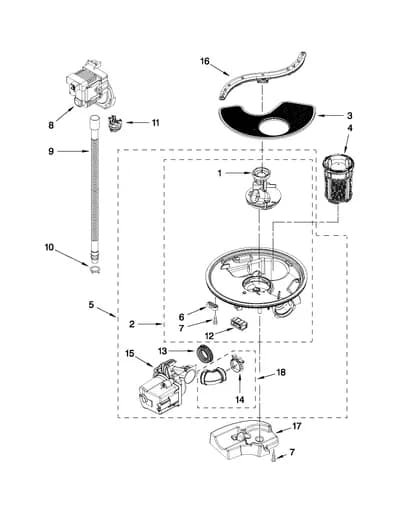

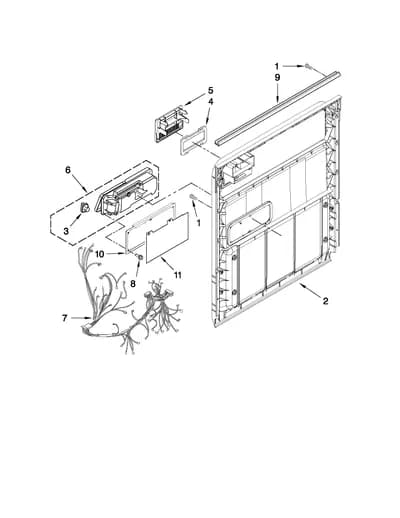

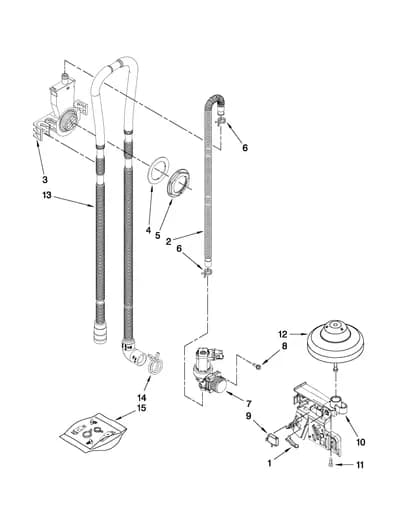

Parts Sections (11)
Diagram
DOOR AND PANEL PARTS
Parts in DOOR AND PANEL PARTS
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 | – | W10300754 Dishwasher Installation Instructions | - |
| 1A | – | W10380194 Dishwasher Energy Guide | - |
| 1B | – | W10350362 Dishwasher Owner's Manual | - |
| 1C | – | W10321977 Technical Sheet | - |
| 1D | – | W10321978 Technical Sheet | - |
| 2 |  | W11613573replaces W10274922 Door Hinge | - |
| 2A |  | W11613572replaces W10274921 Door Hinge | $33.01 Parts Dr |
| 3 |  | W10850371replaces W10195120 Brace | $11.72 Part Advantage |
| 4 |  | WPW10274895replaces W10274895 Dishwasher Door Panel | $237.90 RepairClinic |
| 4A |  | WPW10274896replaces W10274896 Dishwasher Door Panel | - |
| 4B |  | WPW10274897replaces W10274897 Dishwasher Panel | - |
| 4C |  | WPW10274902replaces W10274901 Dishwasher Front Door Panel (Stainless) | $186.32 Parts Dr |
| 5 |  | W11763736replaces W10195777 Dishwasher Access Panel | $16.47 Part Advantage |
| 5A |  | W10909066replaces W10195778 Dishwasher Access Panel | - |
| 5B |  | W10871198replaces W10195779 Dishwasher Access Panel | - |
| 6 |  | WPW10109200replaces 489470 Screw | $2.30 Part Advantage |
| 7 |  | WP302868replaces 302868 Dishwasher Screw | $2.30 Part Advantage |
| 7A |  | WP3400836replaces 3400836 Dishwasher Screw | $2.30 Part Advantage |
| 7B |  | WPW10503550replaces 3400865 Dishwasher Screw | $22.41 ApplianceParts Pro |
| 8 |  | WP489069replaces 304392 Appliance Screw | $2.30 Part Advantage |
| 9 |  | WP8269016replaces 8269016 Dishwasher Toe Panel Clip | $6.90 RepairClinic |
| 10 |  | WP8268961replaces 8268961 Dishwasher Hinge Friction Sleeve | $3.20 Part Advantage |
| 11 |  | W10871196replaces 8573286 Dishwasher Toe Panel | $66.43 Amazon |
| 11A |  | WP8573287replaces 8573287 Dishwasher Toe Panel | $74.95 ApplianceParts Pro |
| 11B |  | Dishwasher Toe Panel (Bisque) | - |
