Model
Kenmore 66513023K113
Undercounter Dishwasher (Kenmore 66513023K113)
Parts Sections (12)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513023K113Undercounter Dishwasher (Kenmore 66513023K113)
12 diagrams117 parts
Parts Sections (12)
Diagram

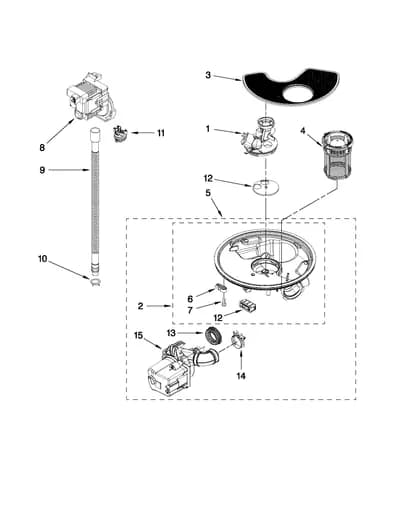

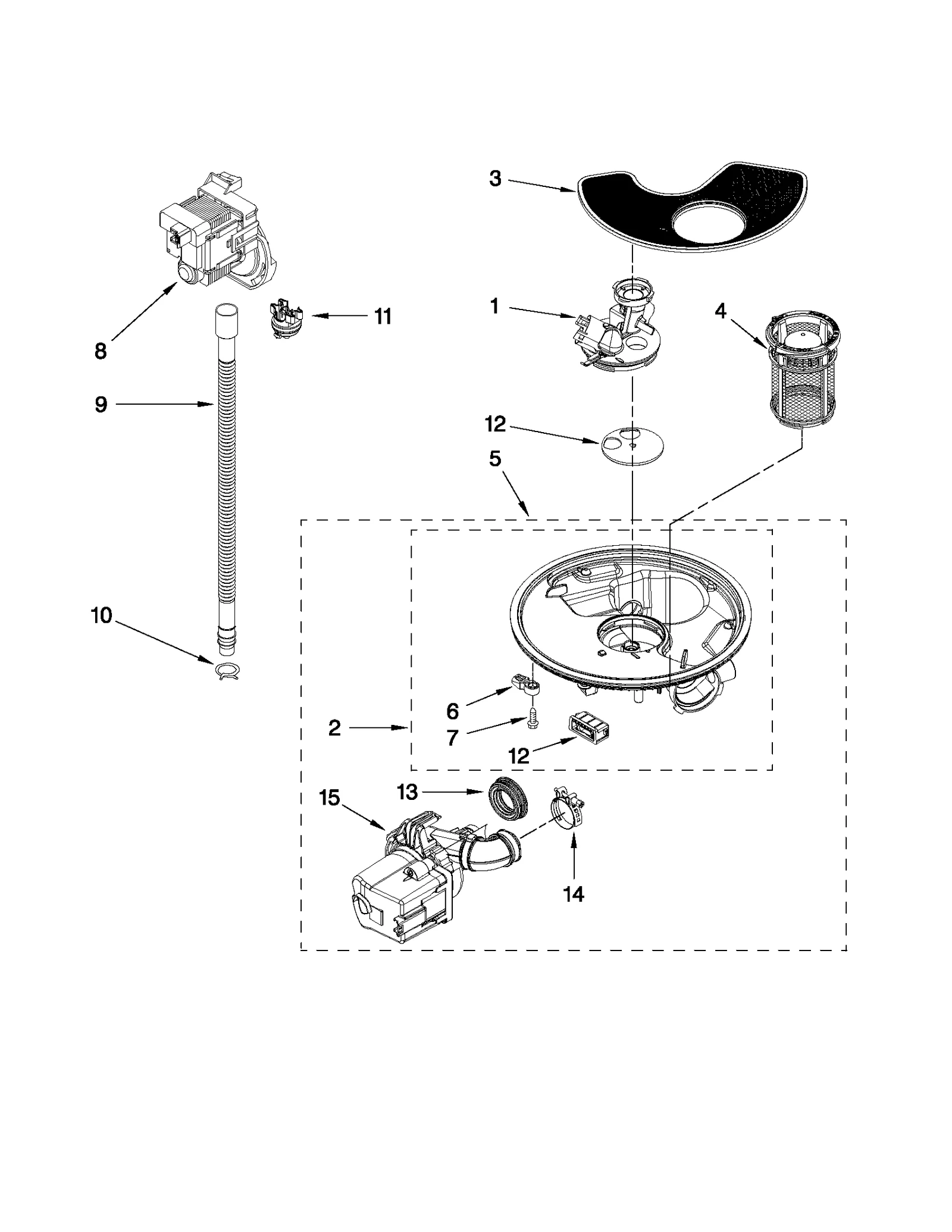

PUMP AND MOTOR PARTS
Parts in PUMP AND MOTOR PARTS
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10455271replaces W10315328 Cover | $10.94 Part Advantage |
| 2 |  | WPW10482462replaces W10300742 Inglis Dishwasher Sump Assembly | $99.18 Part Advantage |
| 3 |  | WPW10354786replaces W10354786 Screen | $37.31 Parts Dr |
| 4 |  | W10872845replaces W10393354 Dishwasher Filter | $27.41 Part Advantage |
| 5 |  | WPW10605059replaces W10300741 Pump Motor | $164.44 Parts Dr |
| 6 |  | WPW10372113replaces W10372113 Dishwasher Sump Tab | $11.33 Parts Dr |
| 7 |  | WPW10348407replaces W10348407 Dishwasher Screw | $5.95 ApplianceParts Pro |
| 8 |  | WPW10348269replaces 8558995 Dishwasher Drain Pump | $33.13 Part Advantage |
| 9 |  | 8269144Areplaces 8269144 Dishwasher Drain Hose | $10.57 Part Advantage |
| 10 |  | WP8269146replaces 8269146 Dishwasher Hose Clamp | $9.57 ApplianceParts Pro |
| 11 |  | Dishwasher Thermistor | - |
| 12 |  | W11243394replaces W10195086 Dishwasher Sump Motor Isolator | $8.95 ApplianceParts Pro |
| 13 |  | WPW10538166replaces W10195068 Dishwasher Pump Grommet | $12.94 Part Advantage |

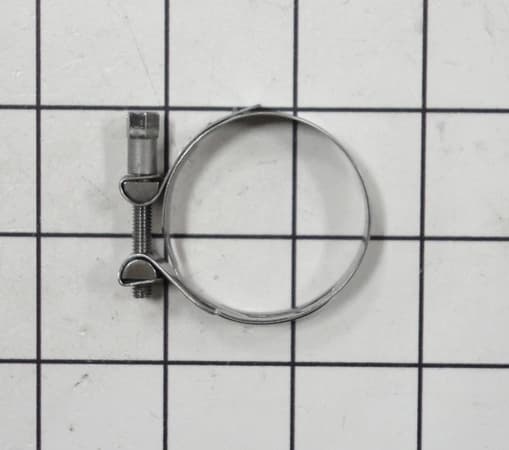

| 14 |  | W10488094replaces W10169166 Clamp | $56.34 ApplianceParts Pro |
| 15 |  | W11133712replaces W10440714 Pump Motor | $151.68 Part Advantage |
