Model
Kenmore 66513049K115
Dishwasher (Kenmore 66513049K115)
Parts Sections (11)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513049K115Dishwasher (Kenmore 66513049K115)
11 diagrams146 parts
Parts Sections (11)
Diagram

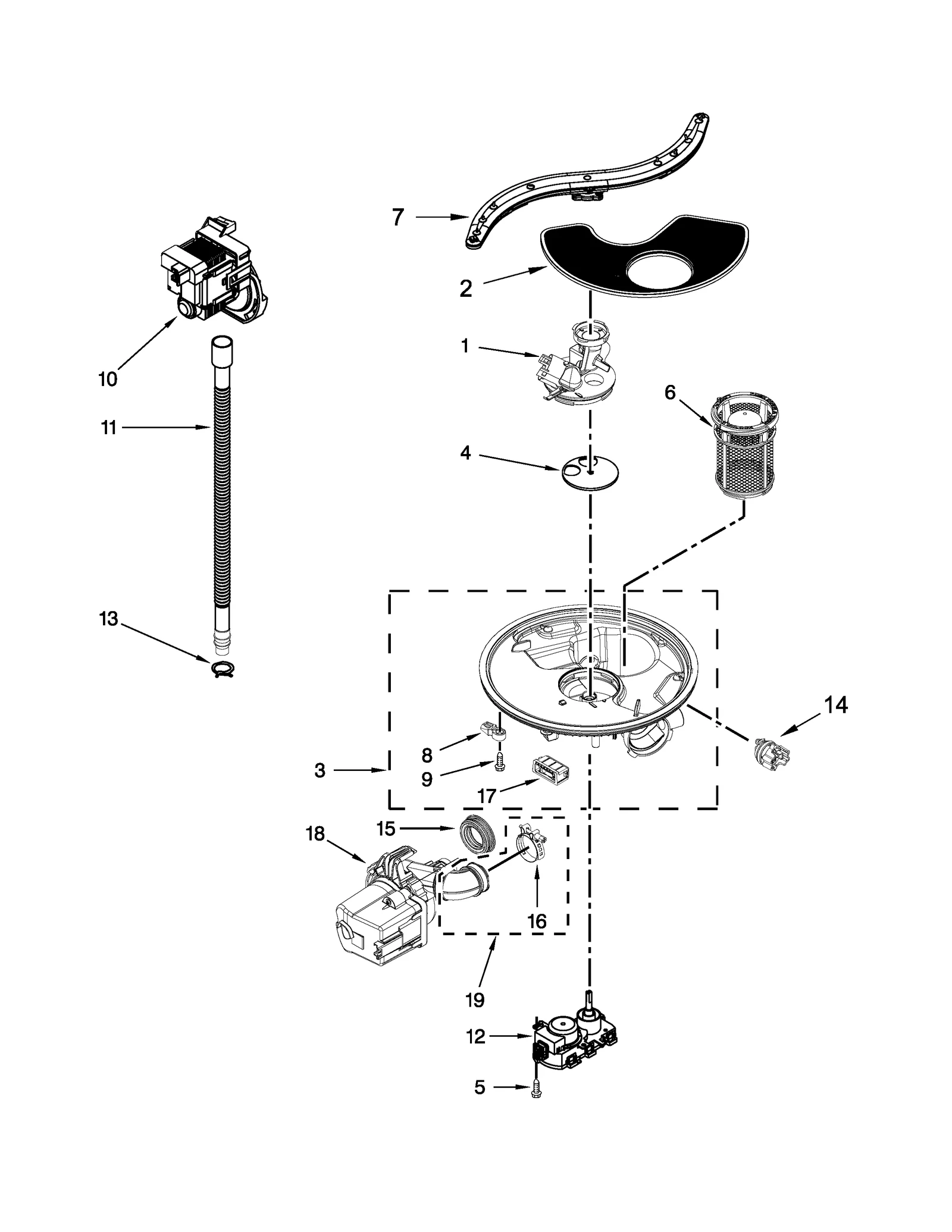

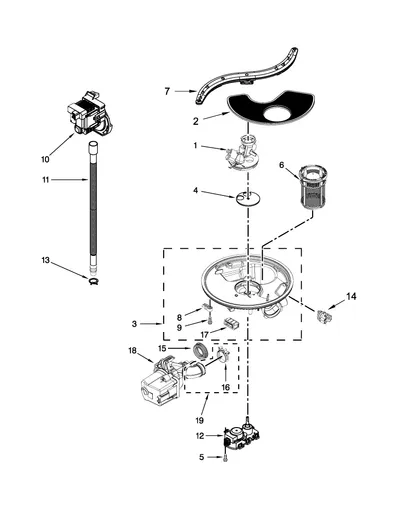

PUMP AND MOTOR PARTS
Parts in PUMP AND MOTOR PARTS
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10455272replaces W10455272 Cover | $35.85 Parts Dr |
| 2 |  | WPW10463906replaces W10463906 Dishwasher Filter | $12.38 Part Advantage |
| 3 |  | WPW10455268replaces W10455268 Dishwasher Sump and Seal Assembly | $72.65 Part Advantage |
| 4 |  | WPW10476221replaces W10476221 Dishwasher Pump Diverter Disc | $21.45 PartSelect |
| 5 |  | WP9741232replaces 9741232 Dishwasher Screw | $2.30 Part Advantage |
| 6 |  | W10872845replaces W10465378 Dishwasher Filter | $27.41 Part Advantage |
| 7 |  | WPW10491331replaces W10376691 Dishwasher Spray Arm | $43.89 Part Advantage |
| 8 |  | WPW10372113replaces W10372113 Dishwasher Sump Tab | $11.33 Parts Dr |
| 9 |  | WPW10348407replaces W10348407 Dishwasher Screw | $5.95 ApplianceParts Pro |
| 10 |  | WPW10348269replaces W10348269 Dishwasher Drain Pump | $33.13 Part Advantage |
| 11 |  | 8269144Areplaces 8269144 Dishwasher Drain Hose | $10.57 Part Advantage |
| 12 |  | W10537869replaces W10476222 Dishwasher Diverter Motor | $41.24 Part Advantage |
| 13 |  | WP596669replaces 371505 Clamp | $2.30 Part Advantage |
| 14 |  | WPW10705575replaces W10134017 Dishwasher Turbidity Sensor | $14.83 Part Advantage |
| 15 |  | WPW10538166replaces W10538166 Dishwasher Pump Grommet | $12.94 Part Advantage |
| 16 |  | W10488094replaces W10169166 Clamp | $56.34 ApplianceParts Pro |
| 17 |  | W11243394replaces W10195086 Dishwasher Sump Motor Isolator | $8.95 ApplianceParts Pro |
| 18 |  | W11032770replaces W10510667 Dishwasher Pump Motor Assembly | $137.07 Parts Dr |
| 19 |  | Dishwasher Circulation Pump-to-Sump Hose | $46.60 Part Advantage |
