Model
Kenmore 66513073K216
Dishwasher (Kenmore 66513073K216)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513073K216Dishwasher (Kenmore 66513073K216)
10 diagrams118 parts
Parts Sections (10)
Diagram

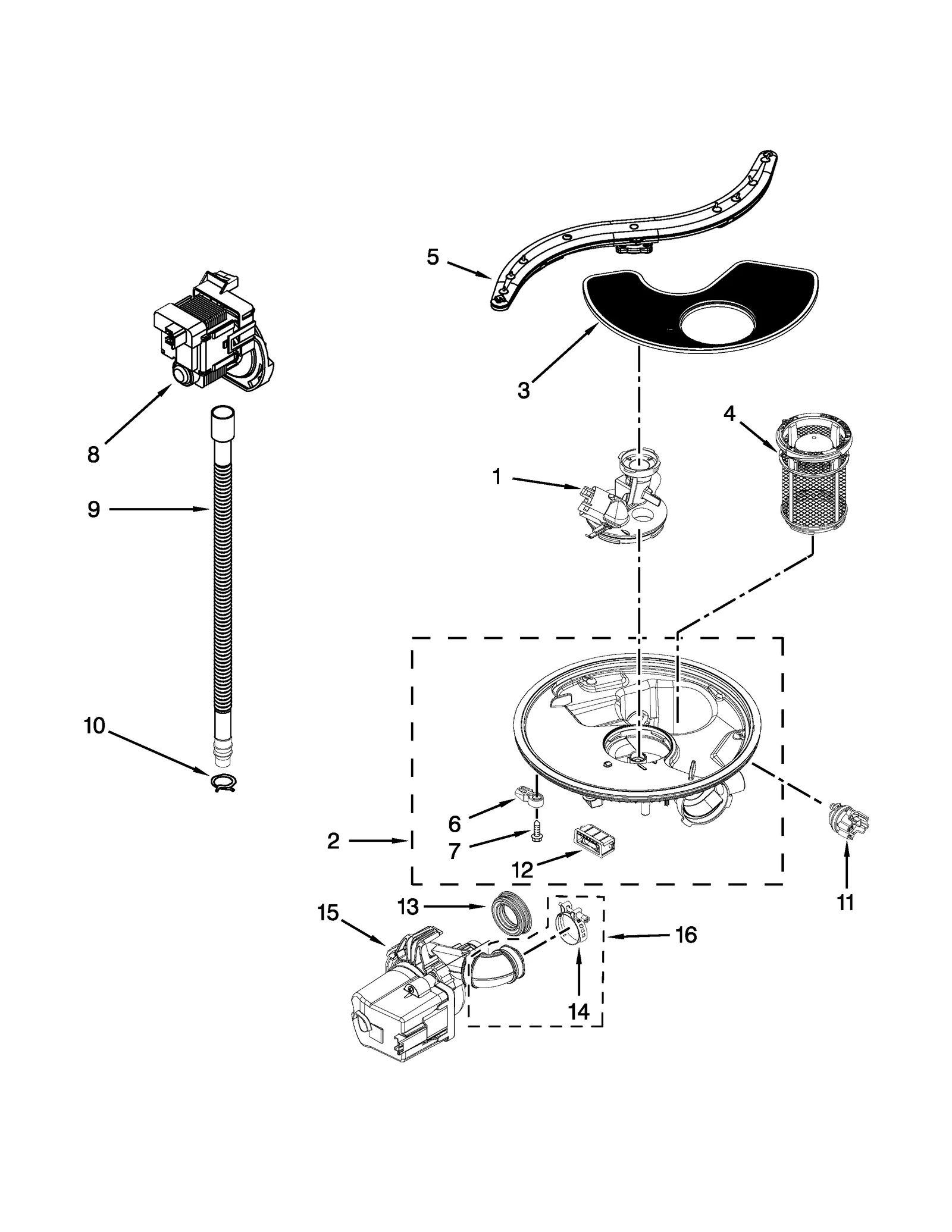

PUMP, WASHARM AND MOTOR PARTS
Parts in PUMP, WASHARM AND MOTOR PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | WPW10455271replaces W10455271 Cover | $10.94 Part Advantage |
| 2 |  | WPW10482462replaces W10482462 Dishwasher Sump and Seal Assembly | $99.18 Part Advantage |
| 3 |  | WPW10463906replaces W10463906 Dishwasher Filter | $12.38 Part Advantage |
| 4 |  | W10872845replaces W10693534 Dishwasher Filter Cup | $27.41 Part Advantage |
| 5 |  | WPW10491331replaces W10342793 Dishwasher Spray Arm | $43.89 Part Advantage |
| 6 |  | WPW10372113replaces W10372113 Dishwasher Sump Tab | $11.33 Parts Dr |
| 7 |  | WPW10348407replaces W10348407 Dishwasher Screw | $5.95 ApplianceParts Pro |
| 8 |  | WPW10348269replaces W10348269 Dishwasher Drain Pump | $33.13 Part Advantage |
| 9 |  | 8269144Areplaces 8269144 Dishwasher Drain Hose | $10.57 Part Advantage |
| 10 |  | WP8269146replaces 8269146 Dishwasher Hose Clamp | $9.57 ApplianceParts Pro |
| 11 |  | WPW10705575replaces W10705575 Dishwasher Turbidity Sensor | $14.83 Part Advantage |
| 12 |  | W11243394replaces W10195086 Dishwasher Sump Motor Isolator | $8.95 ApplianceParts Pro |
| 13 |  | WPW10538166replaces W10538166 Dishwasher Pump Grommet | $12.94 Part Advantage |
| 14 |  | W10789434replaces W10169167 Dishwasher Hose Clamp | $5.34 Amazon |
| 15 |  | W11133712replaces W10529161 Dishwasher Pump Motor Assembly | $151.68 Part Advantage |
| 16 |  | Dishwasher Circulation Pump-to-Sump Hose | $46.60 Part Advantage |
