Model
Kenmore 66513202N412
Dishwasher (Kenmore 66513202N412)
Parts Sections (10)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelKenmore
66513202N412Dishwasher (Kenmore 66513202N412)
10 diagrams155 parts
Parts Sections (10)
Diagram

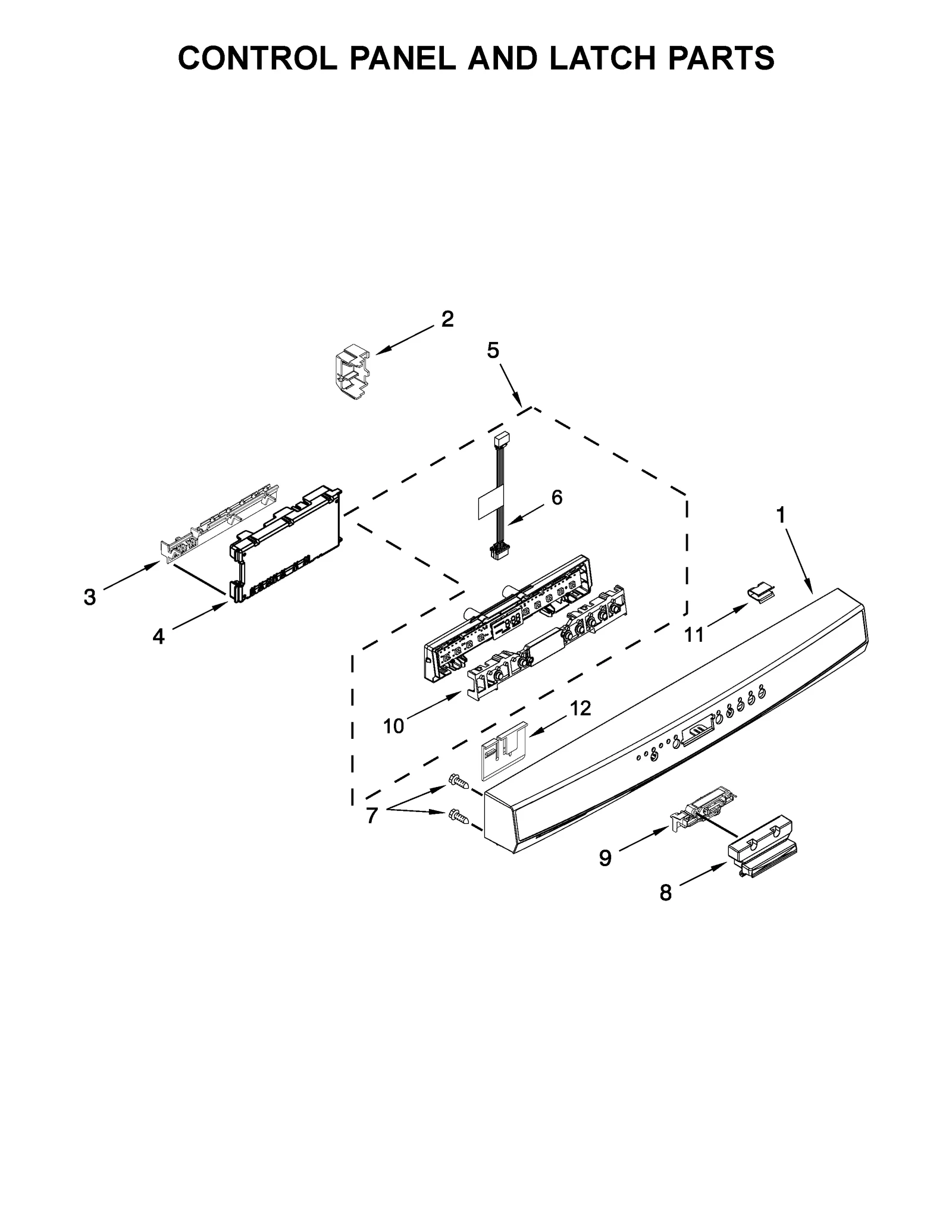

CONTROL PANEL AND LATCH PARTS
Parts in CONTROL PANEL AND LATCH PARTS
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 1 |  | W10605164replaces W10605154 Console Assembly (Black) | - |
| 1A |  | W10605165replaces W10605155 Console Assembly (White) | - |
| 1B | | W10605166replaces W10605156 Console Assembly (Off-White) | - |
| 2 |  | W10783730replaces W10756253 Dishwasher Control Board Connector Cover | $18.88 RepairClinic |
| 3 |  | WPW10194937replaces W10194937 Dishwasher Control Board Connector Bracket | - |
| 4 |  | W10854233replaces W10839431 Ctrl-sky-n15 | $210.49 RepairClinic |

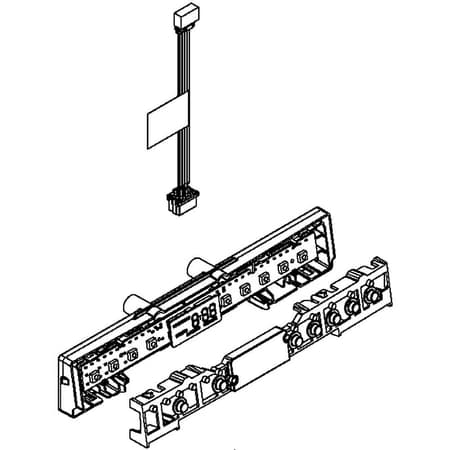

| 5 |  | Dishwasher User Interface | $144.99 Parts Dr |
| 6 |  | W11028004replaces W10566903 Dishwasher User Interface Wire Harness | $7.97 Part Advantage |
| 7 | | W11232015replaces W10648588 Dishwasher Screw | $9.95 ApplianceParts Pro |
| 8 | | W11673298replaces W10313267 Dishwasher Door Handle | $35.34 Parts Dr |
| 8A |  | Dishwasher Door Handle | $33.03 Parts Dr |
| 8B |  | Handle (Off-White) | - |
| 9 |  | WPW10653840replaces W10574864 Dishwasher Door Latch | $12.94 Part Advantage |
| 10 | | Dishwasher User Interface Control Button Assembly | - |
| 11 |  | W10815836replaces W10485367 Dishwasher Control Panel Clip | $2.30 Part Advantage |
| 12 |  | W11256107replaces W10195237 Dishwasher Control Board Clip | $23.60 PartSelect |
